ABBINC AF580-30-11-70
MFG #AF580-30-11-70
SKU #4291416
$29455.56 per EA (1) / EA
Product description

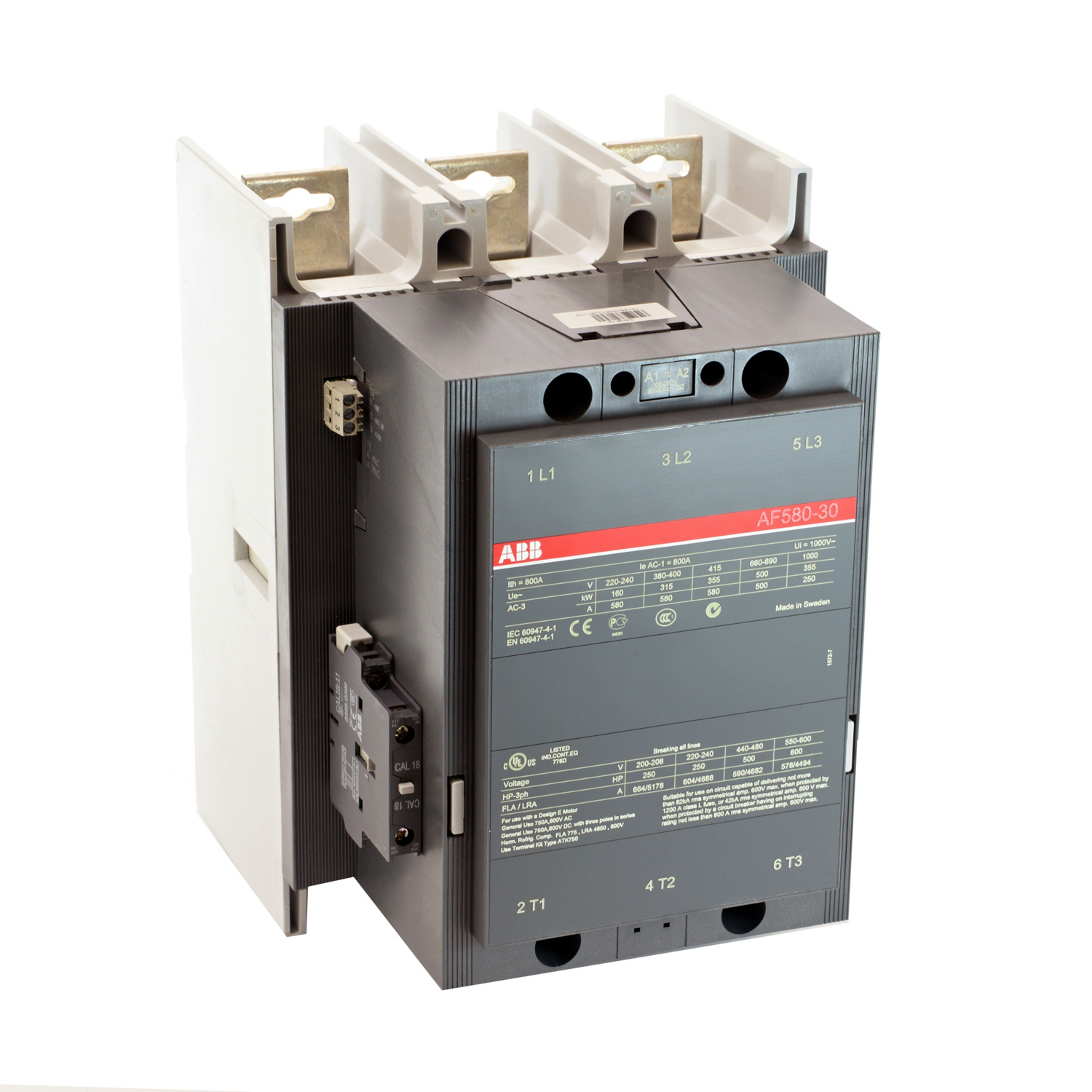

ABBINC AF580-30-11-70 AF580,3P CONTR,100-250V AC/DC
ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 750 A Maximum Load Current, 200 hp, 250 hp, 500 hp, 600 hp Coil, 3 Pole, 355/160/315/400/500 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 800 A at 1000 V Contact, AF580 Size, Screw Terminal, IP20/IP00 Enclosure, 3000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 210 mm W x 242 mm D x 283 mm H Dimensions
ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 750 A Maximum Load Current, 200 hp, 250 hp, 500 hp, 600 hp Coil, 3 Pole, 355/160/315/400/500 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 800 A at 1000 V Contact, AF580 Size, Screw Terminal, IP20/IP00 Enclosure, 3000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 210 mm W x 242 mm D x 283 mm H Dimensions
- For controlling single and 3 ph motors and switching power circuits
- ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 750 A Maximum Load Current, 200 hp, 250 hp, 500 hp, 600 hp Coil, 3 Pole, 355/160/315/400/500 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 800 A at 1000 V Contact, AF580 Size, Screw Terminal, IP20/IP00 Enclosure, 3000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 210 mm W x 242 mm D x 283 mm H Dimensions
- CONTACTOR L 100 TO 250VAC /VDC 750A 3NO
- Product Catalog Page(s)
Specification Sheet
- BAA Compliant|CB Certified|RoHS Compliant
- Brand: ABB IncApplication: Primarily for controlling single and three phase motors and switching power circuitsCoil Voltage: 100-250V AC/DCConnection: Screw TerminalContact Configuration: 1 NO and 1 NCCountry of Origin: SEOperating Temperature: -25 to +50 CPhase: 3Size: 210x283x242mmSpecial Features: Terminal type: Screw terminalsStandard: RoHSType: ContactorsWattage: 220/230/240/380/400/415/440/500 W
