BUSS CCP-2-30CC
MFG #CCP-2-30CC
UPC #05171215786
SKU #3755756
Product description

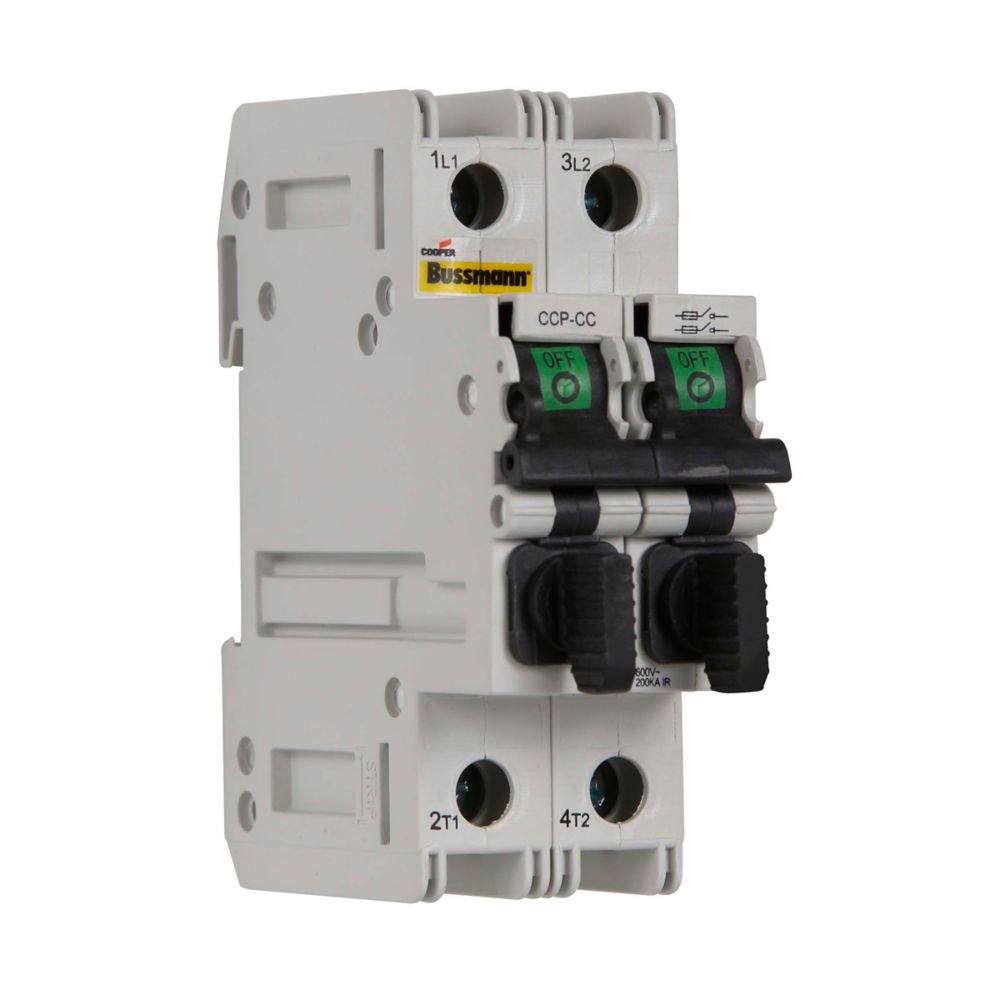

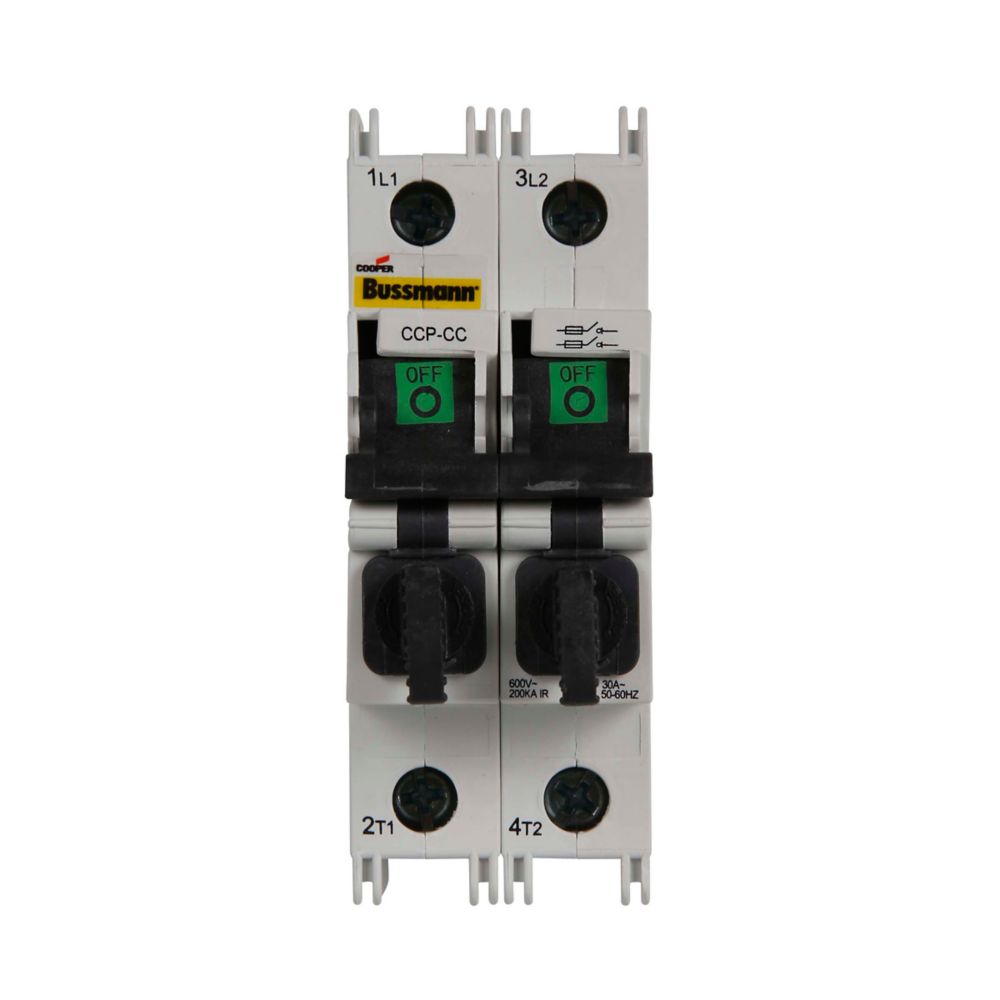

BUSS CCP-2-30CC COMPACK CIRCUIT PROTECTOR 2POLE CLASS CC
Bussmann Circuit Protector, Compact Fused, Series: CCP, 600 VAC, 30 A, 2 Pole, DIN Rail Mount, Padlocking Handle Operator, -20 to 75 deg C Operating, 2.1 in W, 3.7 in Height, 3.1 in D
Bussmann Circuit Protector, Compact Fused, Series: CCP, 600 VAC, 30 A, 2 Pole, DIN Rail Mount, Padlocking Handle Operator, -20 to 75 deg C Operating, 2.1 in W, 3.7 in Height, 3.1 in D
- Branch Circuit Disconnect and Branch Circuit Protection Applications
- Edison CUBEFuse Compact Circuit Protector, Series: CCP, 600 VAC, 30 A, 2 Pole, Class CC Fuse, 18 to 6 AWG Wire, Solid/Stranded Copper Wire, DIN Rail Mounting, -20 to 75 deg C Operating, 1.4 in Width, 3.7 in Height, 3.1 in Depth
- PROTECTOR CKT COMPACT 600VAC 30A 2 1.4IN
- UL 98, File No. E302370 Guide WHTY, cULus Listed|CSA 22.2 No. 4-04, 302370 Guide WHTY7|CE Certified|UL 94V0 Flammability Rated
- Product Catalog Page(s)
Specification Sheet
- Brand: BUSSMANNActuator: Padlockable HandleAmperage Rating: 30AApplication: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsConnection: Box Lug/SpadeCountry of Origin: MULMounting: 35 mm DIN railNumber of Poles: Two-poleOperating Temperature: -20 To 75 Deg CSize: 2.10 In Width X 3.10 In Depth X 3.70 In HeightSpecial Features: Power Rating 2 Hp at 240 V, Short Circuit Current Rating 200 kA, Fuse Type Class CCStandard: Contact Manufacturer,RoHS Compliant,Not ApplicableSub Brand: Bussmann SeriesType: UL98 fusible disconnectVoltage Rating: 600 Vac, 125 Vdc
