ABBINC S201-K6
MFG #S201-K6
UPC #01677950725
SKU #3982572
In Stock
$249.42 per EA (1) / EA
Product description

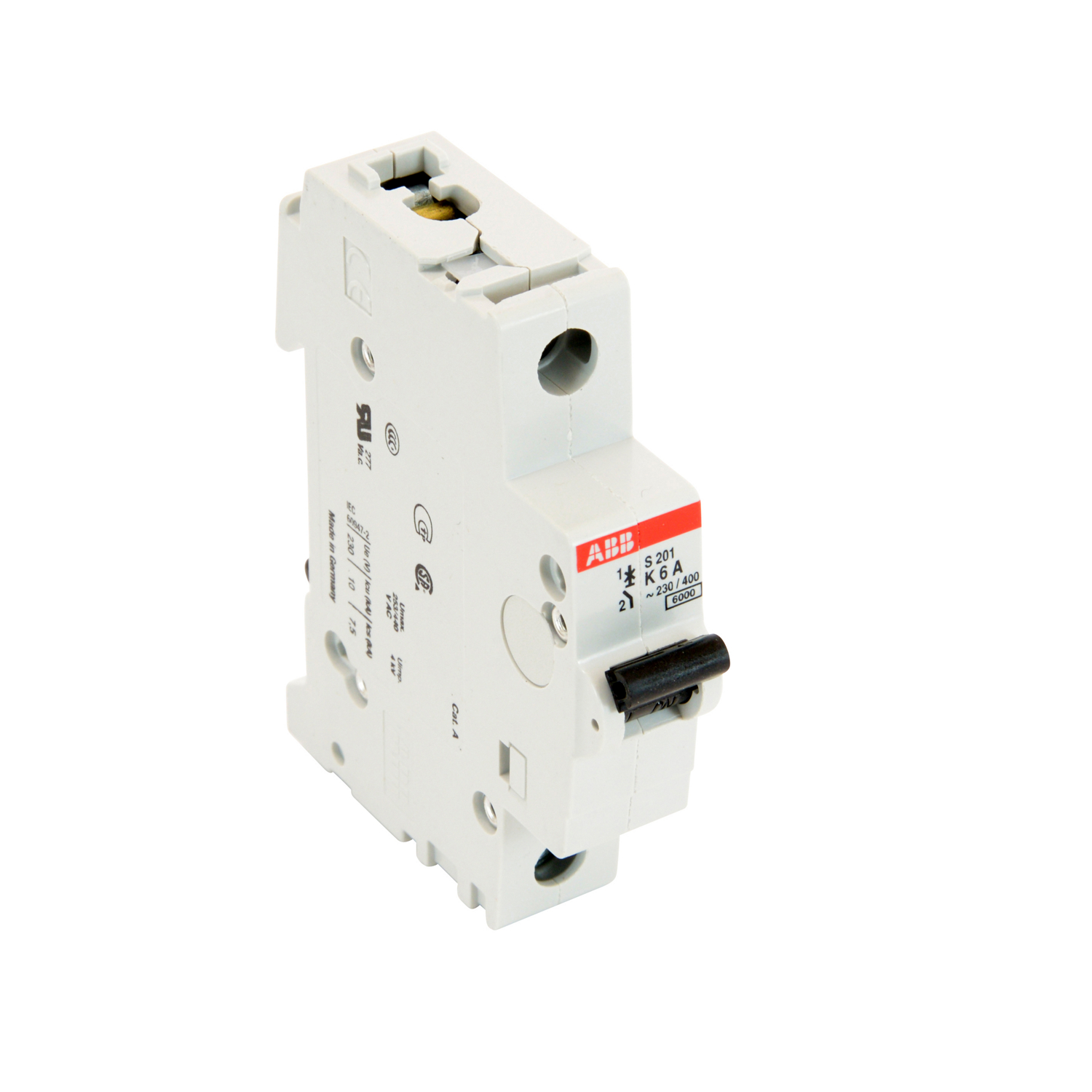

ABBINC S201-K6 1POLE 6AMP 408Y/277VAC MINITURE CIRCUIT BREAKER TRIP CURVE K UL 1077
ABB Miniature Circuit Breaker, High Performance, Series: S200, 277/480Y VAC, 60/110 VDC, 6 A, 1.9 W Power, 50/60 Hz Frequency, 6 kA Interrupt, Electro-Mechanic/K-Curve/Thermal Magnetic Trip, 1.13 to 1.45 A, 3 to 5 A Trip, 1 Pole, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 88 mm H Dimensions, Light Gray
ABB Miniature Circuit Breaker, High Performance, Series: S200, 277/480Y VAC, 60/110 VDC, 6 A, 1.9 W Power, 50/60 Hz Frequency, 6 kA Interrupt, Electro-Mechanic/K-Curve/Thermal Magnetic Trip, 1.13 to 1.45 A, 3 to 5 A Trip, 1 Pole, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 88 mm H Dimensions, Light Gray
- For allowing higher in-rush current during system start-up example motors and transformer applications
- ABB Miniature Circuit Breaker, High Performance, Series: S200, 277/480Y VAC, 60/110 VDC, 6 A, 1.9 W Power, 50/60 Hz Frequency, 6 kA Interrupt, Electro-Mechanic/K-Curve/Thermal Magnetic Trip, 1.13 to 1.45 A, 3 to 5 A Trip, 1 Pole, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 88 mm H Dimensions, Light Gray
- BREAKER CKT MINTR 6A 6KA 1 1.9W 50/60HZ
- Product Catalog Page(s)
Specification Sheet
- UL 1077|CSA C22.2 File No. 235|IEC 60898
- Brand: ABB IncActuator: Insulation Group II, Black, Sealable, I/O MarkingAmperage Rating: 6 AApplication: Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, TransformersAuxiliary Contacts: YesCountry of Origin: DEEnclosure: IP20, IP40 With CoverEnvironmental Conditions: Storage Temperature: -40 To 70 DEG CFrequency Rating: 50/60 HzHeight: 3.4646 inInterrupt Rating: 6 kALength: 69 mmMaterial: Insulation Group I, RAL 7035Number of Poles: 1Operating Temperature: -25 to +55 CSpecial Features: DIN Rail Mounting, Finger Safe and Multi-Function TerminalsStandard: UL 1077, CSA 22.2 No. 235, IEC 60898Sub Brand: System pro M compactTrip Range: KTrip Type: KType: High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit ProtectionVoltage Rating: 277/Y480 VAC, 60/110 VDCWidth: 0.689 in
