ONQ WP3475IV
MFG #WP3475IV
UPC #80442803667
SKU #4355622
Product description
ONQ WP3475IV CAT 5E QC A/B KEYSTONE CON IV (M10)

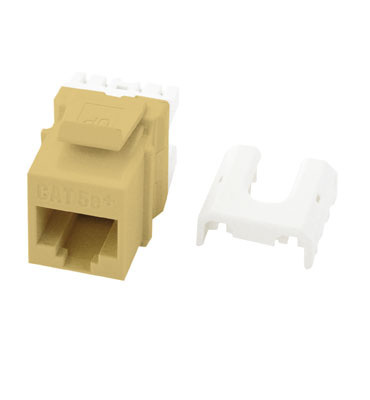

On-Q® Keystone Connector, Vertical Orientation, Cat 5e Module, Surface Mounting, Plastic, Ivory, 0.76 x 0.67 x 1.18 in
On-Q® Keystone Connector, Vertical Orientation, Cat 5e Module, Surface Mounting, Plastic, Ivory, 0.76 x 0.67 x 1.18 in
- Residential Applications
- On-Q® Keystone Connector, Vertical Orientation, Cat 5e Module, Surface Mounting, Plastic, Ivory, 0.76 x 0.67 x 1.18 in
- CONNECTOR KEYSTONE CAT 5E SURF PLSTC
- Product Catalog Page(s)
Specification Sheet
- RoHS Compliant|CAN/CSA C22.2 No. 182.4-1990|EIA/TIA-568A/B|TIA/EIA-568-B.2-1|ANSI/UL 1863|cULus Listed|UL94 V-0 Flammability Rating|ECCN EAR99
- Brand: ONQ TechnologiesApplication: ResidentialColor: IvoryConnection: RJ45 FemaleContact: Spring Wire: 50 microinches 24K Hard Gold over 70-100 microinches NickelContact Resistance: 20 (max, spring wire contact)Country of Origin: TWEnclosure: Housing Material: High Impact Flame Retardant PlasticEnvironmental Conditions: 0 to 93 (relative humidity, non-condensing)Finish: Smooth plasticInsertion Loss: 0.01 to 0.4 (typical)Insulation: Electrical Insulation Resistance: 500 (@ 100 VDC) m-OhmsMounting: Keystone OpeningSize: 0.76 x 0.67 x 1.18 (19.30 x 16.9 x 30) in (mm)Special Features: Quick Connect, Cat 5e, RJ45, Keystone connectorStandard: RoHS Compliant|CAN/CSA C22.2 No. 182.4-1990|EIA/TIA-568A/B|TIA/EIA-568-B.2-1|ANSI/UL 1863|cULus Listed|UL94 V-0 Flammability Rating|ECCN EAR99Sub Brand: Legrand-On-QTemperature Rating: 14 to 140 F (-10 to 60 C) degreesType: RJ45 Female Cat 5e Keystone InsertWithstand Voltage: Dielectric Withstand Voltage: 1000
