SIEM WB1400C
MFG #WB1400C
UPC #78364396730
SKU #3815854
Product description

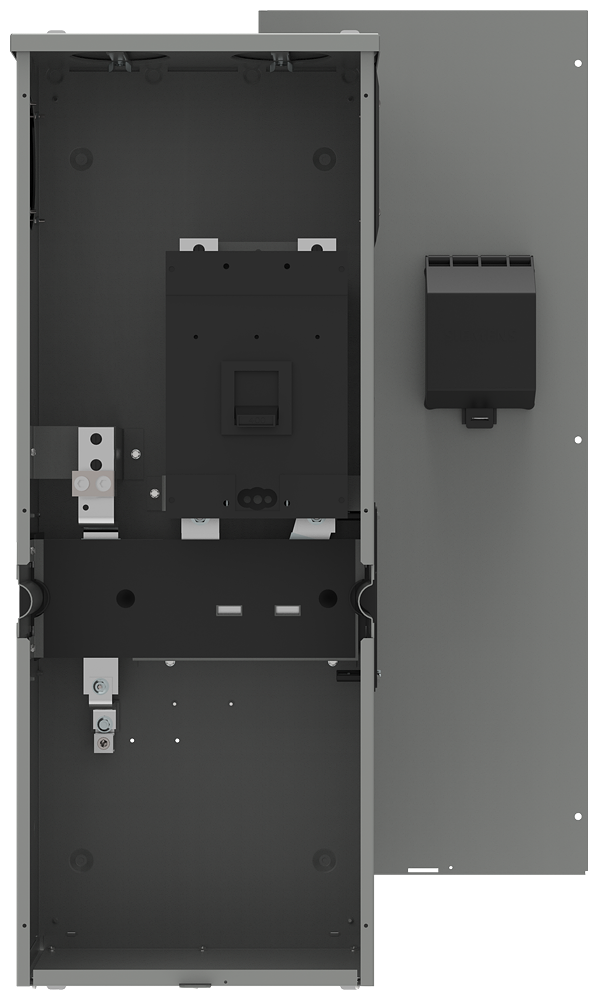

SIEM WB1400C 400A 1PH MAIN BREAKER METER STAK * Not Returnable per Mfg *
Siemens Murrayâ„¢ Main Circuit Breaker, 1-Phase, Series: WB Series, 120/240 VAC, 400 A, 1 Pole, 10 A Interrupt, JXD6 Breaker, Plug-In Breaker Mounting, 3-Wire Wiring Configuration, (2) 3/0 AWG to 500 kcmil, (2) 4/0 AWG to 500 kcmil Wire, Wall/Plug-In Mounting, NEMA 3R Enclosure, Galvanized Steel Housing Material, 5 in L x 5 in W x 4 in H Dimensions
Siemens Murrayâ„¢ Main Circuit Breaker, 1-Phase, Series: WB Series, 120/240 VAC, 400 A, 1 Pole, 10 A Interrupt, JXD6 Breaker, Plug-In Breaker Mounting, 3-Wire Wiring Configuration, (2) 3/0 AWG to 500 kcmil, (2) 4/0 AWG to 500 kcmil Wire, Wall/Plug-In Mounting, NEMA 3R Enclosure, Galvanized Steel Housing Material, 5 in L x 5 in W x 4 in H Dimensions
- Electrical Distribution Applications
- Siemens Murrayâ„¢ Main Circuit Breaker, 1-Phase, Series: WB Series, 120/240 VAC, 400 A, 1 Pole, 10 A Interrupt, JXD6 Breaker, Plug-In Breaker Mounting, 3-Wire Wiring Configuration, (2) 3/0 AWG to 500 kcmil, (2) 4/0 AWG to 500 kcmil Wire, Wall/Plug-In Mounting, NEMA 3R Enclosure, Galvanized Steel Housing Material, 5 in L x 5 in W x 4 in H Dimensions
- Externally accessible breaker handle with padlock capability
Compression lug landing pads
(2) 3/0 AWG to 500 kcmil copper, (2) 4/0 AWG to 500 kcmil aluminum wire
Shunt trip
- BREAKER CKT MAIN 120/240VAC 400A 1 10A
- Product Catalog Page(s)
Specification Sheet
- UL 489
- Brand: Siemens Energy (ITE)Amperage Rating: 65000 AApplication: MAINDISCONNECTFORMODULARMETERINGCable Entry: OVERHEAD OR UNDERGROUND FEEDConnection: MECHANICALLUGS/SIEMENSQuickConnectCountry of Origin: USCutout Size: 4"Enclosure: NEMA3RMounting: SURFACE/SIEMENSQuickRollPhase: 1Size: 14.000x18.000x42.000Special Features: INSTALLEDLINESIDELUGS(LK12500)WIRERANGE:3/0AWG-500KCMIL(CU)/4/0AWG-500KCMIL(AL)Standard: UL 489Sub Brand: POWERMODTerminal: 4X4 STUDSType: 400AJXD6FRAMEBREAKER(JXD63B400)INSTALLEDVoltage Rating: 120 V
