SUPP IH2-UNV-270-T8
MFG #IH2-UNV-270-T8
UPC #87218010604
SKU #3849428
Product description

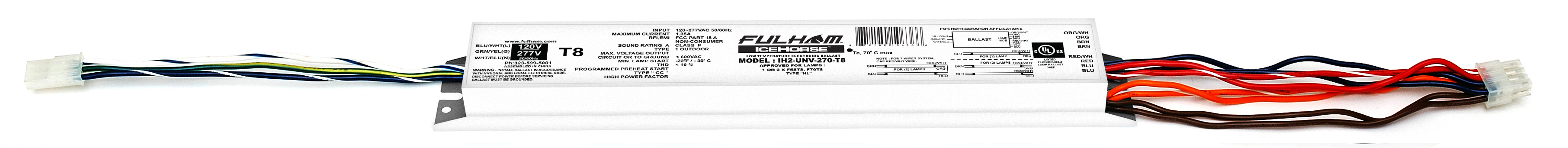

FULHAM IH2-UNV-270-T8 FULHAM BAL(1or2) F58T8/F70T8 120/277V
FULHAM® Electronic Fluorescent Ballast, Series: IceHorse 2, T8 Fluorescent Lamp, 70 W Lamp, 155 W Wattage, 120 to 277 VAC, 0.25 to 1.31 A, 50/60 Hz Frequency, Pre-Heat Programmed Start, -22 deg F Minimum Starting, Total Harmonic Distortion: <10 %, Power Factor: >0.98, 1/2 Lamps, Thermal Protection: Class P, Ballast Factor: 1, -22 deg F, Blue, 12 in L x 1.71 in W x 1 in H Dimensions
FULHAM® Electronic Fluorescent Ballast, Series: IceHorse 2, T8 Fluorescent Lamp, 70 W Lamp, 155 W Wattage, 120 to 277 VAC, 0.25 to 1.31 A, 50/60 Hz Frequency, Pre-Heat Programmed Start, -22 deg F Minimum Starting, Total Harmonic Distortion: <10 %, Power Factor: >0.98, 1/2 Lamps, Thermal Protection: Class P, Ballast Factor: 1, -22 deg F, Blue, 12 in L x 1.71 in W x 1 in H Dimensions
- Refrigerator Cases, Freezer Cases, Vending Machines, Coolers and Consistently Cold Outdoor Locations
- FULHAM® Electronic Fluorescent Ballast, Series: IceHorse 2, T8 Fluorescent Lamp, 70 W Lamp, 155 W Wattage, 120 to 277 VAC, 0.25 to 1.31 A, 50/60 Hz Frequency, Pre-Heat Programmed Start, -22 deg F Minimum Starting, Total Harmonic Distortion: <10 %, Power Factor: >0.98, 1/2 Lamps, Thermal Protection: Class P, Ballast Factor: 1, -22 deg F, Blue, 12 in L x 1.71 in W x 1 in H Dimensions
- BALLAST FLUOR ELEK T8 FLUOR 70W 1
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|cUL Listed|EMI FCC Part 18-A|UL Listed
- Brand: Supplies MiscApplication: Refrigerator Cases/ Freezer Cases/ Vending Machines/Coolers/Consistently cold Outdoor LocationsColor: BlueCountry of Origin: CHNFrequency Rating: 50/60 HzHeight: 1 INLength: 12 inMinimum Starting Temperature: -30°C (-22°F) C°/F°Mounting: 18' Remote MountableNumber of Lamps: 1 or 2Power Factor: >0.98Special Features: Adjust in cold Temp.Standard: UL/cULus Listed Type 1 OutdoorSub Brand: Ice HorseThermal Protection: Class PTotal Harmonic Distortion:Type: ElectronicVoltage Rating: 120-277 VWattage: 155 WWidth: 1.7 in
