SWC 61052301
MFG #61052301
UPC #03288602672
SKU #4115016
Product description
SWC 61052301 MC12/3SOL BNYWGY 12G AA 250C

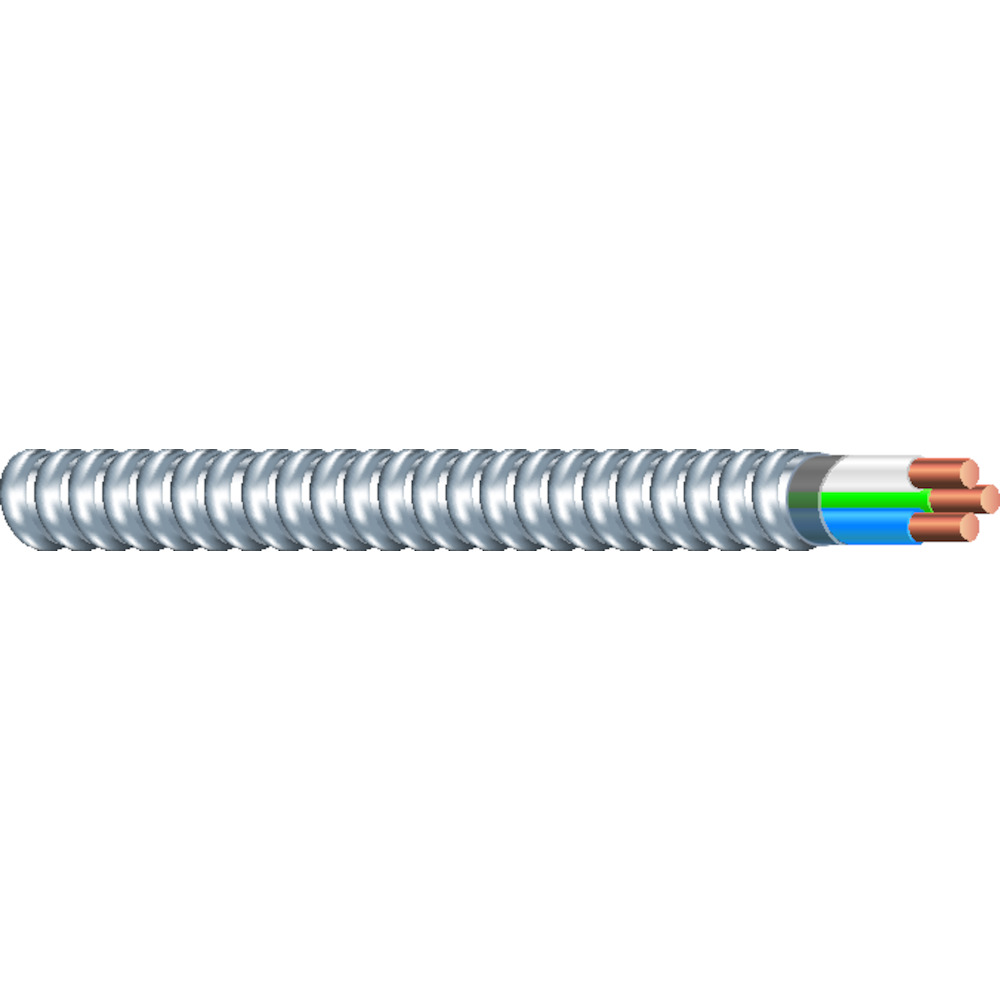

Southwire® Interlocked Armored Cable, Type MC, Coil Packaging, 600 VAC, 3 Conductors, Solid Copper Conductor, 12 AWG Conductor, 0.50478 in OD, 250 ft Length, Aluminum Jacket, Brown/Gray/Green/Yellow Jacket, 90 deg C
Southwire® Interlocked Armored Cable, Type MC, Coil Packaging, 600 VAC, 3 Conductors, Solid Copper Conductor, 12 AWG Conductor, 0.50478 in OD, 250 ft Length, Aluminum Jacket, Brown/Gray/Green/Yellow Jacket, 90 deg C
- For branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings, fished or embedded in plaster, concealed or exposed installations, installation in cable tray and approved raceways
- Southwire® Interlocked Armored Cable, Type MC, Coil Packaging, 600 VAC, 3 Conductors, Solid Copper Conductor, 12 AWG Conductor, 0.50478 in OD, 250 ft Length, Aluminum Jacket, Brown/Gray/Green/Yellow Jacket, 90 deg C
- CABLE ARMOR INTERLOCKED 600VAC 3 12AWG
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 83/1569/1063|NFPA 70|NEC Article 330|Federal Specification A-A59544|IEEE 1202
- Brand: Southwire CorpConductor Material: CUConductor Size: 12Country of Origin: USAInsulation Material: PVCLength: 250Number Of Conductors: 3Outside Diameter: 0.50478Standard: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 83/1569/1063|NFPA 70|NEC Article 330|Federal Specification A-A59544|IEEE 1202Strands: 1Sub Brand: ArmorliteType: MCVoltage Rating: 600VWeight w/UM: 32.215
