BURN YA292N
MFG #YA292N
UPC #78181050430
SKU #3737783
Product description
BURN YA292N 250 CU 2-HOLE LONG 1/2

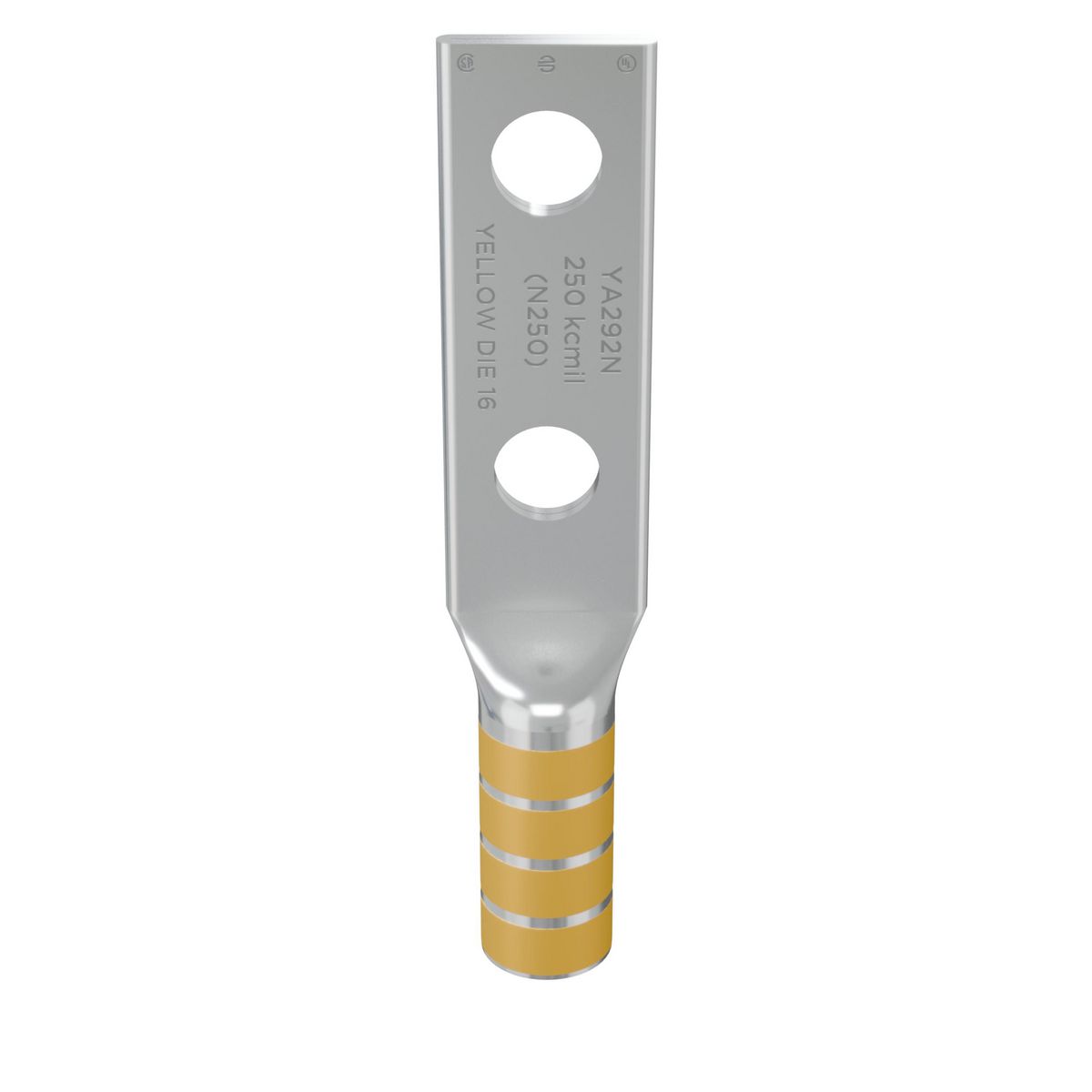

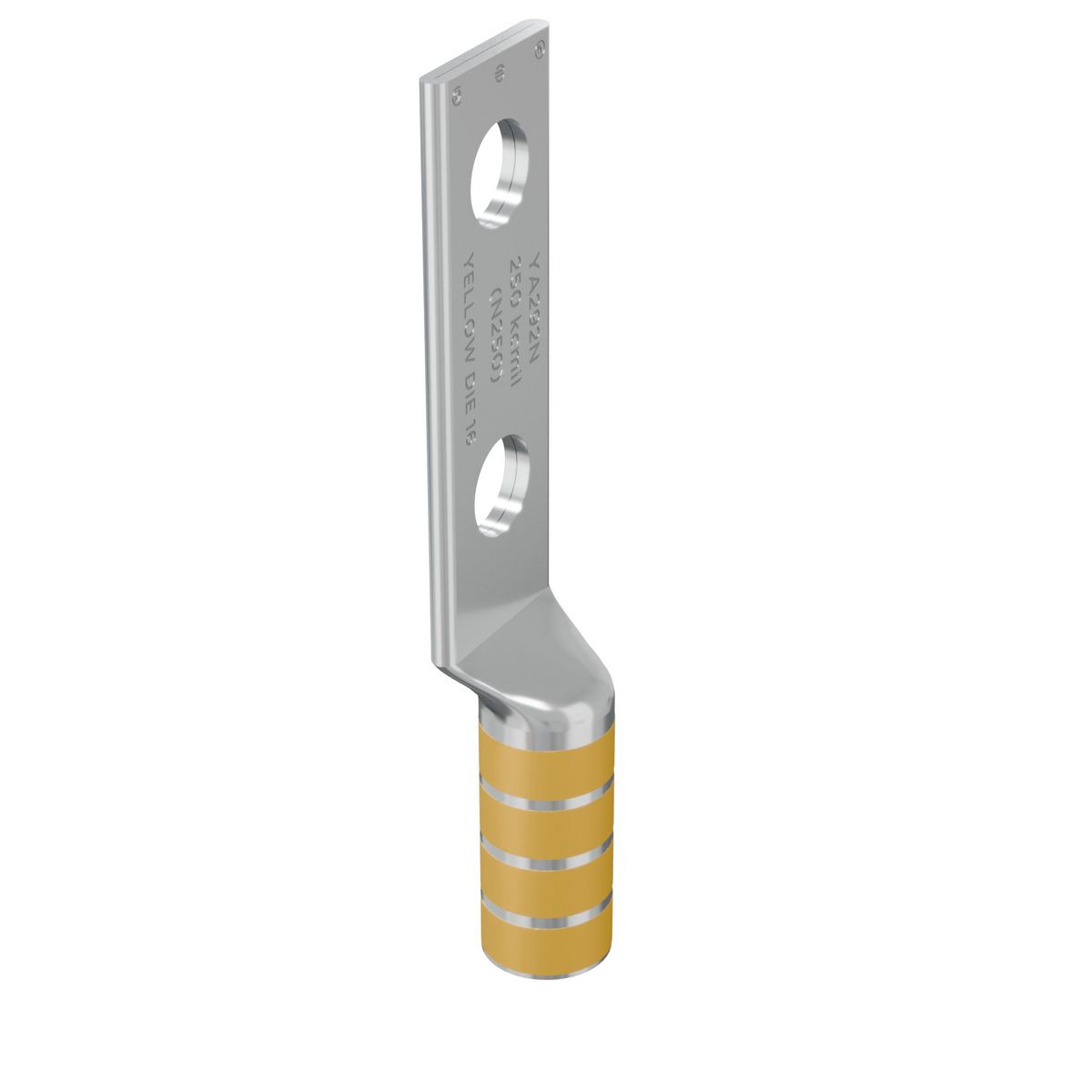

BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YA-2N, 250 kcmil Conductor, Die Code: 16, 600 VAC to 35 kV, 1/2 in Stud, Standard Tongue, 1.11 in W x 0.16 in THK Tongue, 5.21 in Overall Length, Chamfered/Long Barrel, 1.62 in L Barrel, 1.11 in Pad, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Yellow
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YA-2N, 250 kcmil Conductor, Die Code: 16, 600 VAC to 35 kV, 1/2 in Stud, Standard Tongue, 1.11 in W x 0.16 in THK Tongue, 5.21 in Overall Length, Chamfered/Long Barrel, 1.62 in L Barrel, 1.11 in Pad, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Yellow
- For code conductor
- BURNDY HYLUG Compression Lug, 2-Hole, Series: YA-2N, 250 kcmil Conductor, Die Code: 16, 600 VAC to 35 kV, 1/2 in Stud, Standard Tongue, 1.11 in W x 0.16 in THK Tongue, 5.21 in Overall Length, Chamfered/Long Barrel, 1.62 in L Barrel, 1.11 in Pad, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Yellow
- LUG COMPRESSION 250KCMIL 16 1/2IN STD
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 468A/468B|CSA Certified|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other rEPRoductive harm. For more information go to www.P65Warnings.ca.gov
- Brand: BurndyApplication: Wire TerminationCable Size: 250 kcmilCountry of Origin: USMaterial: CopperMounting: 1-3/4 IN Stud Hole SpacingNumber of Holes: 2Standard: UL 486A-486BStud Size: 0.5 inSub Brand: HYLUGType: Long Barrel, Tin PlatedVoltage Rating: 35 kV
