HUBW SNAP5362WA
MFG #SNAP5362WA
UPC #78358524770
SKU #3977719
Product description

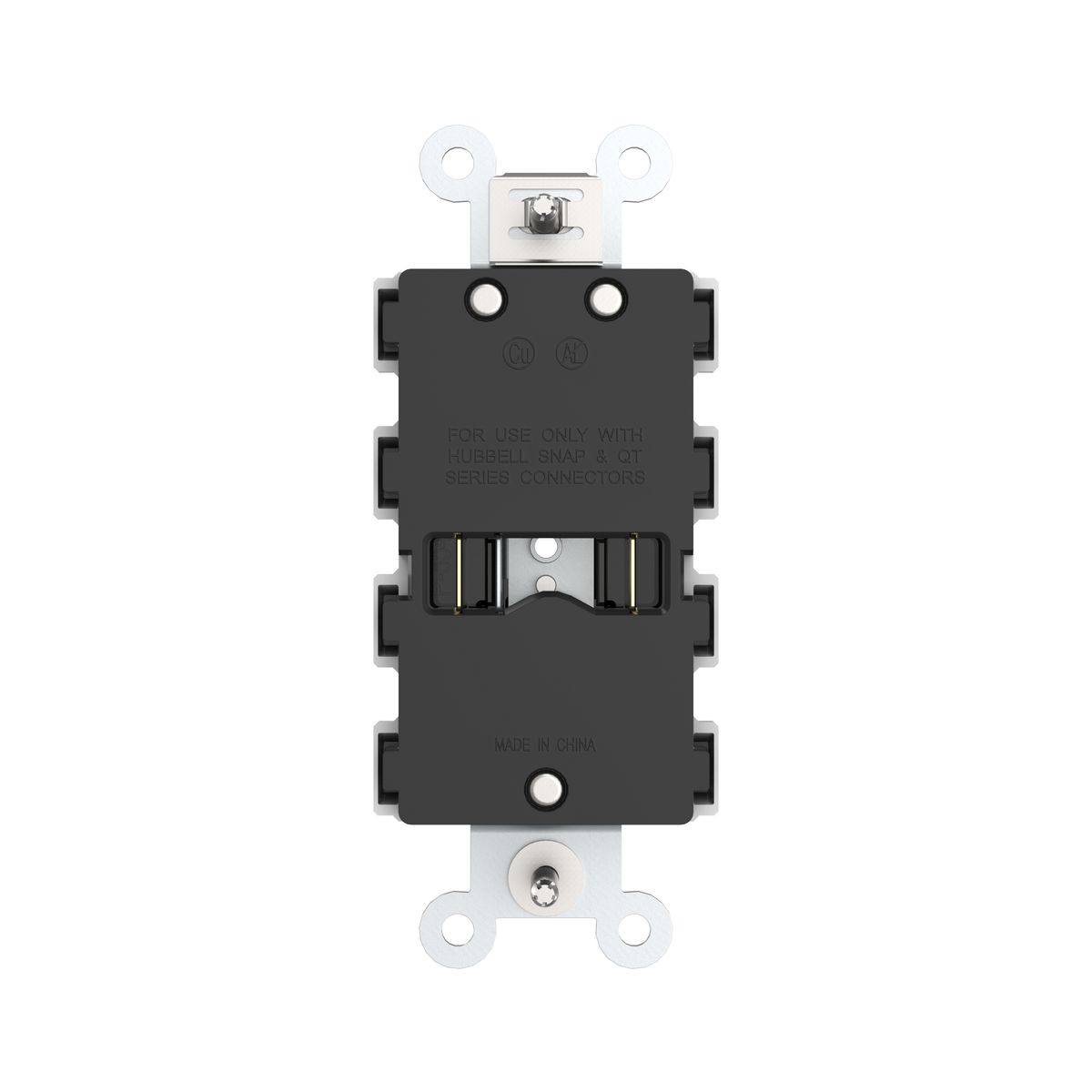

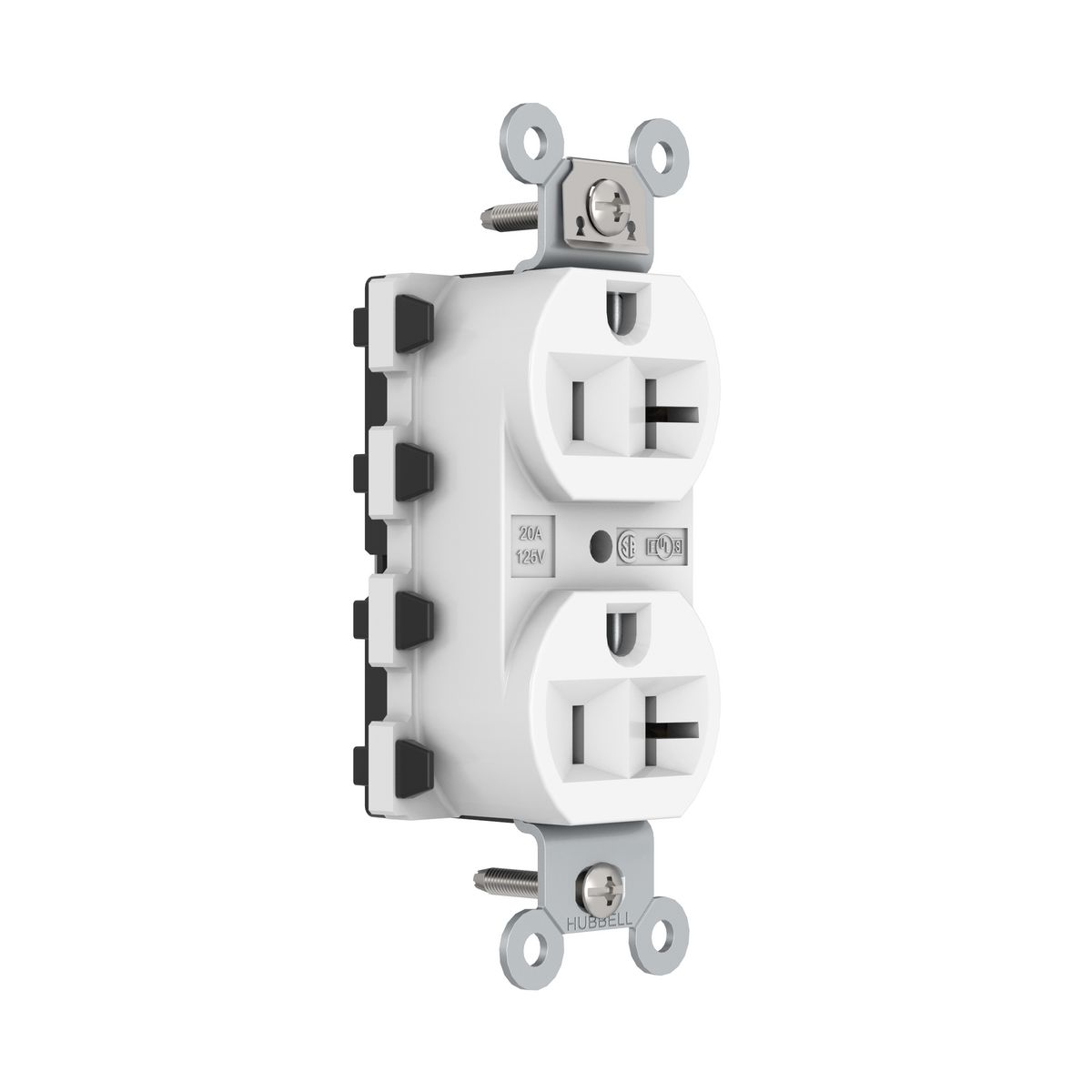

HUBW SNAP5362WA SNAP2CONNECT 20A/125V DPLX, WHITE
Wiring Device-Kellems SNAP Connect® StyleLine® Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Pre-Wire Terminal, Composite, White, 3.28 in H x 1.56 in W x 0.86 in D Dimensions
Wiring Device-Kellems SNAP Connect® StyleLine® Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Pre-Wire Terminal, Composite, White, 3.28 in H x 1.56 in W x 0.86 in D Dimensions
- Indoor Dry Environment
- Wiring Device-Kellems SNAP Connect® StyleLine® Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Pre-Wire Terminal, Composite, White, 3.28 in H x 1.56 in W x 0.86 in D Dimensions
- RECEPTACLE BL STR 125VAC 20A 2 3 WHT 1HP
- Product Catalog Page(s)
MSDS
Specification Sheet
- UL 498|CSA C22.2 No. 42 File No. 285|Federal Specification W-C-596|UL94 V-2 Flammability Rating
- Brand: Hubbell Wiring DevicesAmperage Rating: 20 AApplication: Extra Heavy Duty Specification GradeColor: WhiteConnection: Pre-Wired ConnectorCountry of Origin: CNDielectric Strength: Withstands 2,000V minimumEnvironmental Conditions: Indoor Dry Unless Protected By Additional MeansInsulation: Insulated per ULMaterial: NylonMounting: Mounting ScrewNEMA Rating: 5-20RNumber of Poles: 2-PoleNumber Of Wires: 3-WirePhase: Single PhaseSize: 3.28 in x 1.64 in x 1.1 inSpecial Features: Quick Connect- SNAPConnect®Standard: Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186Sub Brand: Straight Blade ReceptaclesTemperature Rating: -40 Degrees C to 75 Degrees CType: Standard DuplexVoltage Rating: 125 VWattage: 2,500 WWire Size: #12 AWG
