GEDI TG4324R
MFG #TG4324R
UPC #78316400868
SKU #3807258
Product description
GE TG4324R 200AMP 240VAC 3POLE 4 WIRE FUSED NEMA3R GENERAL DUTY SAFETY SWITCH
GE Spec-Setterâ„¢ Safety Switch, Fusible General Duty, Series: TG Series, 240 VAC, 200 A, 15 hp Standard Fuse/15 hp Time Delay, 1 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 28.78 in H x 13.4 in W x 5.3 in D Dimensions, Steel
GE Spec-Setterâ„¢ Safety Switch, Fusible General Duty, Series: TG Series, 240 VAC, 200 A, 15 hp Standard Fuse/15 hp Time Delay, 1 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 28.78 in H x 13.4 in W x 5.3 in D Dimensions, Steel
- Residential, Light Commercial, Electrical Distribution and Control Applications
- GE Spec-Setterâ„¢ Safety Switch, Fusible General Duty, Series: TG Series, 240 VAC, 200 A, 15 hp Standard Fuse/15 hp Time Delay, 1 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 28.78 in H x 13.4 in W x 5.3 in D Dimensions, Steel
- Self-leveling, 3-point mounting system
Integral cover interlock

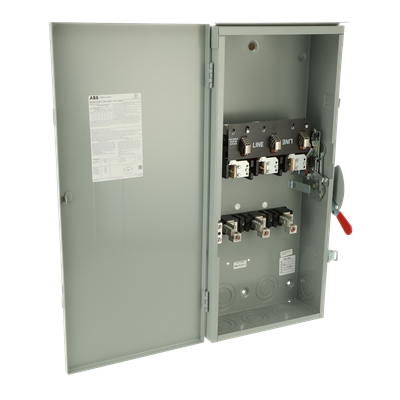

Visible confirmation of plated blade contact positions
Spring reinforced fuse clips assure reliable contact for cool operation
Suitable for class H, K, J or R fuses, where applicable
UL listed short circuit rating is 10000 rms symmetrical amps standard
With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
UL listed as service entrance equipment when installed in accordance with the national electric code
- SWITCH SAF 240VAC 200A 3 1 50/60HZ 4 HDL
- Product Catalog Page(s)
Specification Sheet
- UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic Certified
- Brand: Industrial Conn & Solutions (GE)Amperage Rating: 200AApplication: GeneralCountry of Origin: UKNEnclosure: NEMA 3R (Outdoor)Number of Poles: 3Size: 28.78 inStandard: UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic CertifiedSub Brand: GE Industrial SolutionType: Safety switchVoltage Rating: 240 AC
