OCAL HUB1-G
MFG #HUB1-G
SKU #2577833
$133.09 per EA (1) / EA
16 in Stock. More available 04/30/2024 and 05/17/2024
Stock Item
Product description

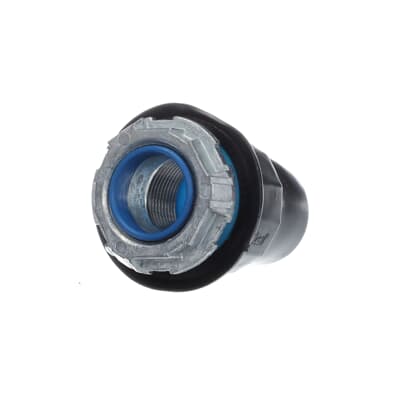

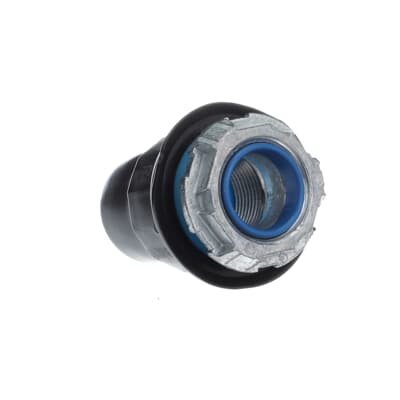

OCAL HUB1-G 1" PVC COATED HUB GRAY ALUM
Ocal Ocal-Blue Knockout Hub Connector, 1 in Size, For Use With: Conduit Body and Fitting, Zinc, Dark Gray, PVC Coated, 2 in OD x 1.81 in H Dimensions
Ocal Ocal-Blue Knockout Hub Connector, 1 in Size, For Use With: Conduit Body and Fitting, Zinc, Dark Gray, PVC Coated, 2 in OD x 1.81 in H Dimensions
- For used to positively bond conduit to box or enclosure
- Ocal Ocal-Blue Knockout Hub Connector, 1 in Size, For Use With: Conduit Body and Fitting, Zinc, Dark Gray, PVC Coated, 2 in OD x 1.81 in H Dimensions
- Hexagonal/splined body and locknut enables fast and easy installation
Sharper and deeper teeth provide a more penetrating bite for improved bonding to the enclosure
Zinc or copper-free aluminum with a nominal 0.04 in PVC coating bonded to exterior - in blue, white, gray or custom colors
Pressure sealing sleeves protect connections
Nitrile (Buna-N) sealing ring
1 in dia throat
1/4 in THK maximum panel
105 deg C temperature
1 in pipe
- CONNECTOR HUB KO 1IN ZINC PVC CTD
- Product Catalog Page(s)
Specification Sheet
- CSA Certified
- Brand: Ocal PVC Coated ConduitApplication: To Positively Bond Conduit to Box or EnclosureColor: Dark GrayCountry of Origin: USMaterial: PVC Coated ZincSize: 1 Inch/27mmSpecial Features: Hexagonal/Splined Body and Locknut Enables Fast and Easy InstallationStandard: CSATemperature Rating: 105 CTrade Size: 1 inType: Hub ConnectorIDW2 Image1 URL: https://ideadigitalasset.com/DAMRoot/Original/12196/12056_H3IYSLDO0BTZP4JU.jpg
