ELWR C5775.41.01
MFG #C5775.41.01
SKU #3471380
$145.00 per M (1000) / FT
43957 in Stock. More available 05/27/2024
Stock Item
Product description

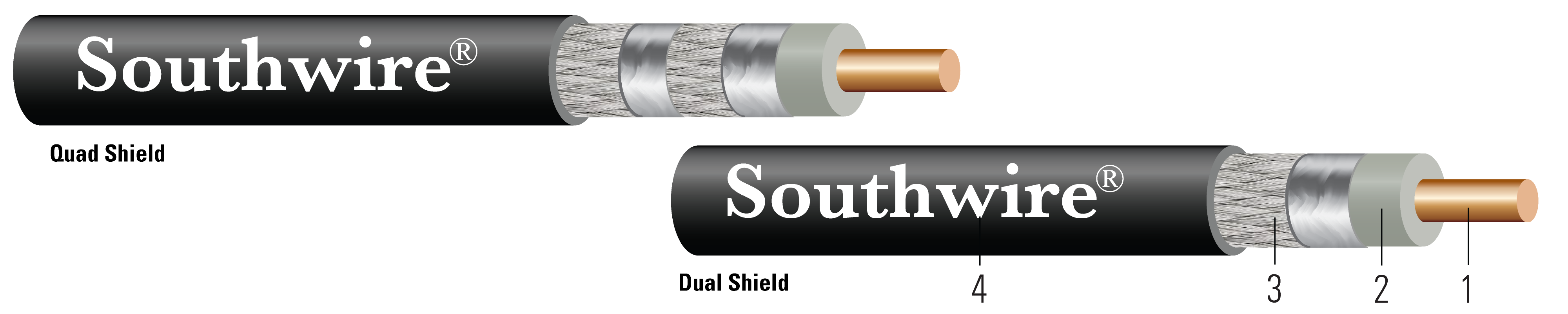

ELWR C5775.41.01 RG6/U REEL CSS COAX DUAL SHIELD CM CL2 CATV 75OHM PVC BLACK 1000' 50031008
Southwire SIGNAL Coaxial Cable, Type RG6 Non-Plenum, 150 VAC, 3 GHz Frequency, 1 Conductors, Copper Clad Steel Conductor, 18 AWG Conductor, 0.269 in OD, 1000 ft Length, 30.41 Ohm Resistance, 17 pF Capacitance, 75 Ohm Impedance, 0.8 to 14.61 dB Attenuation, PVC Jacket, CATV/CM Jacket Rating Code, Dual Shield Shield, Black, 60 deg C
Southwire SIGNAL Coaxial Cable, Type RG6 Non-Plenum, 150 VAC, 3 GHz Frequency, 1 Conductors, Copper Clad Steel Conductor, 18 AWG Conductor, 0.269 in OD, 1000 ft Length, 30.41 Ohm Resistance, 17 pF Capacitance, 75 Ohm Impedance, 0.8 to 14.61 dB Attenuation, PVC Jacket, CATV/CM Jacket Rating Code, Dual Shield Shield, Black, 60 deg C
- CATV Applications
- Southwire SIGNAL Coaxial Cable, Type RG6 Non-Plenum, 150 VAC, 3 GHz Frequency, 1 Conductors, Copper Clad Steel Conductor, 18 AWG Conductor, 0.269 in OD, 1000 ft Length, 30.41 Ohm Resistance, 17 pF Capacitance, 75 Ohm Impedance, 0.8 to 14.61 dB Attenuation, PVC Jacket, CATV/CM Jacket Rating Code, Dual Shield Shield, Black, 60 deg C
- CABLE COAXIAL 150VAC 1 18AWG 1000FT 3GHZ
- Product Catalog Page(s)
Specification Sheet
- RoHS Compliant|ETL Listed|NEC Article 725|820|UL 444
- Brand: Electronic WireApplication: CATVArmour: NoneAttenuation: 14.61Braid: AlumCapacitance: 17Capacity: 17Color: BlackConductor Material: CCSConductor Size: 18Construction: COAXCore: COAXCountry of Origin: MULFrequency Rating: 3GHzImpedance: 75Insulation Material: FPEJacket Material: PVCLength: 1000Number Of Conductors: 1Shield: DualSpecial Features: CATVStandard: UL 444Sub Brand: SIGNALTemperature Rating: 60Type: CMVelocity Factor: 81Voltage Rating: 150Weight w/UM: 1
