PS 1597TRLA
MFG #1597TRLA
UPC #78500703579
SKU #4073076
271 in Stock
Stock Item
More available 09/03/2026
$26.00/EA
Product description

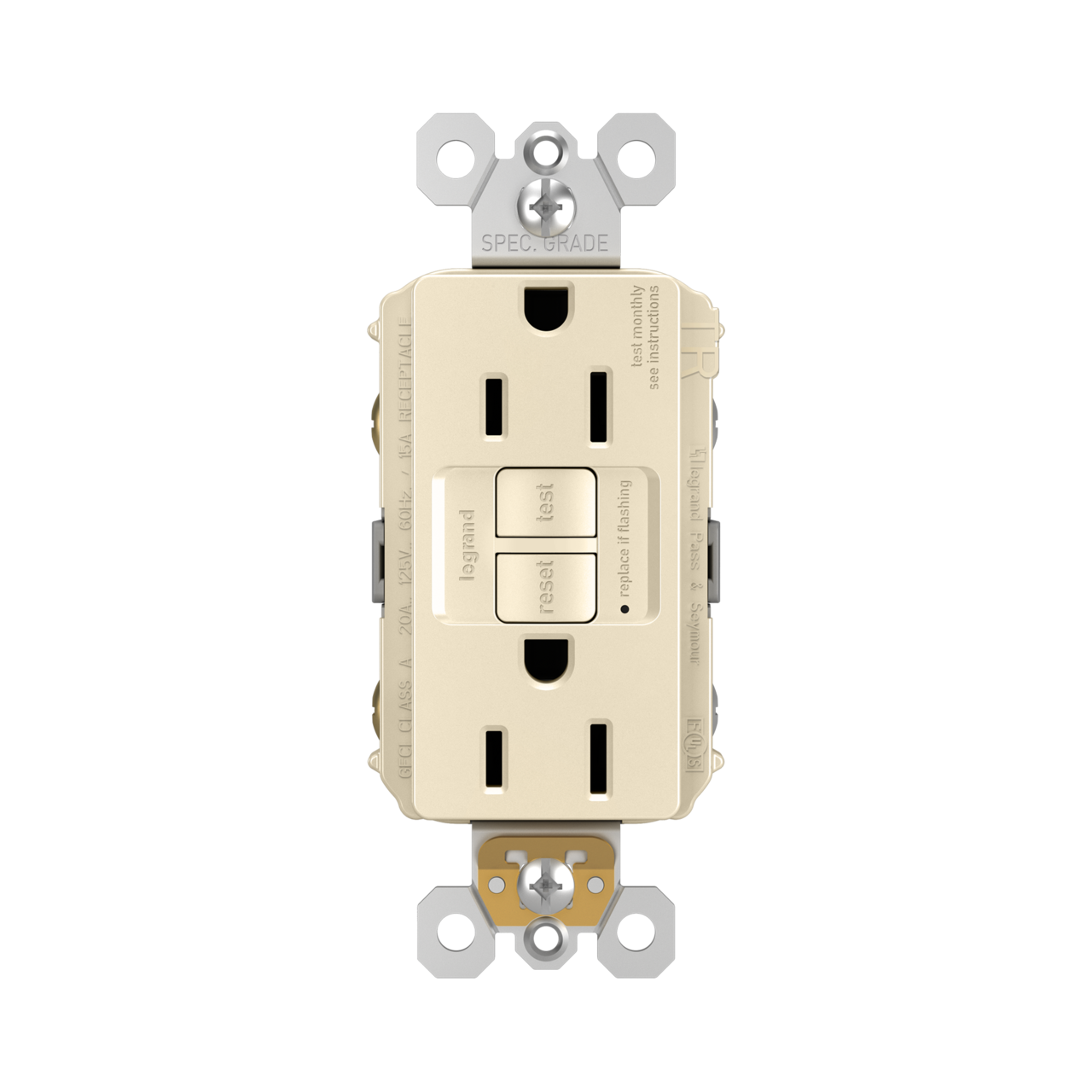

PS 1597TRLA 15AMP LIGHT ALMOND 125VAC NEMA5-15R 2POLE 3WIRE BACK/SIDE WIRED DUPLEX GFCI TAMPER RESISTANT RECEPTACLE SPECIFICATION GRADE
Pass & Seymour® Radiant® GFCI Receptacle, Duplex Self-Test Tamper-Resistant, Series: 1597TR, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
Pass & Seymour® Radiant® GFCI Receptacle, Duplex Self-Test Tamper-Resistant, Series: 1597TR, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling, Commercial and Residential Applications
- Pass & Seymour® Radiant® GFCI Receptacle, Duplex Self-Test Tamper-Resistant, Series: 1597TR, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- RECEPTACLE GFCI 125VAC 15A 2 3 LT ALMOND
- Product Catalog Page(s)
Specification Sheet
- FULs Listed|NEC Certified|UL 498|UL 94 V-2 Flammability Rated|UL Listed
- Brand: Pass & Seymour LegrandActuator: Control CircuitAmperage Rating: 15Application: Commercial/ResidentialConnection: Back and Side WireCountry of Origin: CNEnvironmental Conditions: 95% Humidity, UL 94 V2Frequency Rating: 60 HzHeight: 4.2Interrupt Rating: 4 to 6 mALength: 1.03Material: ThermoplaticNEMA Rating: 15ANumber of Poles: Double PoleNumber Of Wires: 3Operating Temperature: -35°C to +66°CSpecial Features: Spec GradeStandard: UL, CULUS, cULus, UL Listed, FSULSub Brand: radiantTrip Range: 4 to 6 mATrip Type: .025 Second NominalType: OutletVoltage Rating: 125Width: 1.73
