PS TM870-WSL
MFG #TM870-WSL
UPC #78500724553
SKU #2066516
5 in Stock
Special Order Item. Minimum purchase may be required.
More available 05/07/2026
$11.16/EA
Product description

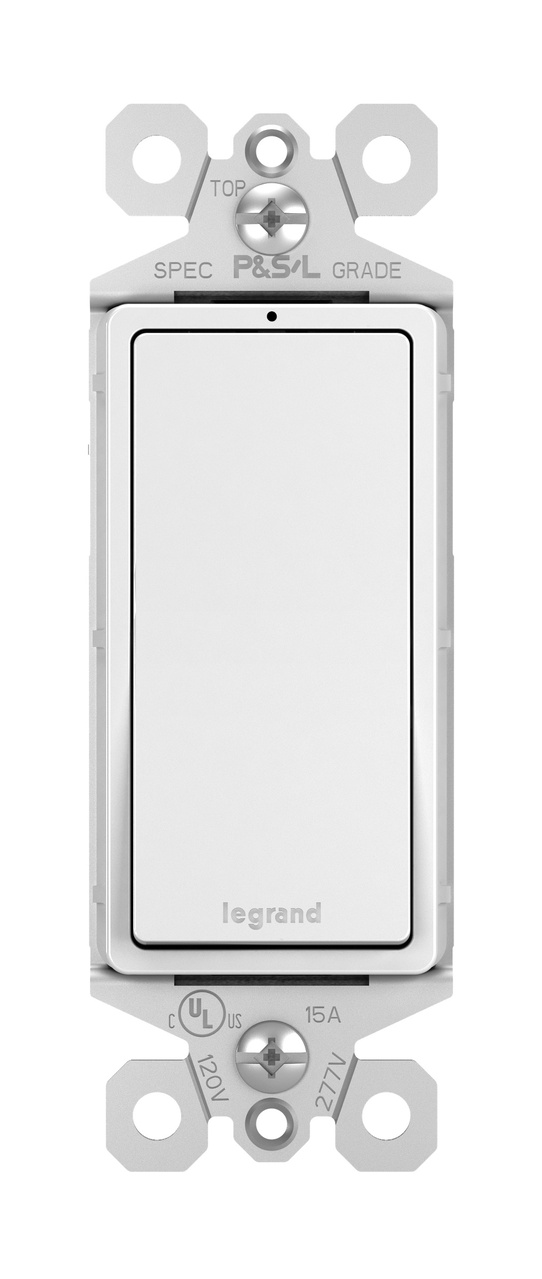

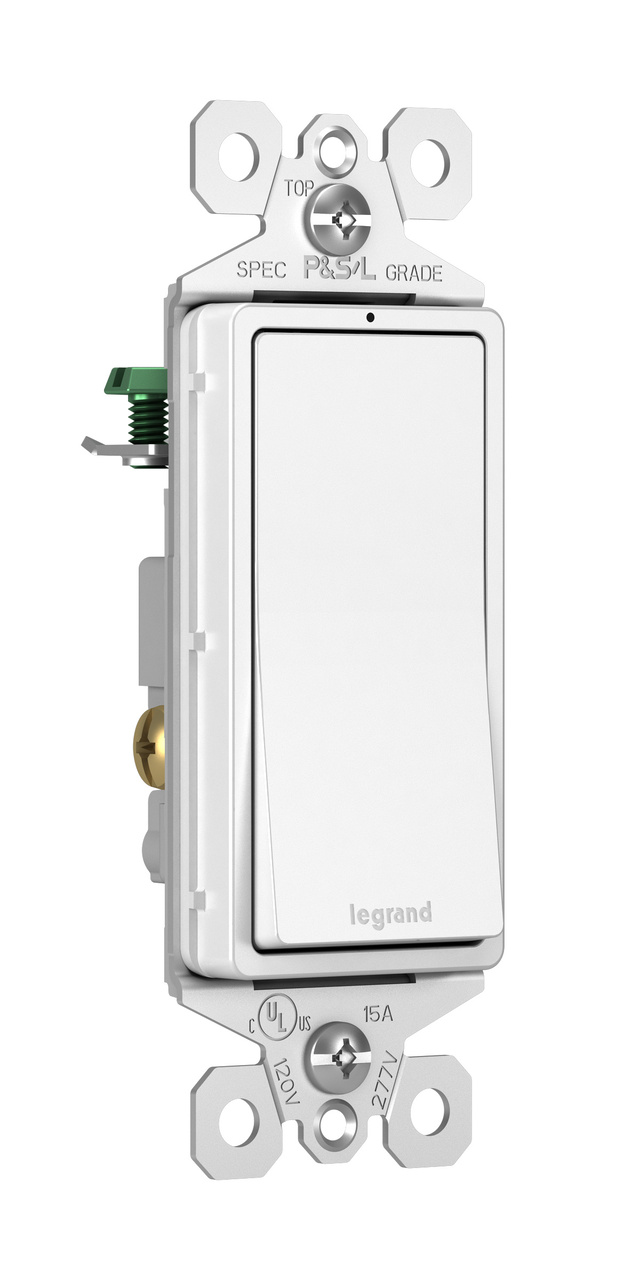

PS TM870-WSL DECOR SW 1P 15A 120V ILLUM W/GRD
Pass & Seymour® TradeMaster® radiant® Decorator Switch, 1-Gang Illuminated, 120 VAC, 15 A, 1 Pole, Paddle/Rocker Actuator, Thread Connection, Wall Mounting, Thermoplastic, White, 4.19 in H x 1.43 in W x 1.27 in D Dimensions
Pass & Seymour® TradeMaster® radiant® Decorator Switch, 1-Gang Illuminated, 120 VAC, 15 A, 1 Pole, Paddle/Rocker Actuator, Thread Connection, Wall Mounting, Thermoplastic, White, 4.19 in H x 1.43 in W x 1.27 in D Dimensions
- Commercial and Residential Applications
- Pass & Seymour® TradeMaster® radiant® Decorator Switch, 1-Gang Illuminated, 120 VAC, 15 A, 1 Pole, Paddle/Rocker Actuator, Thread Connection, Wall Mounting, Thermoplastic, White, 4.19 in H x 1.43 in W x 1.27 in D Dimensions
- Smooth paddle action
High impact resistant, thermoplastic construction
External screw pressure plate back and side wired
14 AWG push wire size
Narrow back body leaves more room for wires in the box
Extra long, through body strap eliminates floating installations and imperfect applications
Easy access green hex head ground screw
Tri-drive ground, terminal and mounting screws
Designer style satin finish rocker
Self-grounding models provide automatic ground clip
Corrosion resistant, plated steel strap, tamper resistant, heavy duty
Impact resistant nylon face
1-gang
Vertical orientation
2 in THK
Accepts 12 and 14 AWG wire size
- SWITCH DECORATOR 120VAC 15A 1 PADDLE/RKR
- Product Catalog Page(s)
Specification Sheet
- CSA C22.2 No. 111 Certified|NEMA WD-1/WD-6|UL 498/20
- Brand: Pass & Seymour LegrandApplication: Residential/CommercialColor: WhiteContact Rating: 15 Amp, 120/125 VACCountry of Origin: CNGang: 1Insulation: NoneMaterial: ThermoplasticMounting: WallNumber of Poles: Single PoleOrientation: VerticalSize: 6.25""Special Features: Designer style satin finish rocker, push wire 14awg, narrow back bodyStandard: UL, CULUS, UL 20Sub Brand: radiantSwitch Type: PaddleThickness: 2"Type: Switch
