LITH TC20R
MFG #TC20R
UPC #66120900130
SKU #3840288
Product description

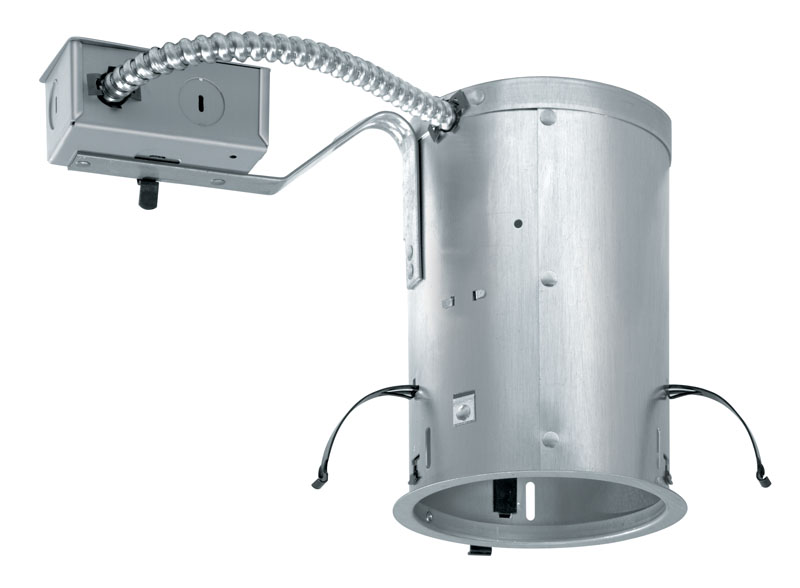

JUNO TC20R 5IN TC REMODEL HSG
Juno® Recessed Lighting Housing, Remodel Universal, Series: TC Series, 120 VAC, 5-1/2 in Ceiling Opening, Incandescent Lamp, 85 W Lamp, 1 Lamps, Non-IC Insulation, Ceiling Mount, For Use With: 5 in Trim, 5 in Dia, 7-1/2 in Height, 5-7/8 in Width, 12-1/2 in Depth, Aluminum Housing
Juno® Recessed Lighting Housing, Remodel Universal, Series: TC Series, 120 VAC, 5-1/2 in Ceiling Opening, Incandescent Lamp, 85 W Lamp, 1 Lamps, Non-IC Insulation, Ceiling Mount, For Use With: 5 in Trim, 5 in Dia, 7-1/2 in Height, 5-7/8 in Width, 12-1/2 in Depth, Aluminum Housing
- Recessed Residential, Damp and Wet Locations
- Juno® Recessed Lighting Housing, Remodel Universal, Series: TC Series, 120 VAC, 5-1/2 in Ceiling Opening, Incandescent Lamp, 85 W Lamp, 1 Lamps, Non-IC Insulation, Ceiling Mount, For Use With: 5 in Trim, 5 in Dia, 7-1/2 in Height, 5-7/8 in Width, 12-1/2 in Depth, Aluminum Housing
- Drop socket with spring to accommodate a wide variety of trim and lamp combinations
Remodel springs accommodate up to a 1-1/8-in ceiling thickness
Housing is fully assembled for ease of installation
Pre-wired junction box with (5) 1/2 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
Shadow-free, knife edge trim design blends smoothly into the ceiling
UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG branch circuit conductors
Thermally protected against improper use of lamps or insulation
Installs through an opening in the ceiling from below
Secured in place by factory installed remodel springs
Design for use in non-insulated areas
If installed where insulation is present, the insulation must be pulled back 3 in from all sides of the TC housing
Slot cut outs and riveted spring mounting tabs accommodate various trim designs
Remodel springs accommodate up to 1-1/8 in ceiling thickness
A19/BR30/PAR20/PAR30/PAR30L/R20 lamps
The remodel housing is ideal for applications where the backside of the ceiling is not accessible
The non-IC housing is designed to be installed in non-insulated areas or where insulation is at least 3 in from the housing
- HOUSING LTG RECESSED INCAND NON-IC AL
- Product Catalog Page(s)
Specification Sheet
- UL Listed|CSA Certified
- Brand: Lithonia Lighting -AcuityAperture Size: 5 INApplication: ResidentialCountry of Origin: MXLamp Type: IncandescentMounting: RecessedNumber of Lamps: 1Standard: CSA,ULSub Brand: JunoType: Downlight; AdjustableVoltage Rating: 120 V
