LITH IC926
MFG #IC926
SKU #1785892
$68.57 per EA (1) / EA
22 in Stock. More available 09/13/2024
Stock Item
Product description

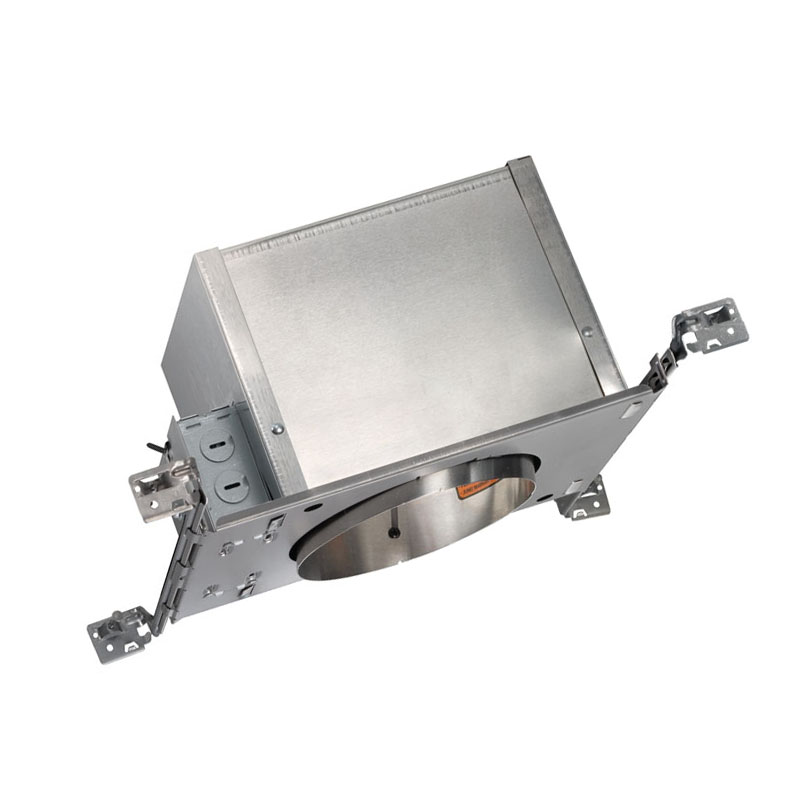

JUNO IC926 SLOPE CEILING IC HOUSING
Juno® Air-Loc® Recessed Lighting Housing, Sloped, 120 VAC, 6-11/18 x 7-1/32 in Ceiling Opening, Incandescent Lamp, 90 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: 6 in Trim, 6 in Dia, 7-5/8 in Height, 13-1/2 in Width, 16-1/8 in Depth, Aluminum Housing
Juno® Air-Loc® Recessed Lighting Housing, Sloped, 120 VAC, 6-11/18 x 7-1/32 in Ceiling Opening, Incandescent Lamp, 90 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: 6 in Trim, 6 in Dia, 7-5/8 in Height, 13-1/2 in Width, 16-1/8 in Depth, Aluminum Housing
- Recessed Commercial, Recessed Residential, Damp and Wet Locations
- Juno® Air-Loc® Recessed Lighting Housing, Sloped, 120 VAC, 6-11/18 x 7-1/32 in Ceiling Opening, Incandescent Lamp, 90 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: 6 in Trim, 6 in Dia, 7-5/8 in Height, 13-1/2 in Width, 16-1/8 in Depth, Aluminum Housing
- Oblique angle housing design holds trim flush with the ceiling
Adjustable socket plate permits lamp to remain perpendicular to floor through entire pitch range
Medium base porcelain socket with nickel plated copper screw shell
Shadow-free, knife edge trim design blends smoothly into the ceiling
Pre-wired junction box with (5) 1/2 in and (1) 3/4 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
Angle-cut baffles ensure grooves remain parallel to the floor to provide proper optics
UL listed, cUL, CSA certified for through branch wiring, maximum (8) 12 AWG 90 deg C branch circuit conductors
Real Nail® 3 bar hangers telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
Real Nail® 3 bar hangers feature patented break away bars for tight joist spacing
Energy efficient, sealed inner housing does not require separate ALG gasket
Can be completely covered with insulation
When used with Air-Loc® gasket, stops infiltration and exfiltration of air, reducing heating and air cooling costs
22 ga die-formed galvanized steel mounting frame
Inner housing is vertically adjustable to accommodate up to a 1 in ceiling thickness
Access door for junction box accessibility
For use in 2/12 to 6/12 (9 to 27 deg) pitch standard slopes
Oval ceil opening
A19/MR16/BR30/R30/PAR30/PAR30L/PAR38 lamps
- HOUSING LTG RECESSED INCAND IC 120VAC AL
- Product Catalog Page(s)
Specification Sheet
- UL Listed|CSA Certified
- Brand: Lithonia Lighting -AcuityAperture Size: 6 INApplication: Education,Government,Healthcare,Hospitality,House of Worship,Offices & Banks,Residential,RetailColor: UnfinishedCountry of Origin: MXHeight: 7.625 inLamp Type: IncandescentLength: 16.3125 INMaterial: AluminumMounting: RecessedNumber of Lamps: 1Standard: CSA,ULSub Brand: JunoType: Slope; Adjustable; DownlightVoltage Rating: 120 VWidth: 13.5 in
