GEDI TG4322
MFG #TG4322
UPC #78316400865
SKU #85940
4 in Stock
Stock Item
More available 12/18/2025 and 01/23/2026
$246.13 per EA (1) / EA
Product description

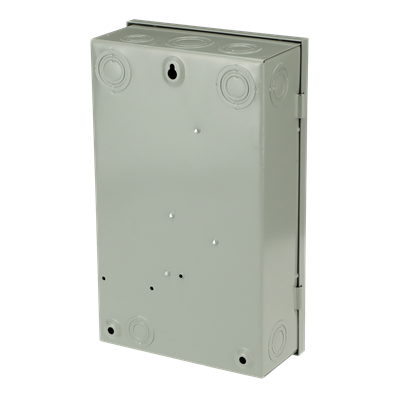

GE TG4322 60AMP 240VAC 3POLE 4WIRE FUSED NEMA1 GENERAL DUTY SAFETY SWITCH
GE Spec-Setterâ„¢ Safety Switch, Fusible General Duty, Series: TG Series, 240 VAC, 60 A, 3 hp Standard Fuse/10 hp Time Delay, 1 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, 60/75 deg C, 13.84 in H x 8.4 in W x 4 in D Dimensions, Steel
GE Spec-Setterâ„¢ Safety Switch, Fusible General Duty, Series: TG Series, 240 VAC, 60 A, 3 hp Standard Fuse/10 hp Time Delay, 1 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, 60/75 deg C, 13.84 in H x 8.4 in W x 4 in D Dimensions, Steel
- Residential, Light Commercial, Electrical Distribution and Control Applications
- Designed for residential and light commercial applications where duty is not severe. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type GD. Fusible and non-fusible switches available (consult BuyLog for interrupt ratings). Quick-make, quick-break mechanism (30-200 amp). 60/75 C conductor rating. TG438654
- 60A 3P GD N1 240V FUSIBLE SWITCH
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic Certified
- Brand: Industrial Conn & Solutions (GE)Amperage Rating: 60AApplication: GeneralCountry of Origin: UKNEnclosure: NEMA 1 (Indoor)Number of Poles: 3Size: 13.84Standard: UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic CertifiedSub Brand: GE Industrial SolutionType: Safety switchVoltage Rating: 240 VAC
