TB WR279
MFG #WR279
SKU #73920
$385.30 per C (100) / EA
109 in Stock. More available 05/10/2024
Stock Item
Product description

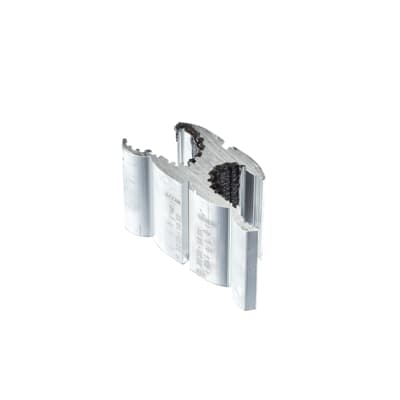

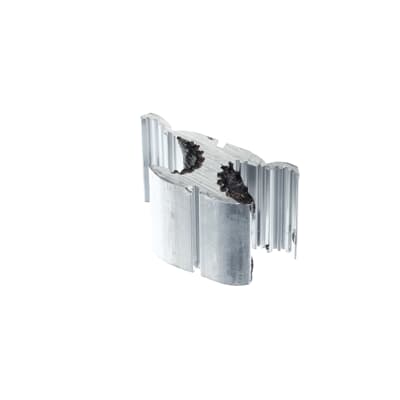

TB WR279 #4 H-TAP COMPRESSION CONNECTOR ALUMINUM MAIN #1/0-#3/0AWG TAP #1/0STR-#3/0STR *** #4 ***
Blackburn Compression H-Tap Connector, Type WR Wide Range, H, 2/0 to 1 AWG ACSR, 3/0 to 1/0 AWG Stranded, 4/0 to 2/0 AWG Solid Main/Run, 2/0 to 1 AWG ACSR, 3/0 to 1/0 AWG Stranded, 3/0 to 2/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, D, D3 Die Code, 0.336 to 0.47 in Dia Main Conductor, 0.336 to 0.47 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 1-13/16 in L
Blackburn Compression H-Tap Connector, Type WR Wide Range, H, 2/0 to 1 AWG ACSR, 3/0 to 1/0 AWG Stranded, 4/0 to 2/0 AWG Solid Main/Run, 2/0 to 1 AWG ACSR, 3/0 to 1/0 AWG Stranded, 3/0 to 2/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, D, D3 Die Code, 0.336 to 0.47 in Dia Main Conductor, 0.336 to 0.47 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 1-13/16 in L
- For combination of aluminum to aluminum and aluminum to copper conductors
- Blackburn Compression H-Tap Connector, Type WR Wide Range, H, 2/0 to 1 AWG ACSR, 3/0 to 1/0 AWG Stranded, 4/0 to 2/0 AWG Solid Main/Run, 2/0 to 1 AWG ACSR, 3/0 to 1/0 AWG Stranded, 3/0 to 2/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, D, D3 Die Code, 0.336 to 0.47 in Dia Main Conductor, 0.336 to 0.47 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 1-13/16 in L
- CONNECTOR H-TAP COMPRESSION H AL D
- Product Catalog Page(s)
MSDS
Specification Sheet
- ANSI C119.4|BAA Compliant|RUS Accepted
- Brand: Thomas & BettsApplication: For Combinations of Aluminum to Aluminum and Aluminum to Copper ConductorsConductor Range: Main: 2/0-1 ACSR, 3/0-1/0 Stranded, 4/0-2/0 Solid, Tap: 2/0-1 ACSR, 3/0-1/0 Stranded, 3/0-2/0 SolidConductor Size: 3/0, 2/0, 1/0Connection: CompressionCountry of Origin: MXEnvironmental Conditions: All Seasons / ConditionsInsulation: NoneMaterial: AluminumMounting: NoneNumber Of Conductors: 2Size: Length 1-13/16 inchStandard: RUS Accepted. Complies with ANSI C119.4 SpecificationsTap Size: 1, 2, 3, 4, 6Temperature Rating: up to 90 CType: H-Type Compression Tap ConnectorVoltage Rating: None since UninsulatedWire Size: Main: 2/0 to #1 ACSR or 3/0 to 1/0 STR or 4/0 to 2/0 SOL AWG , Tap: 2/0 to #1 ACSR or 3/0 to 1/0 STR or 3/0 to 2/0 SOL AWGIDW2 Image1 URL: https://ideadigitalasset.com/DAMRoot/Original/12195/12055_OGE59D4RTLFUA76J.jpg
