TB WR289
MFG #WR289
SKU #73921
$419.90 per C (100) / EA
114 in Stock. More available 05/10/2024
Stock Item
Product description

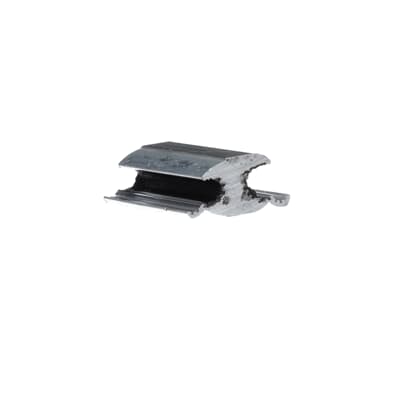

TB WR289 H-TAP COMPERSSION CONNECTOR ALUMINUM MAIN #3/0-#2/0AWG TAP #6STR-#1/0SOL "D" "D3" DIE *** #3 ***
Blackburn Compression H-Tap Connector, Type WR Wide Range, H, 2/0 to 1/0 AWG ACSR, 3/0 to 2/0 AWG Stranded Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, D, D3 Die Code, 0.398 to 0.47 in Dia Main Conductor, 0.162 to 0.332 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 1-13/16 in L
Blackburn Compression H-Tap Connector, Type WR Wide Range, H, 2/0 to 1/0 AWG ACSR, 3/0 to 2/0 AWG Stranded Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, D, D3 Die Code, 0.398 to 0.47 in Dia Main Conductor, 0.162 to 0.332 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 1-13/16 in L
- For combination of aluminum to aluminum and aluminum to copper conductors
- Blackburn Compression H-Tap Connector, Type WR Wide Range, H, 2/0 to 1/0 AWG ACSR, 3/0 to 2/0 AWG Stranded Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, D, D3 Die Code, 0.398 to 0.47 in Dia Main Conductor, 0.162 to 0.332 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 1-13/16 in L
- CONNECTOR H-TAP COMPRESSION H AL D
- Product Catalog Page(s)
MSDS
Specification Sheet
- ANSI C119.4|BAA Compliant|RUS Accepted
- Brand: Thomas & BettsApplication: For Combinations of Aluminum to Aluminum and Aluminum to Copper ConductorsConductor Range: Main: 2/0 - 1/0 ACSR, 3/0 - 2/0 Stranded, Tap: 2-6 ACSR, 1-6 Stranded, 1/0-6 SolidConductor Size: 3/0, 2/0Connection: CompressionCountry of Origin: MXEnvironmental Conditions: All Seasons / ConditionsInsulation: NoneMaterial: AluminumMounting: NoneNumber Of Conductors: 2Size: Length 1-13/16 inchStandard: RUS Accepted. Complies with ANSI C119.4 SpecificationsTap Size: 1, 2, 3, 4, 6Temperature Rating: up to 90 CType: H-Type Compression Tap ConnectorVoltage Rating: None since UninsulatedWire Size: Main: 2/0 to 1/0 ACSR or 3/0 to 2/0 STR AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWGIDW2 Image1 URL: https://ideadigitalasset.com/DAMRoot/Original/12191/12055_QBFPTG13X9L6H8OM.jpg
