TB WR399
MFG #WR399
SKU #73923
$422.10 per C (100) / EA
129 in Stock. More available 05/03/2024
Stock Item
Product description

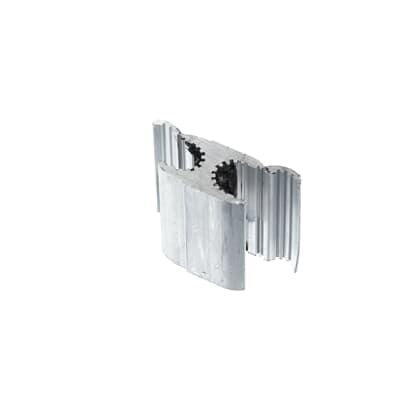

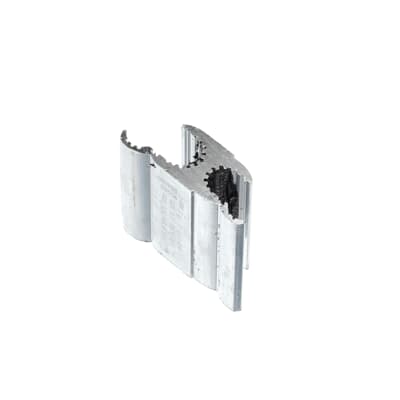

TB WR399 H-TAP COMPRESSION CONNECTOR ALUMINUM MAIN #4/0 TAP #2/0STR- #3/0SOL "D" DIE *** #6 ***
Blackburn Compression Tap Connector, Type H Wide Range, Series: WR Series, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 1 to 2/0 AWG ACSR, 1/0 to 2/0 AWG Stranded, 2/0 to 3/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, Specifications: O Die Code, 0.461 to 0.563 in Dia Main Conductor, 0.338 to 0.447 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 2-3/16 in L Dimensions
Blackburn Compression Tap Connector, Type H Wide Range, Series: WR Series, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 1 to 2/0 AWG ACSR, 1/0 to 2/0 AWG Stranded, 2/0 to 3/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, Specifications: O Die Code, 0.461 to 0.563 in Dia Main Conductor, 0.338 to 0.447 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 2-3/16 in L Dimensions
- For combination of aluminum to aluminum and aluminum to copper conductors
- Blackburn Compression Tap Connector, Type H Wide Range, Series: WR Series, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 1 to 2/0 AWG ACSR, 1/0 to 2/0 AWG Stranded, 2/0 to 3/0 AWG Solid Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, Specifications: O Die Code, 0.461 to 0.563 in Dia Main Conductor, 0.338 to 0.447 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 2-3/16 in L Dimensions
- CONNECTOR TAP COMPRESSION H AL 2-COND
- Product Catalog Page(s)
MSDS
Specification Sheet
- ANSI C119.4|RUS Accepted
- Brand: Thomas & BettsApplication: For Combinations of Aluminum to Aluminum and Aluminum to Copper ConductorsConductor Range: Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Stranded, Tap: 2/0 - 1 ACSR, 2/0 - 1/0 Stranded 3/0 - 2/0 SolidConductor Size: 4/0, 3/0Connection: CompressionCountry of Origin: MXEnvironmental Conditions: All Seasons / ConditionsInsulation: NoneMaterial: AluminumMounting: NoneNumber Of Conductors: 2Size: Length 2-3/16 inchStandard: RUS Accepted. Complies with ANSI C119.4 SpecificationsTap Size: 2/0, 1/0Temperature Rating: up to 90 CType: H-Type Compression Tap ConnectorVoltage Rating: None since UninsulatedWire Size: Main: 4/0 to 3/0 ACSR or 4/0 to 3/0 STR AWG , Tap: 2/0 to #1 ACSR or 2/0 to 1/0 STR or 3/0 to 2/0 SOL AWGIDW2 Image1 URL: https://ideadigitalasset.com/DAMRoot/Original/12194/12055_2X4OHJU83A0PFZR1.jpg
