TB WR419
MFG #WR419
SKU #73924
$430.70 per C (100)Â /Â EA
155 in Stock. More available 04/11/2024
Stock Item
Product description

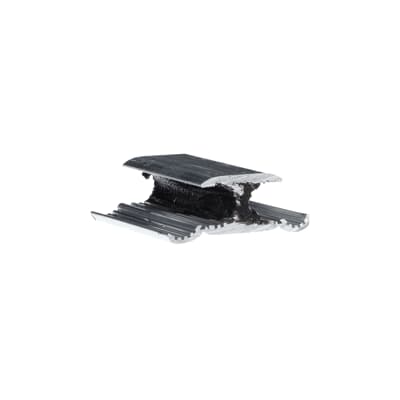

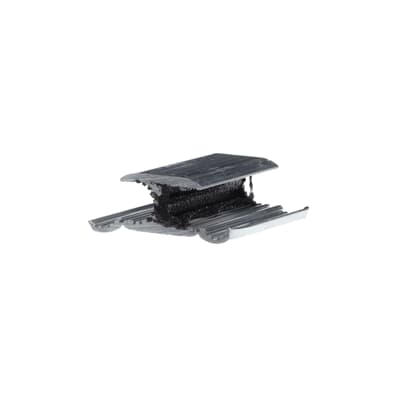

TB WR419 H-TAP COMPRESSION CONNECTOR ALUMINUM MAIN #3/0-#4/0AWG TAP #3/0STR-#4/0STR "D" "D3" DIE ***#7***
Blackburn Compression Tap Connector, Type H Wide Range, Series: WR Series, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 4/0 to 3/0 AWG ACSR, 4/0 to 3/0 AWG Stranded Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, Specifications: D, D3 Die Code, 0.461 to 0.563 in Dia Main Conductor, 0.461 to 0.563 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 2-3/16 in L Dimensions
Blackburn Compression Tap Connector, Type H Wide Range, Series: WR Series, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 4/0 to 3/0 AWG ACSR, 4/0 to 3/0 AWG Stranded Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, Specifications: D, D3 Die Code, 0.461 to 0.563 in Dia Main Conductor, 0.461 to 0.563 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 2-3/16 in L Dimensions
- For combination of aluminum to aluminum and aluminum to copper conductors
- Blackburn Compression Tap Connector, Type H Wide Range, Series: WR Series, H Shape, 4/0 to 3/0 AWG ACSR/Stranded Main/Run, 4/0 to 3/0 AWG ACSR, 4/0 to 3/0 AWG Stranded Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, Specifications: D, D3 Die Code, 0.461 to 0.563 in Dia Main Conductor, 0.461 to 0.563 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 2-3/16 in L Dimensions
- CONNECTOR TAP COMPRESSION H AL D 2-COND
- Product Catalog Page(s)
MSDS
Specification Sheet
- ANSI C119.4|RUS Accepted
- Brand:Â Thomas & BettsApplication:Â For Combinations of Aluminum to Aluminum and Aluminum to Copper ConductorsConductor Range:Â Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Stranded, Tap: 4/0 - 3/0 ACSR, 4/0 - 3/0 StrandedConductor Size:Â 4/0, 3/0Connection:Â CompressionCountry of Origin:Â MXEnvironmental Conditions:Â All Seasons / ConditionsInsulation:Â NoneMaterial:Â AluminumMounting:Â NoneNumber Of Conductors:Â 2Size:Â Length 2-7/16 inchStandard:Â RUS Accepted. Complies with ANSI C119.4 SpecificationsTap Size:Â 4/0, 3/0Temperature Rating:Â up to 90 CType:Â H-Type Compression Tap ConnectorVoltage Rating:Â None since UninsulatedWire Size:Â Main: 4/0 to 3/0 ACSR or 4/0 STR AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWGIDW2 Image1 URL:Â https://ideadigitalasset.com/DAMRoot/Original/12191/12055_IMVOY9UH8D01JWPA.jpg
