BURN BGBL-250
MFG #BGBL-250
UPC #78181012481
SKU #23145
48 in Stock
Stock Item
More available 04/03/2026
$10.94/EA
Product description

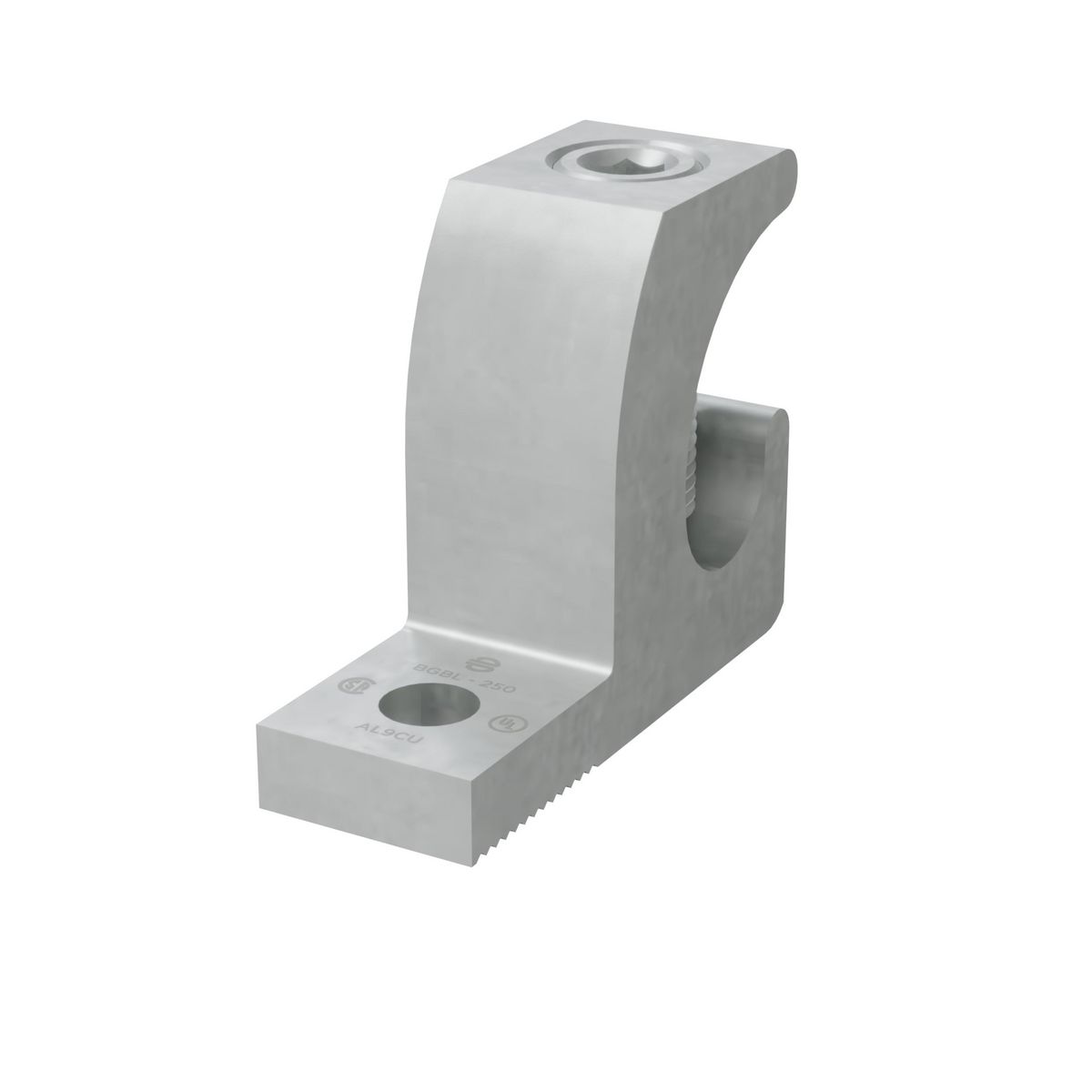

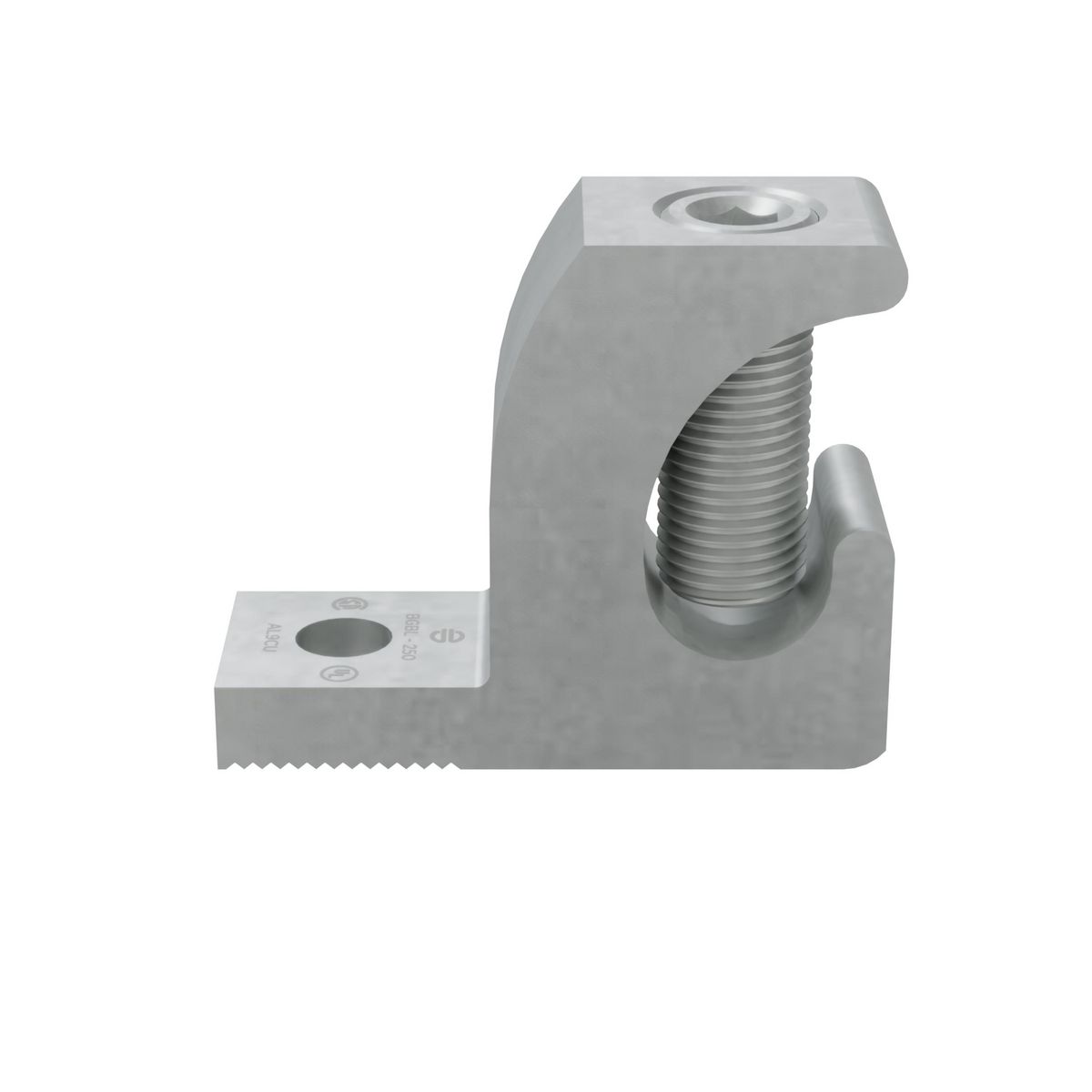

BURN BGBL-250 #6-250MCM 600VAC AL/CU LAY-IN LUG ALUMINUM
BURNDY® QIKLUG™ Mechanical Terminal Lug, Lay-In, Series: BGBL, Solid/Stranded Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 7/16 in Stud, 1 Bolt Holes, 0.88 in W x 0.3 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 7/32 in Hex, 0.33 in Hole, 180 lb-in Installation Torque, 194 deg F, Aluminum, Electro-Plated Tin, 2.18 in L x 1.72 in H Dimensions
BURNDY® QIKLUG™ Mechanical Terminal Lug, Lay-In, Series: BGBL, Solid/Stranded Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 7/16 in Stud, 1 Bolt Holes, 0.88 in W x 0.3 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 7/32 in Hex, 0.33 in Hole, 180 lb-in Installation Torque, 194 deg F, Aluminum, Electro-Plated Tin, 2.18 in L x 1.72 in H Dimensions
- For grounding and bonding applications accommodating both copper and aluminum conductor combinations up to 90 deg C, 600 V applications
- BURNDY® QIKLUG™ Mechanical Terminal Lug, Lay-In, Series: BGBL, Solid/Stranded Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 7/16 in Stud, 1 Bolt Holes, 0.88 in W x 0.3 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 7/32 in Hex, 0.33 in Hole, 180 lb-in Installation Torque, 194 deg F, Aluminum, Electro-Plated Tin, 2.18 in L x 1.72 in H Dimensions
- Eases installation
Ensures reliability
Provides low contact resistance
- LUG TERM MECH 6 AWG TO 250KCMIL 7/16IN 1
- Product Catalog Page(s)
Specification Sheet
- AL9CU Rated|ARRA Compliant|Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|UL 468A/468B|PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Brand: BurndyApplication: For Copper And Aluminum Conductor Combinations Up To 90 DEG CBolt Size: 7/16-18, 7/32 IN HexConductor Range (Main/Primary): 6 AWG - 250 KCMILCountry of Origin: CAFinish: Tin PlatedMaterial: AluminumStandard: UL 486A-BSub Brand: QIKLUGTemperature Rating: 194Type: BGBL, Lay-InVoltage Rating: 600 V
