MFG #BGBL-4
SKU #390949
$3.22 per EA (1)Â /Â EA
176 in Stock. More available 04/17/2024
Stock Item
Product description

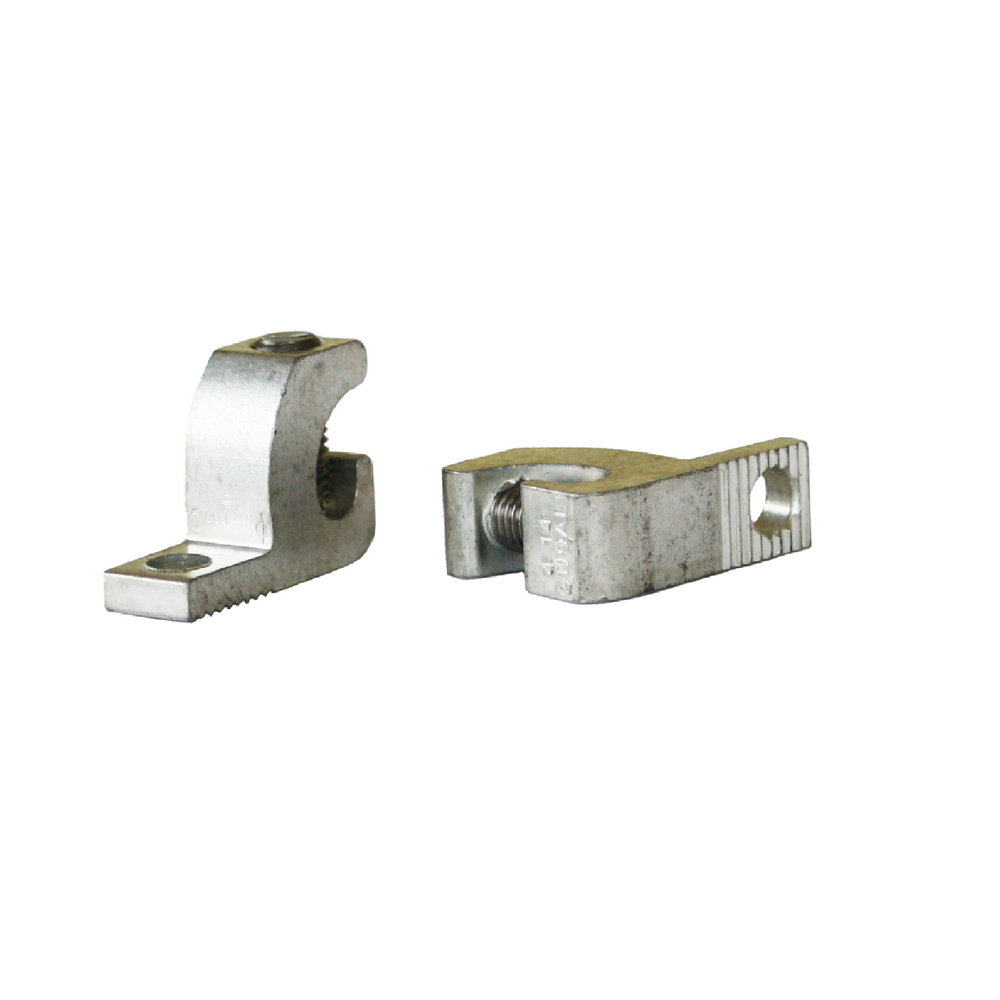

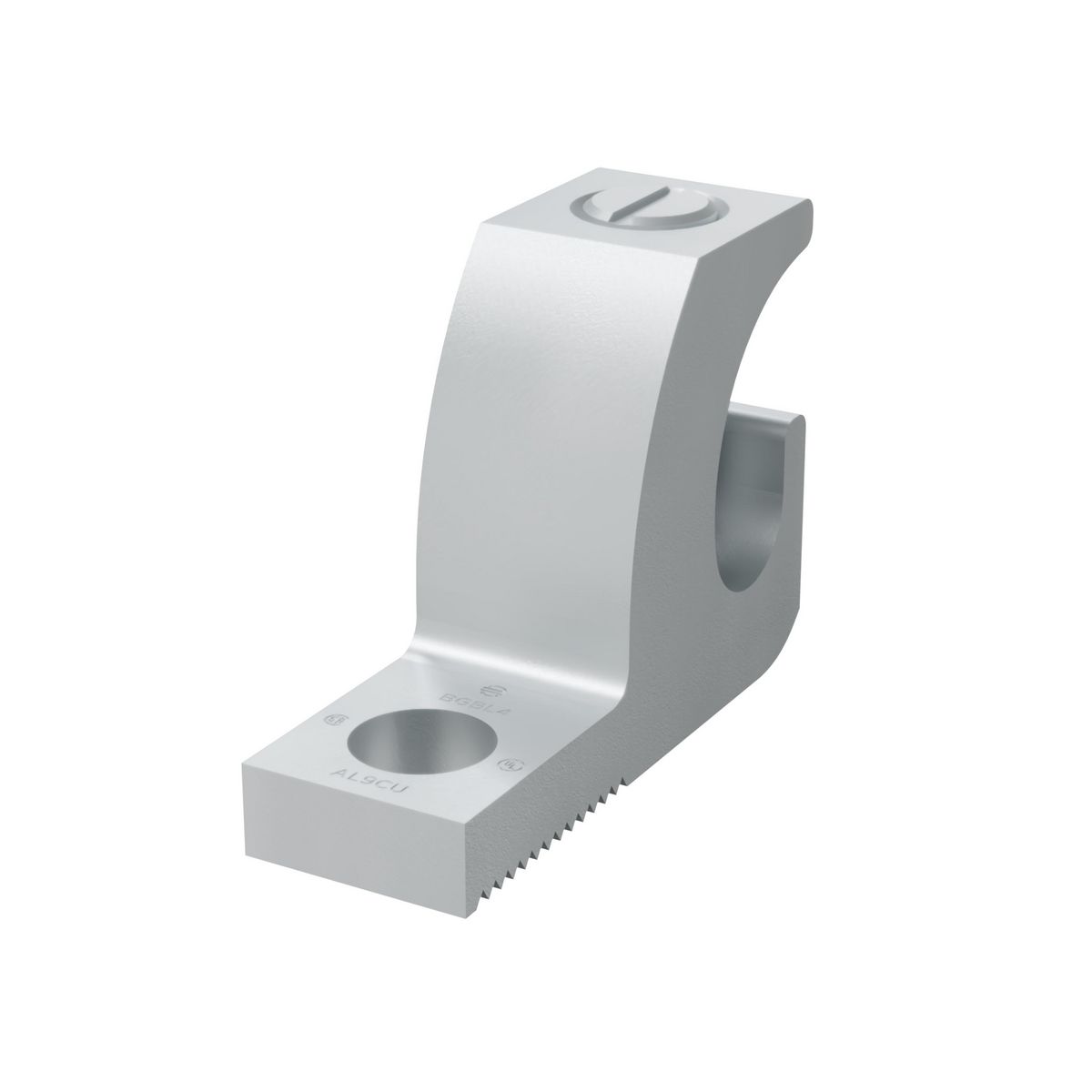

BURN BGBL-4 #14-#4AWG 600VAC AL/CU LAY-IN LUG ALUMINUM
BURNDY QIKLUG Mechanical Terminal Lug, Lay-In, Series: BGBL, Solid/Stranded Aluminum/Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.39 in W x 0.15 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 0.22 in Hole, 35 lb-in Installation Torque, 194 deg F, Aluminum, Electro-Plated Tin, 1.1 in L x 0.79 in H Dimensions
BURNDY QIKLUG Mechanical Terminal Lug, Lay-In, Series: BGBL, Solid/Stranded Aluminum/Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.39 in W x 0.15 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 0.22 in Hole, 35 lb-in Installation Torque, 194 deg F, Aluminum, Electro-Plated Tin, 1.1 in L x 0.79 in H Dimensions
- For grounding and bonding applications accommodating both copper and aluminum conductor combinations up to 90 deg C, 600 V applications
- BURNDY QIKLUG Mechanical Terminal Lug, Lay-In, Series: BGBL, Solid/Stranded Aluminum/Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.39 in W x 0.15 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 0.22 in Hole, 35 lb-in Installation Torque, 194 deg F, Aluminum, Electro-Plated Tin, 1.1 in L x 0.79 in H Dimensions
- LUG TERM MECH 14 TO 4AWG 1/4IN 1 AL
- Product Catalog Page(s)
Specification Sheet
- AL9CU Rated|ARRA Compliant|Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed|UL 468A/468B|PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Brand:Â BurndyApplication:Â For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt ApplicationsBolt Size:Â 1/4-28Conductor Range (Main/Primary):Â 14 - 4 AWGCountry of Origin:Â MXFinish:Â Tin PlatedMaterial:Â AluminumStandard:Â UL 486A-BSub Brand:Â QIKLUGTemperature Rating:Â 194Type:Â BGBL, Lay-InVoltage Rating:Â 600 V
