IDEAL 30-090J
MFG #30-090J
SKU #509451
$72.60 per C (100)Â /Â EA
500 in Stock. More available 05/12/2024
Stock Item
Product description

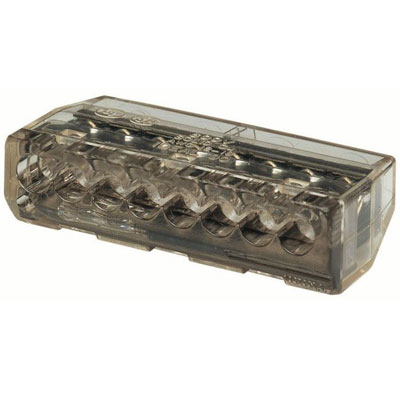

IDEAL 30-090J 8-PORT CLEAR PUSH-IN WIRE CONNECTOR WIRE RANGE SOLID #20-#12 STRANDED #16-#14(19 STRAND) 100JAR
IDEAL In-Sure Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 14 AWG, 18 to 12 AWG Wire, 600 VAC, Specifications: 8 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Polycarbonate, Black, Tin Plated, 0.355 in L x 1.38 in W x 0.717 in H Dimensions
IDEAL In-Sure Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 14 AWG, 18 to 12 AWG Wire, 600 VAC, Specifications: 8 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Polycarbonate, Black, Tin Plated, 0.355 in L x 1.38 in W x 0.717 in H Dimensions
- Grounding and Bonding Applications
- IDEAL In-Sure Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 14 AWG, 18 to 12 AWG Wire, 600 VAC, Specifications: 8 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Polycarbonate, Black, Tin Plated, 0.355 in L x 1.38 in W x 0.717 in H Dimensions
- CONNECTOR W PUSH-IN SOL/STRD/TIN-BND BK
- Product Catalog Page(s)
MSDS
Specification Sheet
- RoHS Compliant|CE Certified|CSA C22.2 File No. 188 Certified|UL94 V-2 Flammability Rating|UL 486C, 467
- Brand:Â Ideal IndustriesApplication:Â For Grounding And Bonding ApplicationsColor:Â BlackConnection:Â 8 PortsCountry of Origin:Â USASize:Â 0.355 IN Length X 1.380 IN Width X 0.717 IN HeightStandard:Â CSA C22.2 #188, 486C/467 UL Listed, RoHSSub Brand:Â In-SureTemperature Rating:Â 105 DEG C Shell RatedType:Â Push-InVoltage Rating:Â 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting FixturesWire Size:Â #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded)Wire Type:Â Solid, Stranded, Stranded (Tin Bonded)
