IDEAL 30-1034
MFG #30-1034
SKU #3826498
$17.70 per C (100) / EA
8445 in Stock. More available 05/12/2024
Stock Item
Product description

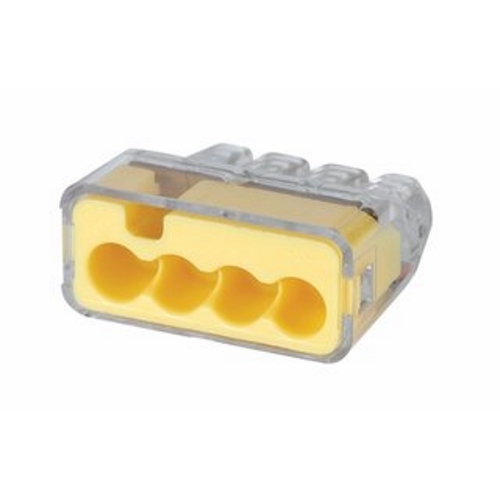

IDEAL 30-1034 4-PORT YELLOW PUSH-IN WIRE CONNECTOR WIRE RANGE SOLID #20-#12 STRANDED #16-#12(19 STRAND) 100/BX
IDEAL In-Sure Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Wire, 600 VAC, Specifications: 4 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Nylon/Polycarbonate, Yellow, Tin Plated, 0.78 in L x 0.82 in W x 0.38 in H Dimensions
IDEAL In-Sure Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Wire, 600 VAC, Specifications: 4 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Nylon/Polycarbonate, Yellow, Tin Plated, 0.78 in L x 0.82 in W x 0.38 in H Dimensions
- Grounding and Bonding Applications
- IDEAL In-Sure Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Wire, 600 VAC, Specifications: 4 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Nylon/Polycarbonate, Yellow, Tin Plated, 0.78 in L x 0.82 in W x 0.38 in H Dimensions
- Low insertion force for fast and easy connections
Compact size makes installation easy
Clear shell gives visual verification of connection
600 VAC maximum building wire, 1000 VAC maximum signs and lighting fixtures
Tough, flame-retardant shell rated at 105 deg C
Accepts any combination of 12 to 18 AWG solid or tin bonded copper conductors
Electrolytic tin plated copper bus system
Stainless steel inserts restrict pull-out
Color coded for easy identification
Built-in strip length gauge
Ground rating eliminates need for special "ground" connector
20 to 12 AWG solid, 16 to 12 AWG (19 strand or less) 18 AWG (7 strand) stranded, 18 to 14 AWG (19 strand or less) stranded (tin bonded)
- CONNECTOR W PUSH-IN SOL/STRD/TIN-BND YEL
- Product Catalog Page(s)
MSDS
Specification Sheet
- RoHS Compliant|CE Certified|CSA C22.2 File No. 188|IEC 998-2-2|UL 94V-2 Flammability Rating|UL 486C, 467
- Brand: Ideal IndustriesApplication: For Grounding And Bonding ApplicationsColor: YellowConnection: 4 PortsCountry of Origin: USASize: 0.780 IN Length X 0.820 IN Width X 0.380 IN HeightStandard: CSA C22.2 #188, 486C/467 UL Listed, RoHSSub Brand: In-SureTemperature Rating: 105 DEG C Shell RatedType: Push-InVoltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting FixturesWire Size: #12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand) Stranded, #14 AWG - #18 AWG (19 Strand Or Less) Stranded (Tin Bonded)Wire Type: Solid, Stranded, Stranded (Tin Bonded)
