BURN KSU26
MFG #KSU26
UPC #78181003660
SKU #23229
50 in Stock
Stock Item
More available 12/01/2025 and 12/19/2025
$20.91 per EA (1) / EA
Product description
BURN KSU26 2-2/0AWG SPLIT BOLT CONN CU/AL

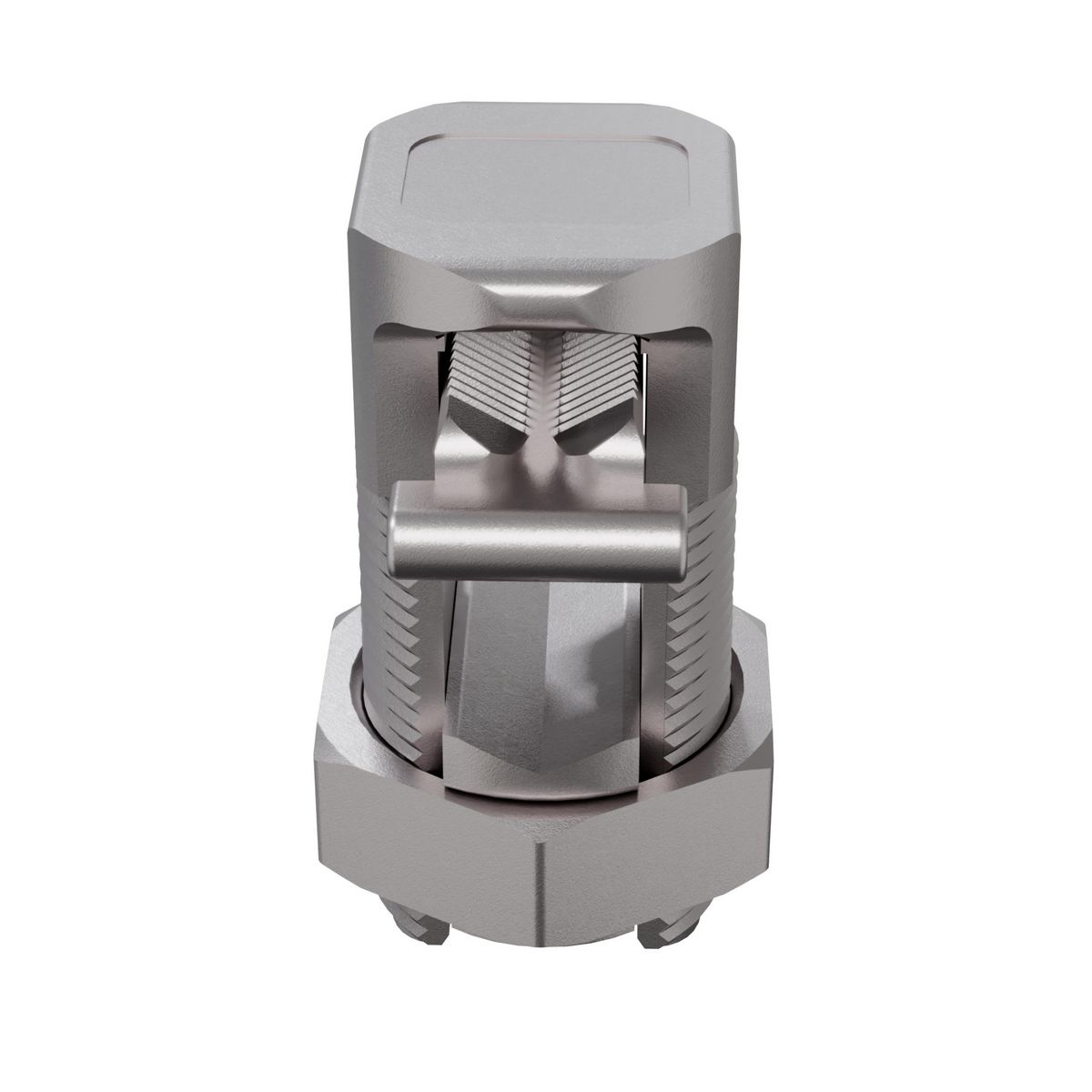

BURNDY® SERVIT® Split Bolt Connector, Universal, Series: KSU, 1 Conductors, 6 to 2/0 AWG, 7/16 in to 8 AWG Conductor, 1.93 in Length, 0.79 in Width, 385 in-lb, Copper Alloy, Tin Coated
BURNDY® SERVIT® Split Bolt Connector, Universal, Series: KSU, 1 Conductors, 6 to 2/0 AWG, 7/16 in to 8 AWG Conductor, 1.93 in Length, 0.79 in Width, 385 in-lb, Copper Alloy, Tin Coated
- All combinations of copper, aluminum, ACSR, AAAC, 5005 and steel
- BURNDY® SERVIT® Split Bolt Connector, Universal, Series: KSU, 1 Conductors, 6 to 2/0 AWG, 7/16 in to 8 AWG Conductor, 1.93 in Length, 0.79 in Width, 385 in-lb, Copper Alloy, Tin Coated
- Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors
Use of PENETROX™ joint compound recommended with aluminum and ACSR
Conductor type - run ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, tap - ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, steel (nominal diameter)
14 in across flats
8 to 2/0 AWG of copper tap range, 2 to 2/0 AWG copper stranded run (range), 22 AWG copper solid run size (range)
High conductivity copper alloy
6 to 2/0 AWG main/primary, 7/16 in to 8 AWG tap/secondary
- CONNECTOR BOLT SPLIT 1 1.93IN COPPER ALY
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Brand: BurndyApplication: For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And SteelConductor Range (Main/Primary): 6 (6-1) - 2/0 AWGConductor Range (Tap/Secondary): 7/16 IN - 8 AWGCountry of Origin: USFinish: Tin PlatedMaterial: CopperNumber of Conductors/Ports (Tap/Sec: 1Standard: Buy American Act Compliant (All status valid till December 2024)Sub Brand: UNIVERSAL SERVITType: KSU, Universal
