HUBW HBL5269C
MFG #HBL5269C
UPC #78358517325
SKU #44208
471 in Stock
Stock Item
More available 12/08/2025 and 12/29/2025
$50.29 per EA (1) / EA
Product description

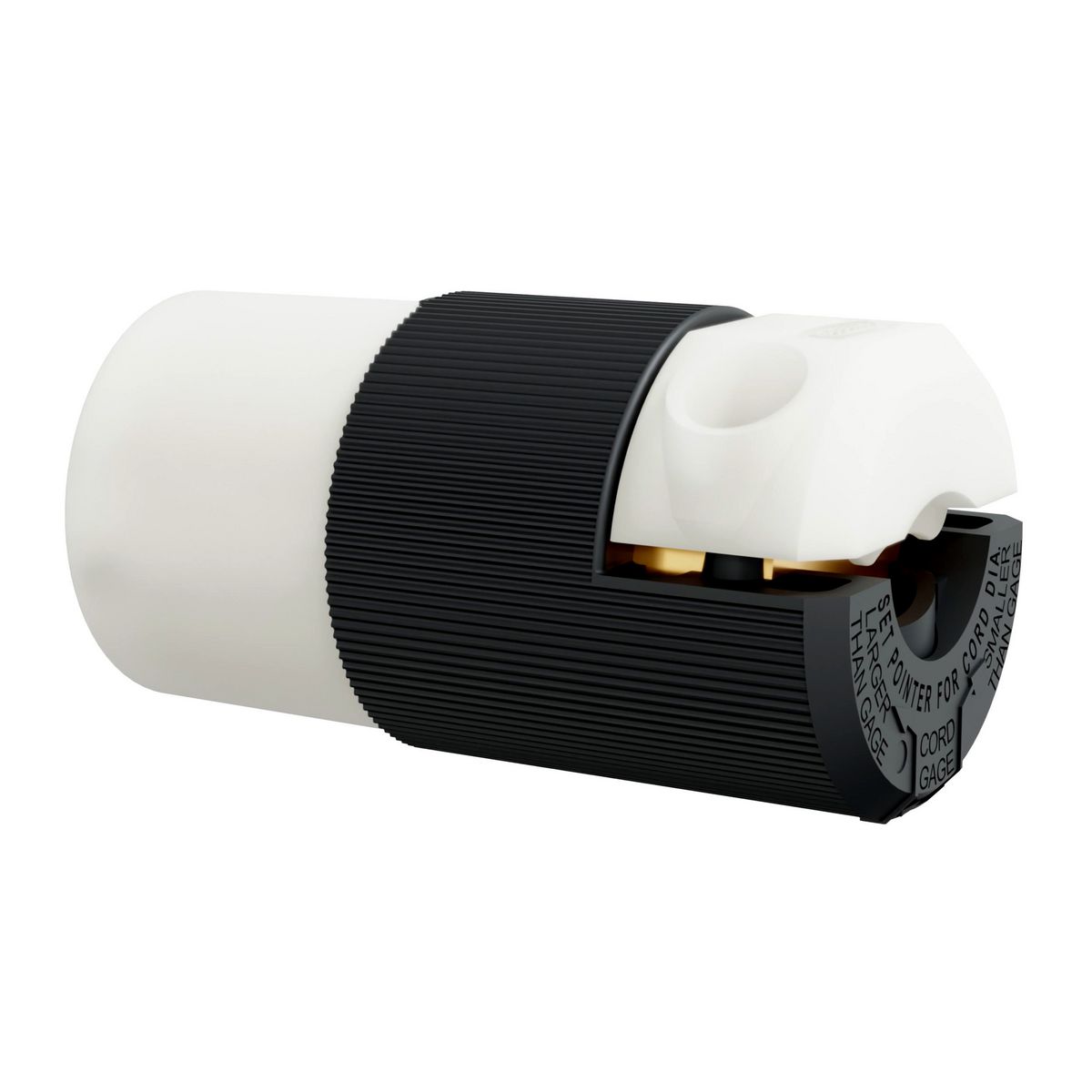

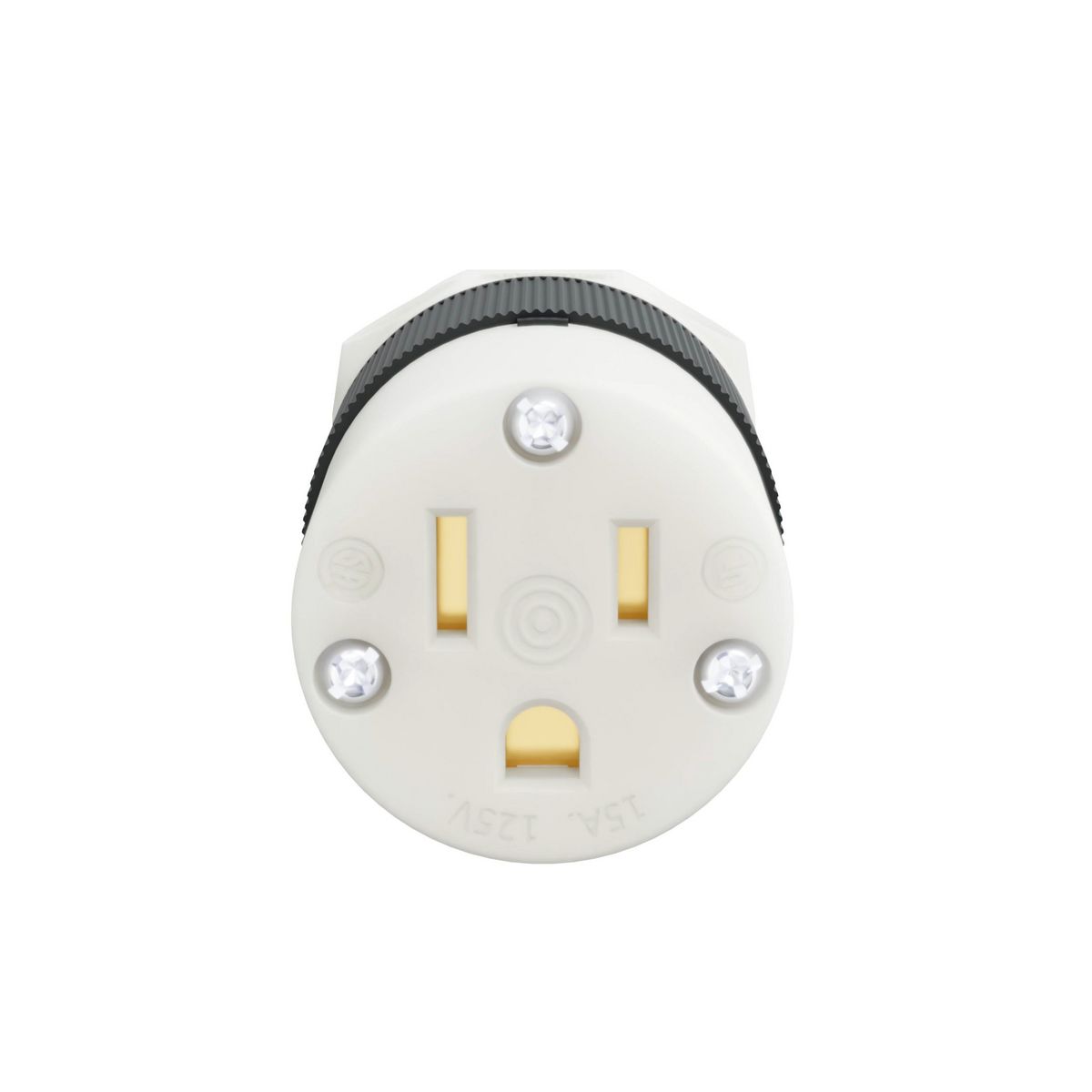

HUBW HBL5269C 15AMP 125VAC NEMA5-15R 2POLE 3WIRE INSULGRIP CONNECTOR BODY .230"- .720" CORD DIAMETER BLACK/WHTIE NYLON IP20
Wiring Device-Kellems Insulgrip® Straight Blade Connector, Female Grounding Heavy Duty Insulated Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.78 in L x 1.53 in W
Wiring Device-Kellems Insulgrip® Straight Blade Connector, Female Grounding Heavy Duty Insulated Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.78 in L x 1.53 in W
- Commercial and Industrial Applications
- Wiring Device-Kellems Insulgrip® Straight Blade Connector, Female Grounding Heavy Duty Insulated Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.78 in L x 1.53 in W
- CONNECTOR BL STR 125VAC 15A 2 3 BK/WHT
- Product Catalog Page(s)
MSDS
Specification Sheet
- UL 498 File No. E1706|CSA C22.2 No. 42/280|NEMA WD1/WD5 WD6
- Brand: Hubbell Wiring DevicesAmperage Rating: 15 AApplication: Industrial/Commercial GradeColor: Black, WhiteConductor Range: #18 AWG to #10 AWGConnection: Screw TerminalsCountry of Origin: USEnvironmental Conditions: Indoor Dry Unless Protected By Additional MeansInsulation: Insulated BodyMaterial: PolycarbonateMounting: Cord MountedNEMA Rating: 5-15RNumber Of Conductors: 3-Wire GroundingNumber of Poles: 2-PoleSize: 2.65 in x 1.55 in x 2.65 inSpecial Features: Standard ProductStandard: UL 498 File No. E1706|CSA C22.2 No. 42/280|NEMA WD1/WD5 WD6Sub Brand: Straight BladeTemperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without ImpactType: Connector BodyVoltage Rating: 125
