HUBW 5362I
MFG #5362I
SKU #3746446
$7.36 per EA (1) / EA
307 in Stock. More available 05/14/2024
Stock Item
Product description

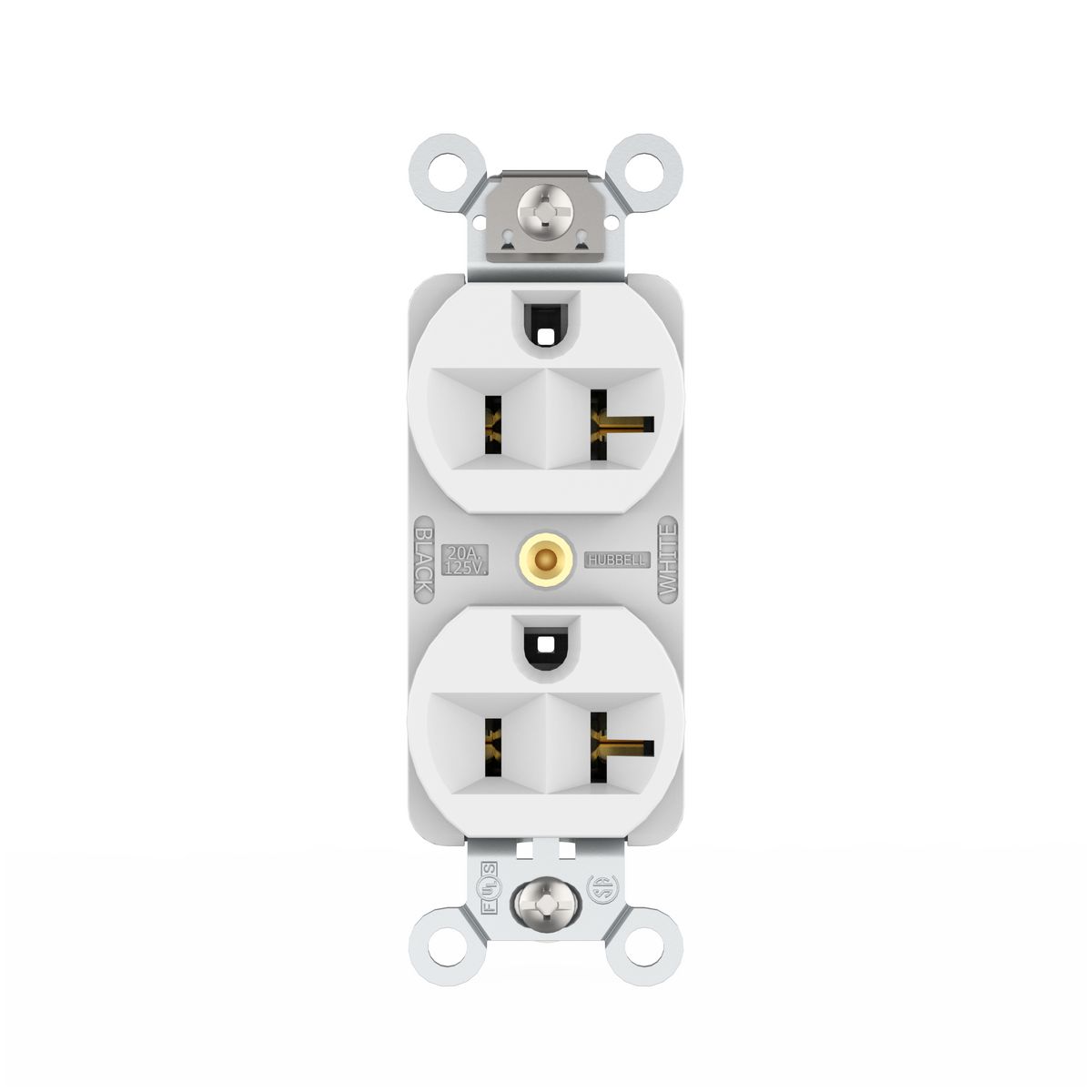

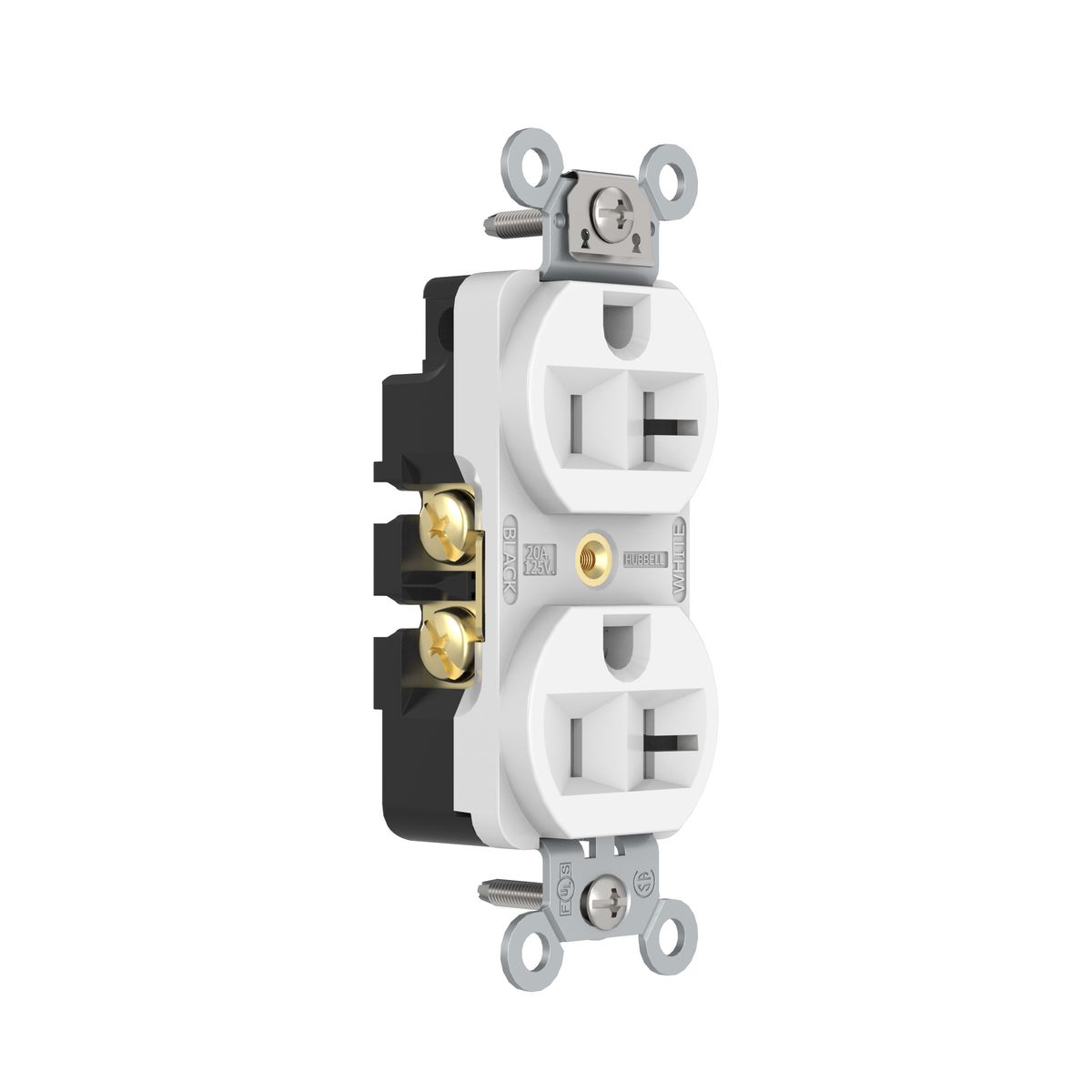

HUBW 5362I 20AMP IVORY 125VAC NEMA5-20R 2POLE 3WIRE BACK/SIDE WIRED DUPLEX RECEPTACLE HEAVY DUTY SPECIFICATION GRADE FINDER GROVE NYLON FACE COMMERCIAL PRO LINE
Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Ivory, 3.28 in L x 1.41 in W x 1.09 in H
Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Ivory, 3.28 in L x 1.41 in W x 1.09 in H
- Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Ivory, 3.28 in L x 1.41 in W x 1.09 in H
- Triple wipe contacts
Finder groove face
- RECEPTACLE BL STR 125VAC 20A 2 3 IVORY
- Product Catalog Page(s)
MSDS
Specification Sheet
- RoHS Compliant|CSA C22.2 No. 42|UL 498 File No. E2186|Federal Specification WC596|UL 94-V-2 Flammability Rating|NEMA WD1/WD5/WD6
- Brand: Hubbell Wiring DevicesAmperage Rating: 20 AApplication: Hubbell-Pro Extra Heavy DutyColor: IvoryConnection: Back and Side WiredCountry of Origin: USDielectric Strength: Withstands 2,000V minimumEnvironmental Conditions: Indoor Dry Unless Protected By Additional MeansMaterial: Thermoplastic/CompositeMounting: Screw MountNEMA Rating: 5-20RNumber of Poles: 2-PoleNumber Of Wires: 3-WirePhase: Single PhaseSize: Standard Sized ProductSpecial Features: Self GroundingStandard: UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 CompliantSub Brand: Straight Blade DevicesTemperature Rating: Maximum Continuous 75°C; Minimum -40°C (w/o impact)Type: Standard DuplexVoltage Rating: 125Wattage: 1,875 WWire Size: #12 AWG to #10 AWG
