HUBW CR20LA
MFG #CR20LA
SKU #3775201
$2.33 per EA (1) / EA
242 in Stock. More available 05/23/2024 and 06/06/2024
Stock Item
Product description

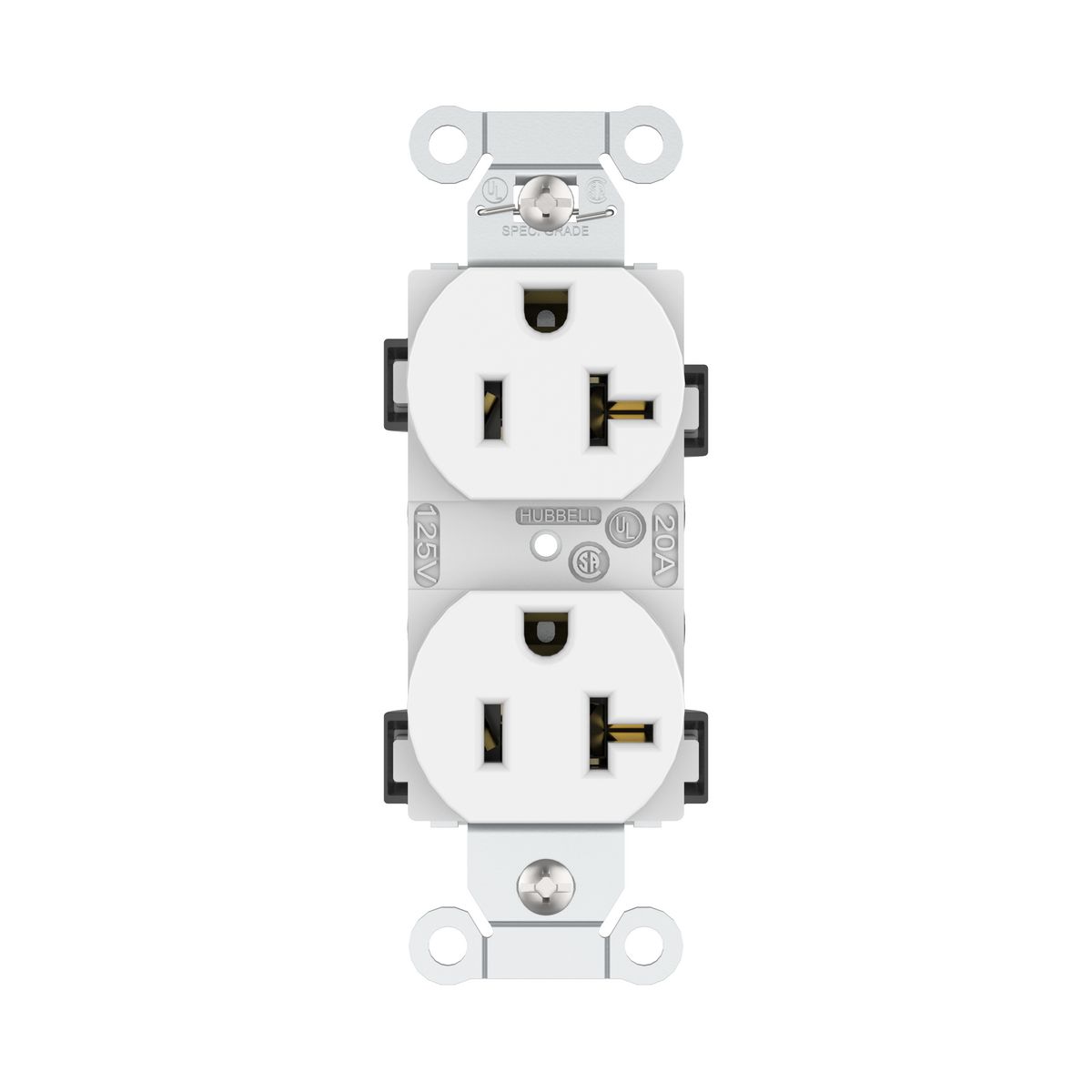

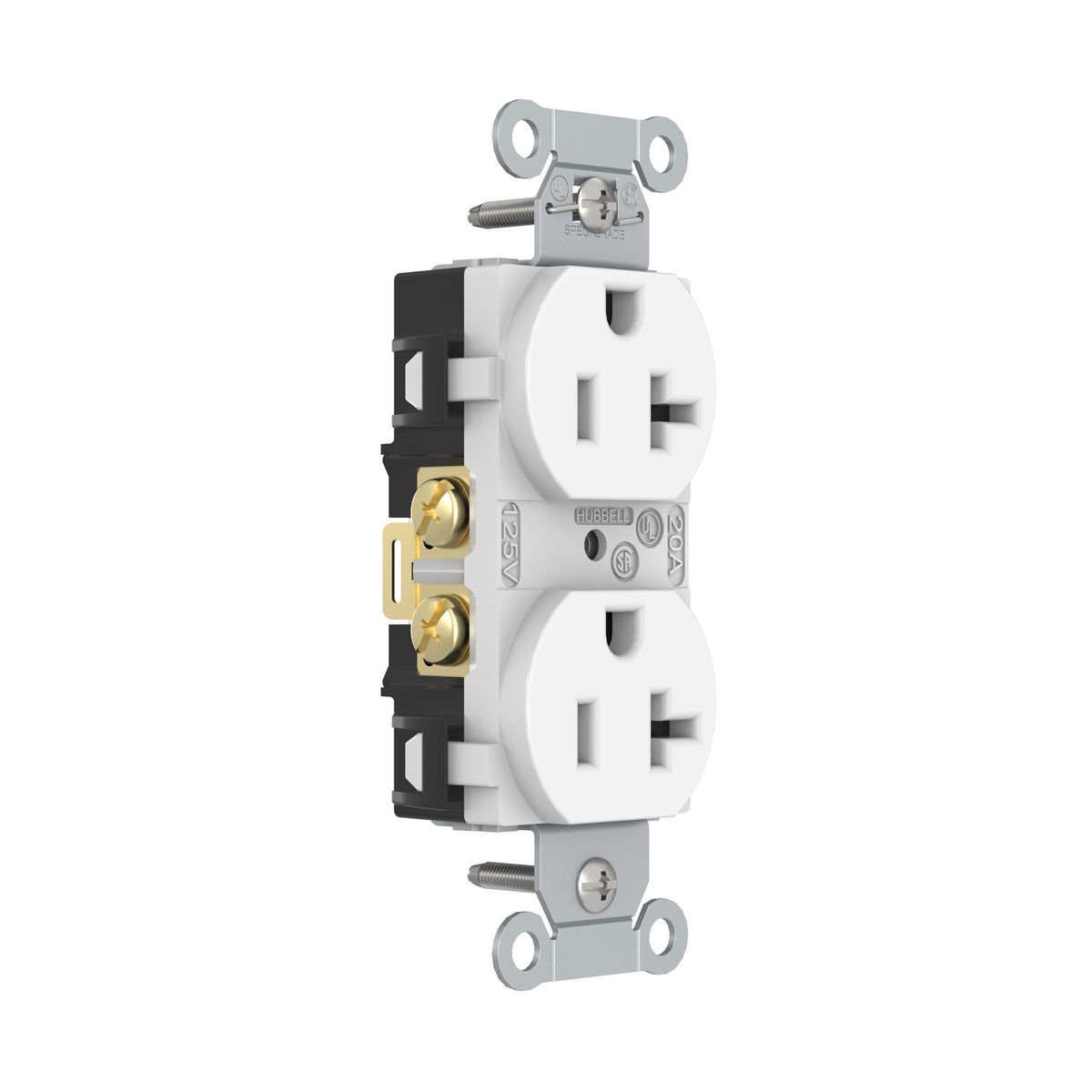

HUBW CR20LA 20AMP LIGHT ALMOND 125VAC NEMA5-20R 2POLE 3WIRE SIDE/WIRED ONLY DUPLEX RECEPTACLE COMMERCIAL/SPECIFICATION GRADE SMOOTH NYLON FACE
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Light Almond, 1.32 x 0.83 x 3.28 in
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Light Almond, 1.32 x 0.83 x 3.28 in
- Washdown Areas, Transit Centers, Amusement Parks and Open Air Markets
- Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Light Almond, 1.32 x 0.83 x 3.28 in
- RECEPTACLE BL STR 125VAC 20A 2 3 1HP NYL
- Product Catalog Page(s)
MSDS
Specification Sheet
- CSA C22.2 No. 42|Federal Specification WC596|NEMA WD1/WD5|UL 498
- Brand: Hubbell Wiring DevicesAmperage Rating: 20 AApplication: Commercial Specification GradeColor: Light AlmondConnection: Back and Side WiredCountry of Origin: CNDielectric Strength: Withstands 2,000V minimumEnvironmental Conditions: Indoor Dry unless protected by additional meansMaterial: NylonMounting: Screw MountNEMA Rating: 5-20RNumber of Poles: 2-poleNumber Of Wires: 3-WirePhase: Single PhaseSize: 1.32 in x 0.83 in x 3.28 inSpecial Features: Self GroundingStandard: Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186Sub Brand: Straight Blade DevicesType: Standard DuplexVoltage Rating: 125Wattage: 2,500 WWire Size: #12 AWG to #10 AWG
