LEV 1221-2I
MFG #1221-2I
UPC #07847723989
SKU #3768330
Product description

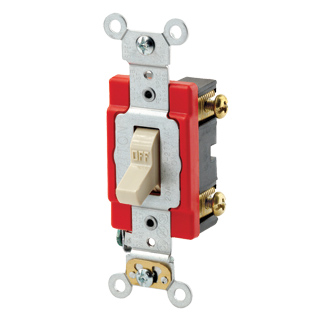

LEV 1221-2I 20AMP IVORY 120/277VAC SINGLE POLE TOGGLE SWITCH BACK/SIDE WIRED INDUSTRIAL/SPECIFICATION GRADE
Leviton®, 1221-2I, AC Quiet Toggle Switch, Self-Grounding, 120/277 VAC, 20 A, 800 W, 1000 VA Power, SP Contact Configuration, 1 hp at 120 VAC, 2 hp at 240 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Ivory, Environmental Conditions: -40 to 60 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
Leviton®, 1221-2I, AC Quiet Toggle Switch, Self-Grounding, 120/277 VAC, 20 A, 800 W, 1000 VA Power, SP Contact Configuration, 1 hp at 120 VAC, 2 hp at 240 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Ivory, Environmental Conditions: -40 to 60 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
- Commercial Applications
- Leviton® AC Quiet Toggle Switch, Self-Grounding, 120/277 VAC, 20 A, 800 W, 1000 VA Power, SP Contact Configuration, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wired Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Ivory, Environmental Conditions: -40 to 60 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
- SWITCH TGL QUIET AC 120/277VAC 20A SP
- Product Catalog Page(s)
MSDS
Specification Sheet
- RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
- Brand: LevitonAction: SPActuator: ToggleAmperage Rating: 20 AMPApplication: CommercialColor: IvoryConnection: Back Wired;Side WiredCountry of Origin: USEnvironmental Conditions: Flammability (Rated V-2 per UL94)Mounting: BoxNumber of Poles: 1Operating Temperature: -40 to +60 DEG CSize: 46 H x 1.31 W x 13 D INStandard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant, RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability RatingType: Toggle SwitchVoltage Rating: 120/277 VAC
