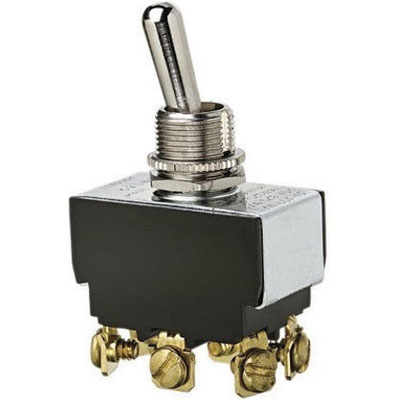

IDEAL 774003
MFG #774003
UPC #78325057349
SKU #2853029
Product description
IDEAL 774003 TOGGLE SWITCH DPDT ON-OFF-ON 20AMP/ 120VAC 10AMP/250VAC SPADE 1-1/2HP 125/250VAC SPADE TERMINALS
IDEAL® Toggle Switch, Heavy Duty, 125/227 VAC, 20/10 A, 1-1/2 hp Power, DPDT ON-OFF-ON Contact Configuration, Factory Tested 100000 Cycles to 21 A 14.8 VDC Contact, 2 Pole, Toggle Actuator, Spade Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.3 in L x 0.76 in W x 0.8 in H Dimensions
IDEAL® Toggle Switch, Heavy Duty, 125/227 VAC, 20/10 A, 1-1/2 hp Power, DPDT ON-OFF-ON Contact Configuration, Factory Tested 100000 Cycles to 21 A 14.8 VDC Contact, 2 Pole, Toggle Actuator, Spade Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.3 in L x 0.76 in W x 0.8 in H Dimensions
- Power Tool and Motor Control Switch Applications
- IDEAL® Toggle Switch, Heavy Duty, 125/227 VAC, 20/10 A, 1-1/2 hp Power, DPDT ON-OFF-ON Contact Configuration, Factory Tested 100000 Cycles to 21 A 14.8 VDC Contact, 2 Pole, Toggle Actuator, Spade Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.3 in L x 0.76 in W x 0.8 in H Dimensions
- SWITCH TGL 125/227VAC 20/10A 1-1/2HP 2
- Product Catalog Page(s)
Specification Sheet
- RoHS Compliant|CSA Certified|UL Recognized
- Brand: Ideal IndustriesAction: DPDTActuator: ToggleAmperage Rating: 10/20 AApplication: For Power Tool And Motor Control Switch ApplicationsConnection: Spade, 6 TerminalsContact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC RatingCountry of Origin: CHNMounting: 1/2 IN Hole DiameterNumber of Poles: 2Operating Cycles: 100kOperating Temperature: 32 To 185 DEG FSize: 1.300 IN Length X 0.760 IN Width X 0.800 IN HeightStandard: RoHS Compliant|CSA Certified|UL RecognizedType: Heavy-Duty, On-Off-OnVoltage Rating: 125/227 VAC
