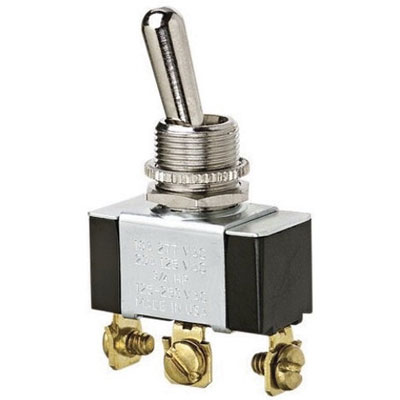

IDEAL 774009
MFG #774009
UPC #78325057348
SKU #2852815
Product description
IDEAL 774009 TOGGLE SWITCH SPDT MOMENTARY(ON)- -OFF-MOMENTARY(ON) 20AMP/125VAC 10AMP/277VAC 3/4HP 125/250VAC SCREW TERMINALS
IDEAL® Toggle Switch, Standard, 125/227 VAC, 20/10 A, 3/4 hp Power, SPDT ON-OFF-ON Contact Configuration, Factory Tested 100000 Cycles to 21 A 14.8 VDC Contact, 1 Pole, Toggle Actuator, Screw Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.13 in L x 0.57 in W x 0.61 in H Dimensions
IDEAL® Toggle Switch, Standard, 125/227 VAC, 20/10 A, 3/4 hp Power, SPDT ON-OFF-ON Contact Configuration, Factory Tested 100000 Cycles to 21 A 14.8 VDC Contact, 1 Pole, Toggle Actuator, Screw Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.13 in L x 0.57 in W x 0.61 in H Dimensions
- Power Tool and Motor Control Switch Applications
- IDEAL® Toggle Switch, Standard, 125/227 VAC, 20/10 A, 3/4 hp Power, SPDT ON-OFF-ON Contact Configuration, Factory Tested 100000 Cycles to 21 A 14.8 VDC Contact, 1 Pole, Toggle Actuator, Screw Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.13 in L x 0.57 in W x 0.61 in H Dimensions
- SWITCH TGL 125/227VAC 20/10A 3/4HP 1 TGL
- Product Catalog Page(s)
Specification Sheet
- RoHS Compliant|CSA Certified|UL Recognized
- Brand: Ideal IndustriesAction: SPDTActuator: ToggleAmperage Rating: 20, 10 AMPApplication: For Power Tool And Motor Control Switch ApplicationsConnection: Screw, 3 TerminalsContact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC RatingCountry of Origin: CHNMounting: 1/2 IN Hole DiameterNumber of Poles: 1Operating Cycles: 100000 Cycles Mechanical LifeOperating Temperature: 32 To 185 DEG FSize: 1.130 IN Length X 0.570 IN Width X 0.610 IN HeightStandard: RoHS Compliant|CSA Certified|UL RecognizedType: Standard, (On)-Off-(On)Voltage Rating: 125/227 VAC
