LEV 28W76
MFG #28W76
UPC #07847796903
SKU #3822337
Product description
LEV 28W76 30AMP 480VAC NEMA L16-30P 3POLE 4WIRE WATERTIGHT TWIST LOCK PLUG .625"-1.125" CORD DIAMETER YELLOW RUBBER IP66/67
Leviton®, 28W76, Locking Plug, 3-Phase Grounding Watertight Cable Mount, 480 VAC, 30 A, 3 Pole, 4 Wires, NEMA L16-30P NEMA Rating, Industrial Grade, IP67 Enclosure, 5/8 to 1-1/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 2.28 in Dia x 3.61 in L Dimensions
Leviton®, 28W76, Locking Plug, 3-Phase Grounding Watertight Cable Mount, 480 VAC, 30 A, 3 Pole, 4 Wires, NEMA L16-30P NEMA Rating, Industrial Grade, IP67 Enclosure, 5/8 to 1-1/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 2.28 in Dia x 3.61 in L Dimensions
- Industrial Applications
- Leviton®, 28W76, Locking Plug, 3-Phase Grounding Watertight Cable Mount, 480 VAC, 30 A, 3 Pole, 4 Wires, NEMA L16-30P NEMA Rating, Industrial Grade, IP67 Enclosure, 5/8 to 1-1/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 2.28 in Dia x 3.61 in L Dimensions

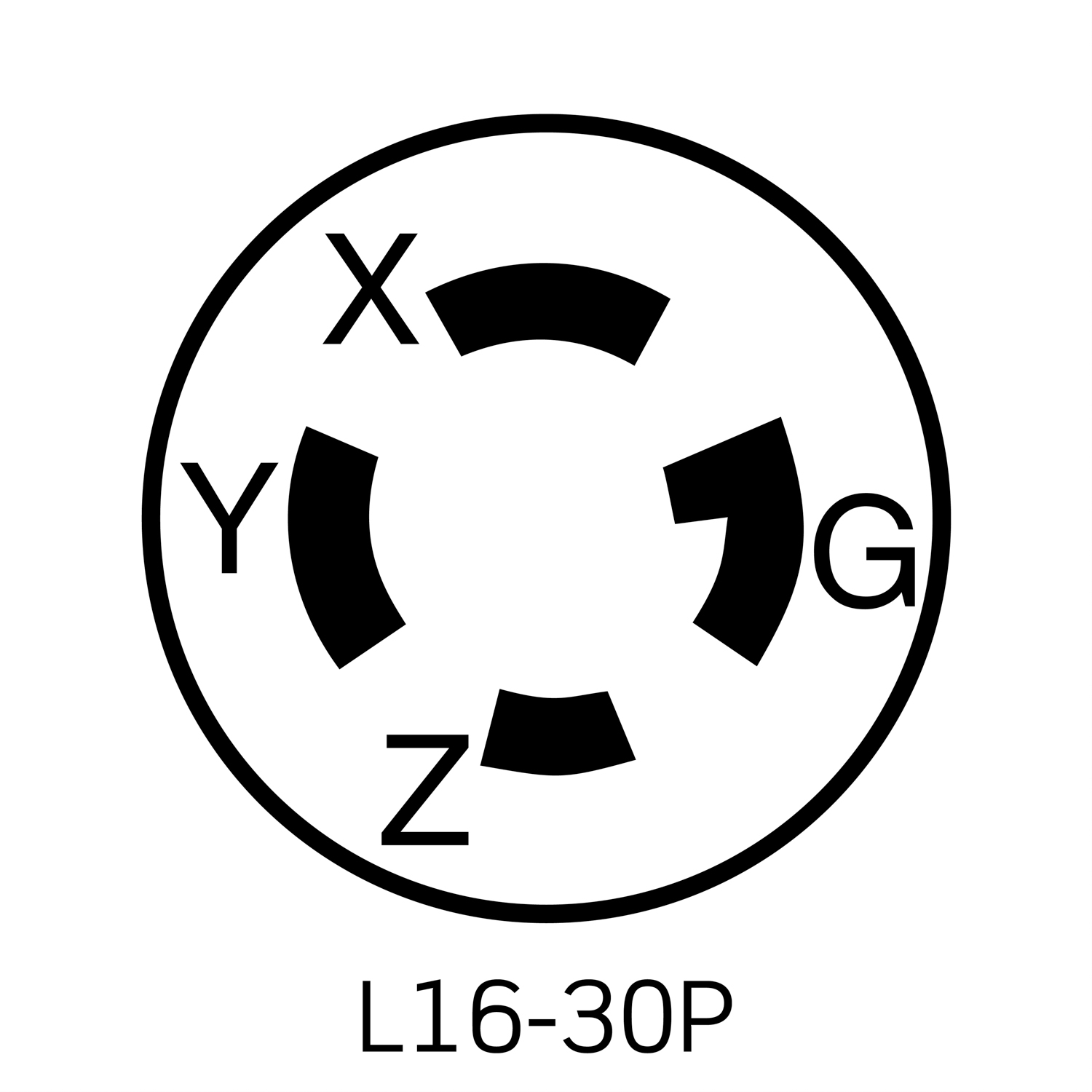

- PLUG LKG 480VAC 30A 3 4 YEL NEMA L16-30P
- Product Catalog Page(s)
MSDS
Specification Sheet
- ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498|UL94 V-2 Flammability Rating
- Brand: LevitonAmperage Rating: 30 AmpApplication: IndustrialColor: YellowConnection: Screw TerminalCord Type: SO;ST;STO;SOOCountry of Origin: MXEnvironmental Conditions: Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C)Material: TPVMounting: CableNEMA Rating: L16-30PNumber of Poles: 3Number Of Wires: 4Phase: 3Size: 2.28 Diameter X 3.61 L INStandard: ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498|UL94 V-2 Flammability Rating, NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498)Sub Brand: WetguardType: Watertight Plug;LockingVoltage Rating: 480Wire Size: 12-8
