ABBINC DP50C3P-1
MFG #DP50C3P-1
SKU #4293829
$801.62 per EA / EA
Product description

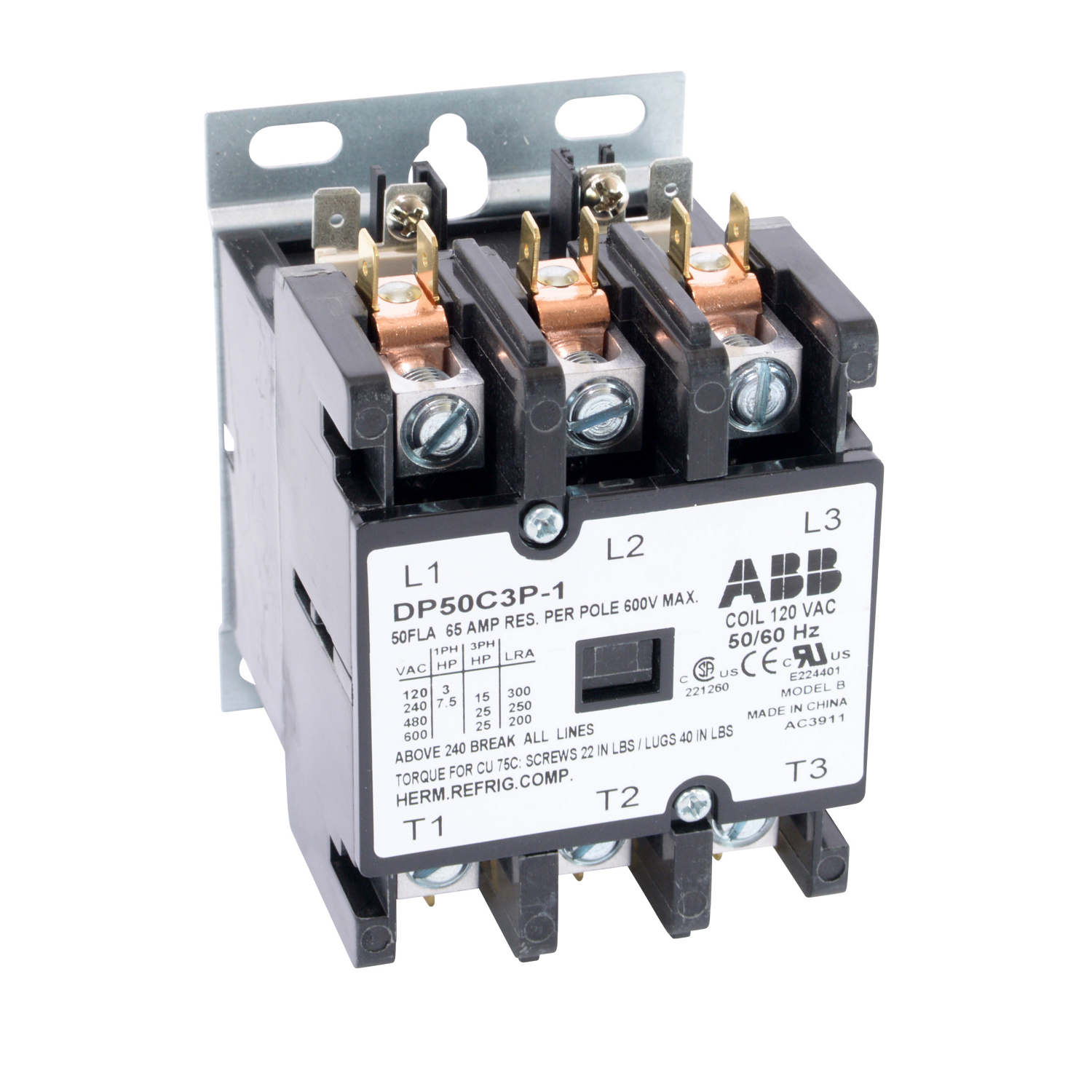

ABBINC DP50C3P-1 DP CONTR, 50A,3P,120VAC
ABB Definite Purpose Contactor, Non-Reversing, 120 VAC Coil, 50 A Maximum Load Current, 3, 7-1/2, 10, 20, 25 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO-SPDT Contact Configuration, Screw Terminal, 10000 Cycles Operating Cycles, -40 to 150 deg F Operating, Polyester, 95.8 mm H x 70 mm W x 83.7 mm D Dimensions
ABB Definite Purpose Contactor, Non-Reversing, 120 VAC Coil, 50 A Maximum Load Current, 3, 7-1/2, 10, 20, 25 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO-SPDT Contact Configuration, Screw Terminal, 10000 Cycles Operating Cycles, -40 to 150 deg F Operating, Polyester, 95.8 mm H x 70 mm W x 83.7 mm D Dimensions
- Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and Welding
- ABB Definite Purpose Contactor, Non-Reversing, 120 VAC Coil, 50 A Maximum Load Current, 3, 7-1/2, 10, 20, 25 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO-SPDT Contact Configuration, Screw Terminal, 10000 Cycles Operating Cycles, -40 to 150 deg F Operating, Polyester, 95.8 mm H x 70 mm W x 83.7 mm D Dimensions
- CONTACTOR PRP DEFINITE 120VAC 50A 3 SCR
- Product Catalog Page(s)
Specification Sheet
- BAA Compliant|CSA C22.2 No. 221260|CE/Semko Certified|EN60947-4-1:2001|UL 508
- Brand: ABB IncApplication: Designed for HVAC and refrigeration equipment operation and controlCoil Voltage: 120 V, 120V ACConnection: Box Lug TerminalContact Configuration: 3 NOCountry of Origin: CN, UKNMaximum Load Current: 50 AMPPhase: 1Size: 3.3, 4.15x2.75x3.56Special Features: Industry standard mounting plate with easy access mounting holesStandard: UL, CSAType: Contactors
