ADV 71A8172-001D
MFG #71A8172-001D
UPC #78108781721
SKU #20320
38 in Stock
Stock Item
More available 04/24/2026
$121.53/EA
Product description

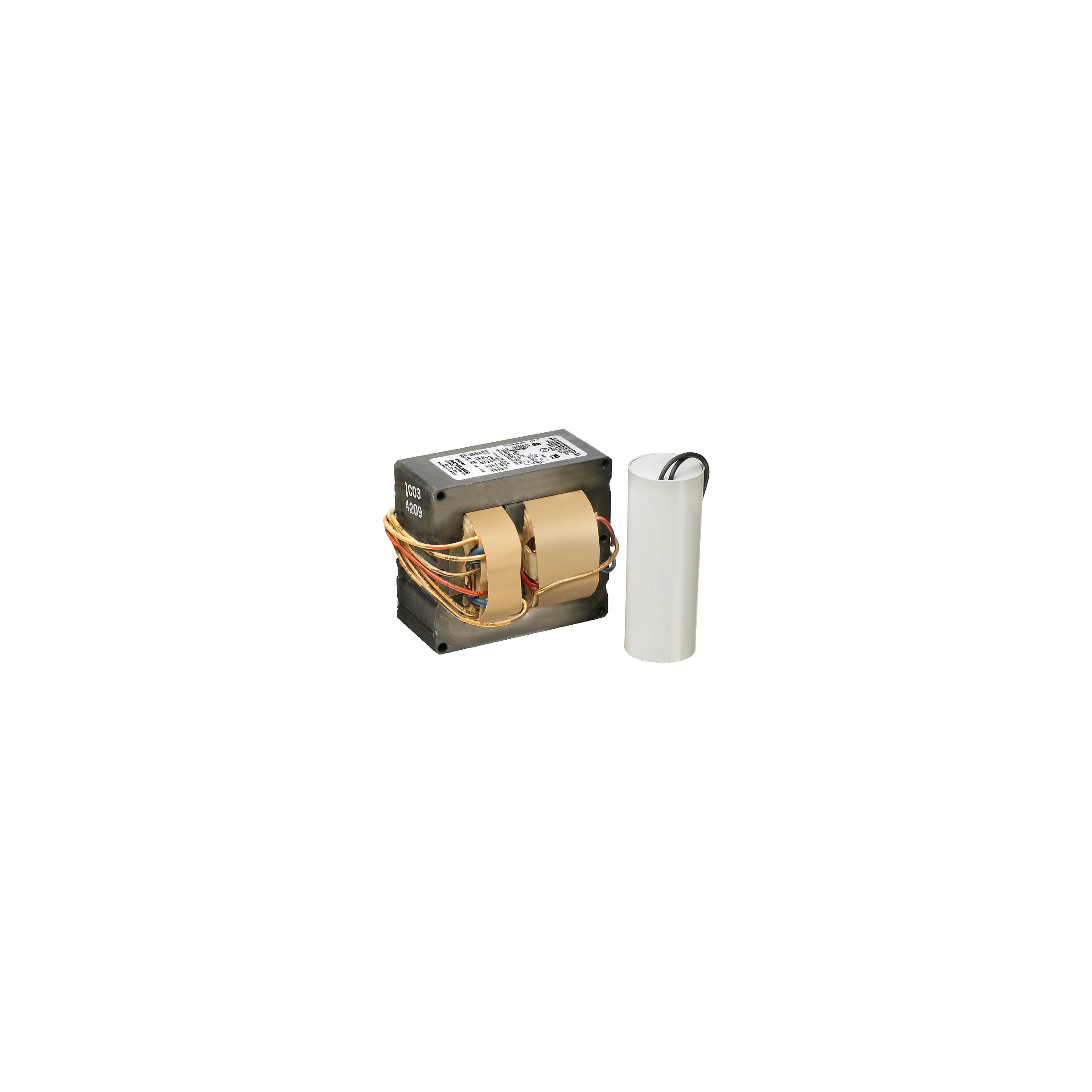

ADV 71A8172-001D 150WATT 120/208/240/277VAC HIGH PRESSURE SODIUM HID BALLAST CORE & COIL ANSI CODE S55
Advance HID Ballast, Magnetic Core and Coil/HX-HPF, High Pressure Sodium Lamp, 150 W Lamp, 190 W, 120/208/240/277 VAC, 1.3/1.4/1.6/2.8 A, 60 Hz, Pulse Start, -40 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, Ballast Factor: 1, ANSI S55 Ballast Grade, 4 in L x 4.2 in W x 2.9 in H
Advance HID Ballast, Magnetic Core and Coil/HX-HPF, High Pressure Sodium Lamp, 150 W Lamp, 190 W, 120/208/240/277 VAC, 1.3/1.4/1.6/2.8 A, 60 Hz, Pulse Start, -40 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, Ballast Factor: 1, ANSI S55 Ballast Grade, 4 in L x 4.2 in W x 2.9 in H
- For lighting luminaire component and outdoor applications
- Advance HID Ballast, Magnetic Core and Coil/HX-HPF, High Pressure Sodium Lamp, 150 W Lamp, 190 W, 120/208/240/277 VAC, 1.3/1.4/1.6/2.8 A, 60 Hz, Pulse Start, -40 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, Ballast Factor: 1, ANSI S55 Ballast Grade, 4 in L x 4.2 in W x 2.9 in H
- Stranded wire
HX-HPF circuit
3 x 4 in core
12 in L wire by color
Magnetic HID ballast
105 deg C igniter temperature
14 Mfd, 280 VAC, 105 deg C capacitor
1.65 in Dia x 2.75 in capacitor
2.8/1.6/1.4/1.25 A (open circuit), 2/1.15/1/0.85 A (starting), 1.15 to 1.75/0.65 to 1/0.55 to 0.85/0.5 to 0.75 A (short circuit), 3.95 to 4.85 a secondary short circuit current
Constant wattage deviation within trapezoid
Remote wiring configuration allowed
2 ft ballast lamp distance remote wiring
Dry cap type capacitor
- BALLAST HID HP SODIUM 150W PLS 1 190W NO
- Product Catalog Page(s)
Specification Sheet
- BAA Compliant|CSA Certified|UL Listed|UL Recognized
- Brand: Advance Flourescent & HID BallastANSI Code: S55Application: Lighting Luminaire ComponentBallast Factor: 1Country of Origin: CNDimmable: NoFrequency Rating: 60 HzHeight: 1.65 INLamp Type: HIGH PRESSURE SODIUMLength: 4 inNumber of Lamps: 1Power Factor: 0.90Special Features: Capacitor Type: DRY CAPStandard: BAA Compliant|CSA Certified|UL Listed|UL RecognizedStart Type: PULSEThermal Protection: Class PType: Magnetic HIDVoltage Rating: 120/208/240/277 VWattage: 150 WWidth: 1.1 IN
