BURN 1PL2/02
MFG #1PL2/02
UPC #78181028748
SKU #3827241
200 in Stock
Stock Item
More available 05/05/2026
$20.34/EA
Product description
BURN 1PL2/02 BLKTAP SGL 2 PRTS 2/0-14

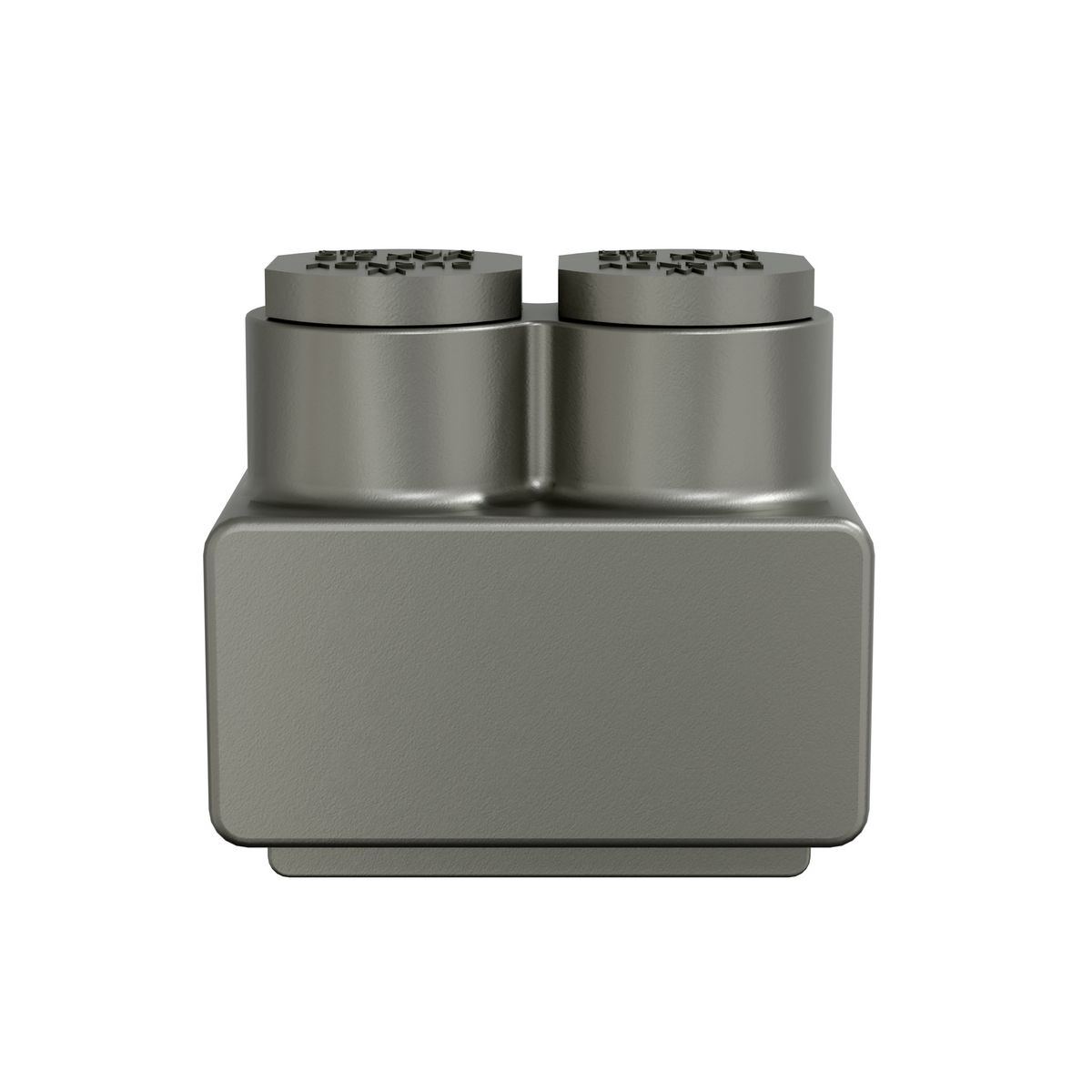

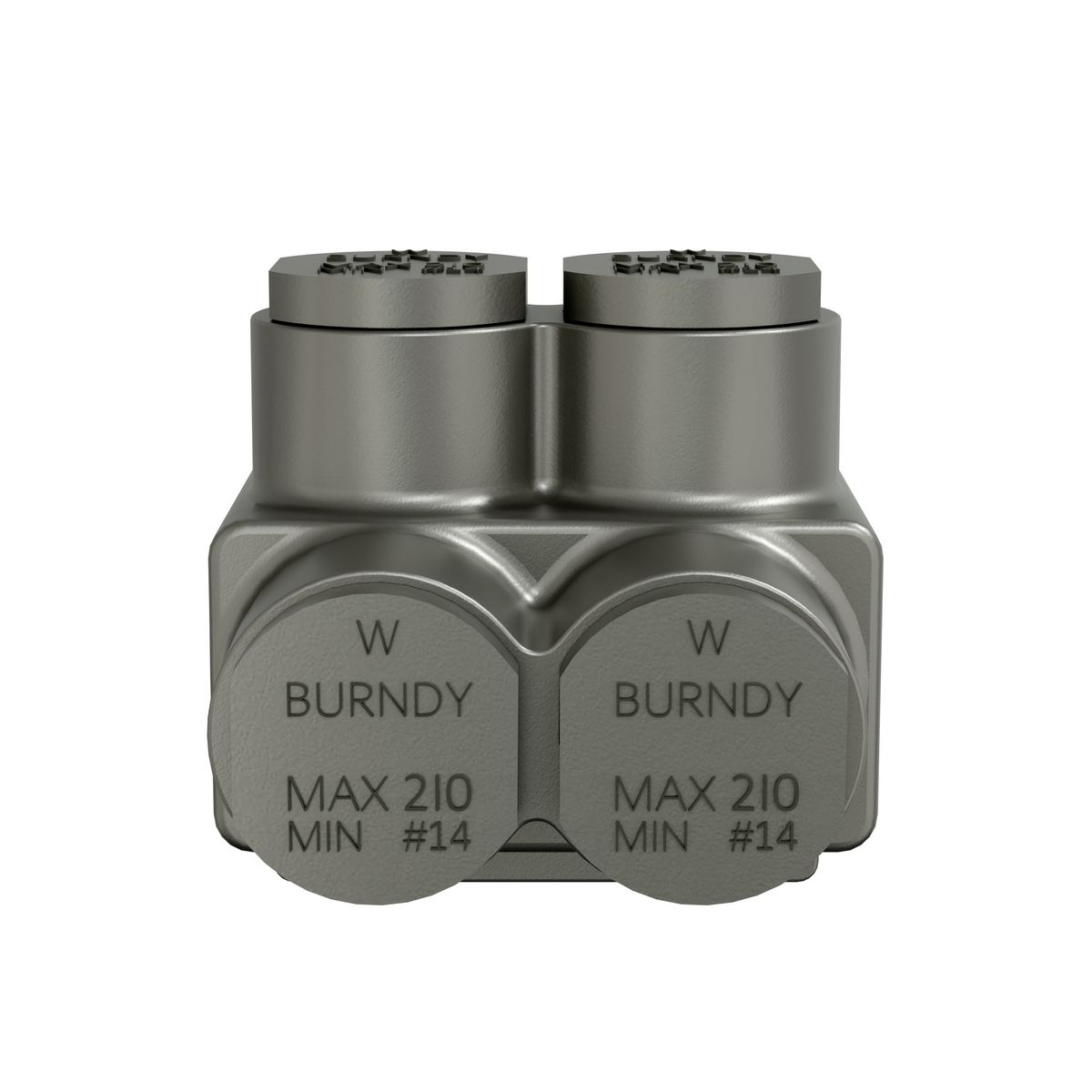

BURNDY® UNITAP™ Multi-Tap Connector, 1-Sided Entry, Series: BIBS, 14 to 2/0 AWG Conductor, 600 VAC, Aluminum/Copper Stranded Conductor, Specifications: 3/16 in Hex Key, 120 in-lb Torque Multi-Port, 194 deg F, Aluminum, 1.52 in L x 1.4 in W x 1.38 in H Dimensions
BURNDY® UNITAP™ Multi-Tap Connector, 1-Sided Entry, Series: BIBS, 14 to 2/0 AWG Conductor, 600 VAC, Aluminum/Copper Stranded Conductor, Specifications: 3/16 in Hex Key, 120 in-lb Torque Multi-Port, 194 deg F, Aluminum, 1.52 in L x 1.4 in W x 1.38 in H Dimensions
- For copper or stranded aluminum and indoor applications
- BURNDY UNITAP Multi-Tap Connector, 1-Sided Entry, Series: BIBS, 14 to 2/0 AWG Conductor, 600 VAC, Aluminum/Copper Stranded Conductor, Specifications: 3/16 in Hex Key, 120 in-lb Torque Multi-Port, 194 deg F, Aluminum, 1.52 in L x 1.4 in W x 1.38 in H Dimensions
- Oxide inhibitor pre-installed which inhibits moisture and contaminants from entering the contact area
Range taking capability reduces the number of connectors carried in inventory
Two ports
Unplated
14 to 2/0 AWG stranded copper, 8 to 2/0 AWG aluminum
- CONNECTOR MULTI-TAP 14 TO 2/0AWG AL
- Product Catalog Page(s)
MSDS
Specification Sheet
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Brand: BurndyApplication: For Indoor Use Only, Copper Or Stranded AluminumConductor Size: 14-2/0 AWGCountry of Origin: USMaterial: AluminumSize: 1.52 in x 1.4 in x 1.38 inSub Brand: UNITAPTemperature Rating: 194° FType: BIBS, Multi-PortVoltage Rating: 600 V
