BURN CL50-1TN
MFG #CL50-1TN
UPC #78181035234
SKU #3833622
Product description
BURN CL50-1TN LAYIN LUG DIRECT BURIAL COPPER STAINLESS STEEL SCREW #14-#4AWG TIN PLATED COMMONLY USED FOR SOLAR PANEL GROUNDING * Not Returnable per Mfg *

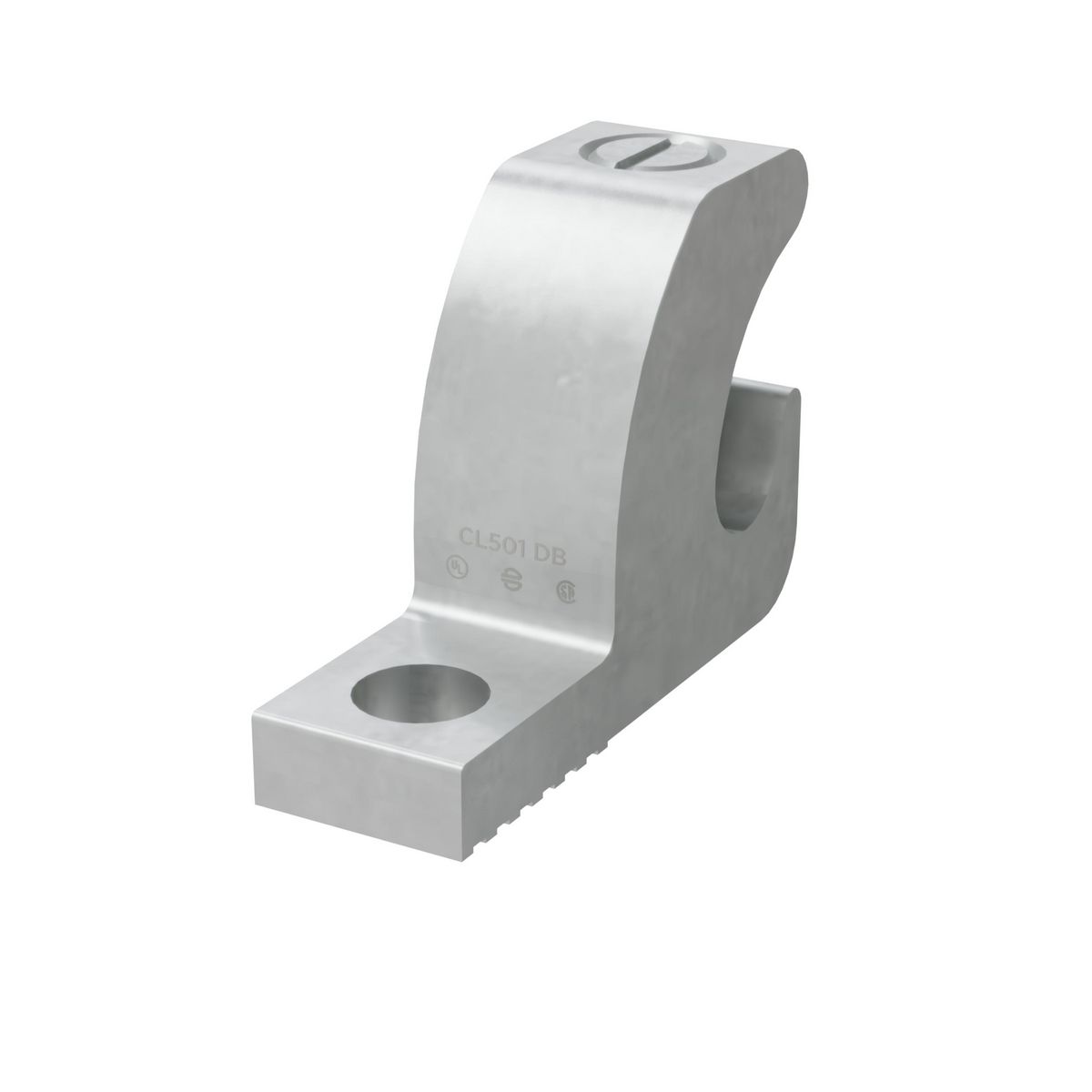

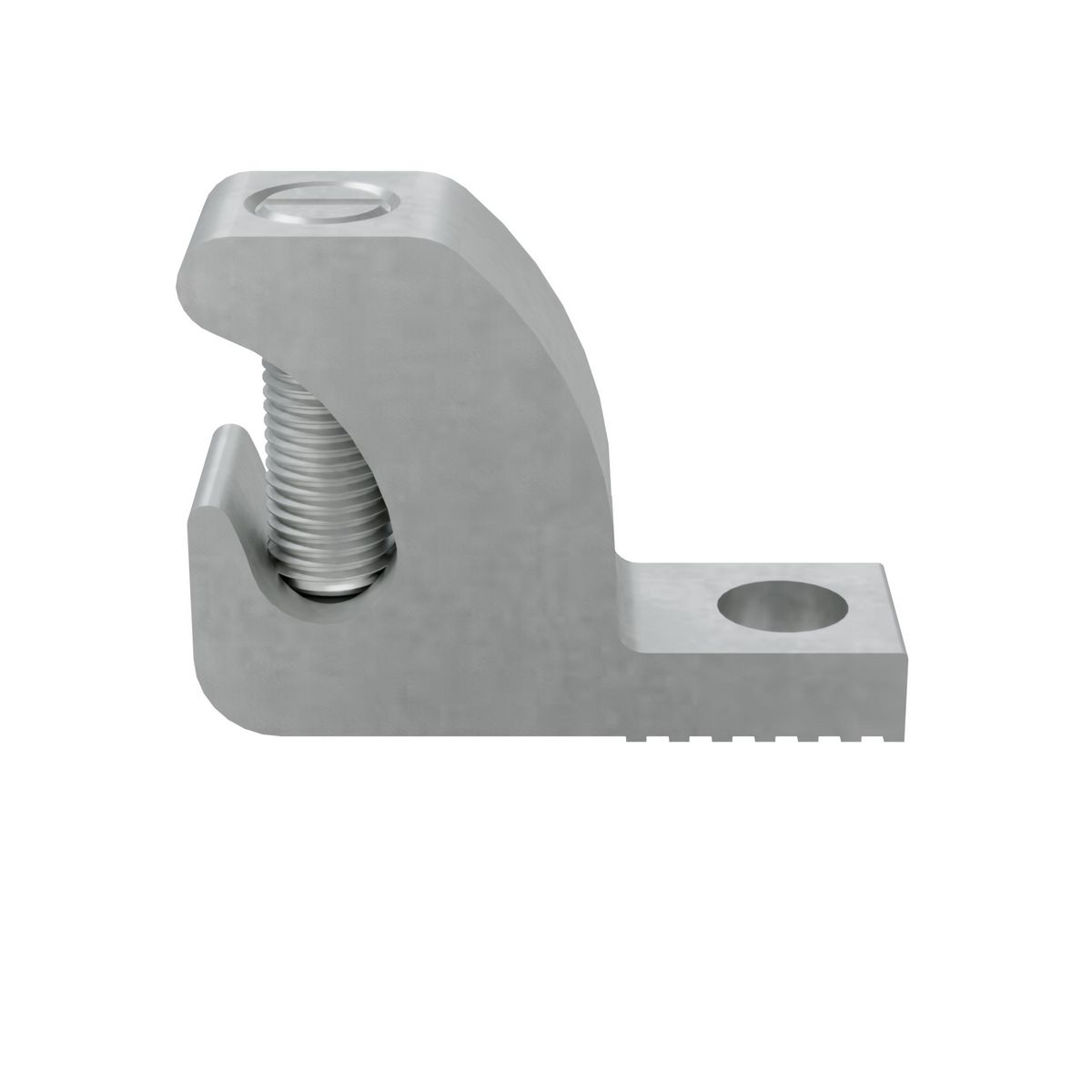

BURNDY® QIKLUG™ Lug, Lay-In Open Faced, Solid/Stranded Copper Conductor, 14 to 4 AWG Conductor, 17/64 in Stud, 0.38 in W x 0.2 in THK Tongue, Specifications: 1/4 in Bolt Size, 0.22 in Hole Size, Slotted Set Screw Connection, Copper/Stainless Steel, Tin Plated, 1.13 in L x 0.38 in W x 0.85 in H Dimensions
BURNDY® QIKLUG™ Lug, Lay-In Open Faced, Solid/Stranded Copper Conductor, 14 to 4 AWG Conductor, 17/64 in Stud, 0.38 in W x 0.2 in THK Tongue, Specifications: 1/4 in Bolt Size, 0.22 in Hole Size, Slotted Set Screw Connection, Copper/Stainless Steel, Tin Plated, 1.13 in L x 0.38 in W x 0.85 in H Dimensions
- For direct burial in earth or concrete and solar panel grounding applications
- BURNDY® QIKLUG™ Lug, Lay-In Open Faced, Solid/Stranded Copper Conductor, 14 to 4 AWG Conductor, 17/64 in Stud, 0.38 in W x 0.2 in THK Tongue, Specifications: 1/4 in Bolt Size, 0.22 in Hole Size, Slotted Set Screw Connection, Copper/Stainless Steel, Tin Plated, 1.13 in L x 0.38 in W x 0.85 in H Dimensions
- Stainless steel hardware
Manufactured from high strength pure electrolytic copper to ensure maximum strength and conductivity
Open faced design allows for fast lay-in of the conductor without the need for cutting or breaking
TN version is tin plated, commonly used for solar panel grounding
Slot set screw
- LUG 14 TO 4AWG SOL/STRD COPPER 17/64IN
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|RoHS Compliant|UL 467|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Brand: BurndyApplication: For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, For Solar Panel GroundingConductor Range (Main/Primary): 14 - 4 AWG CopperCountry of Origin: CAFinish: Tin PlatedMaterial: CopperSub Brand: QIKLUGType: Open-Faced
