BURN YAZ342N
MFG #YAZ342N
UPC #78181020862
SKU #3931417
2 in Stock
Special Order Item. Minimum purchase may be required.
More available 07/19/2026
$97.31/EA
Product description

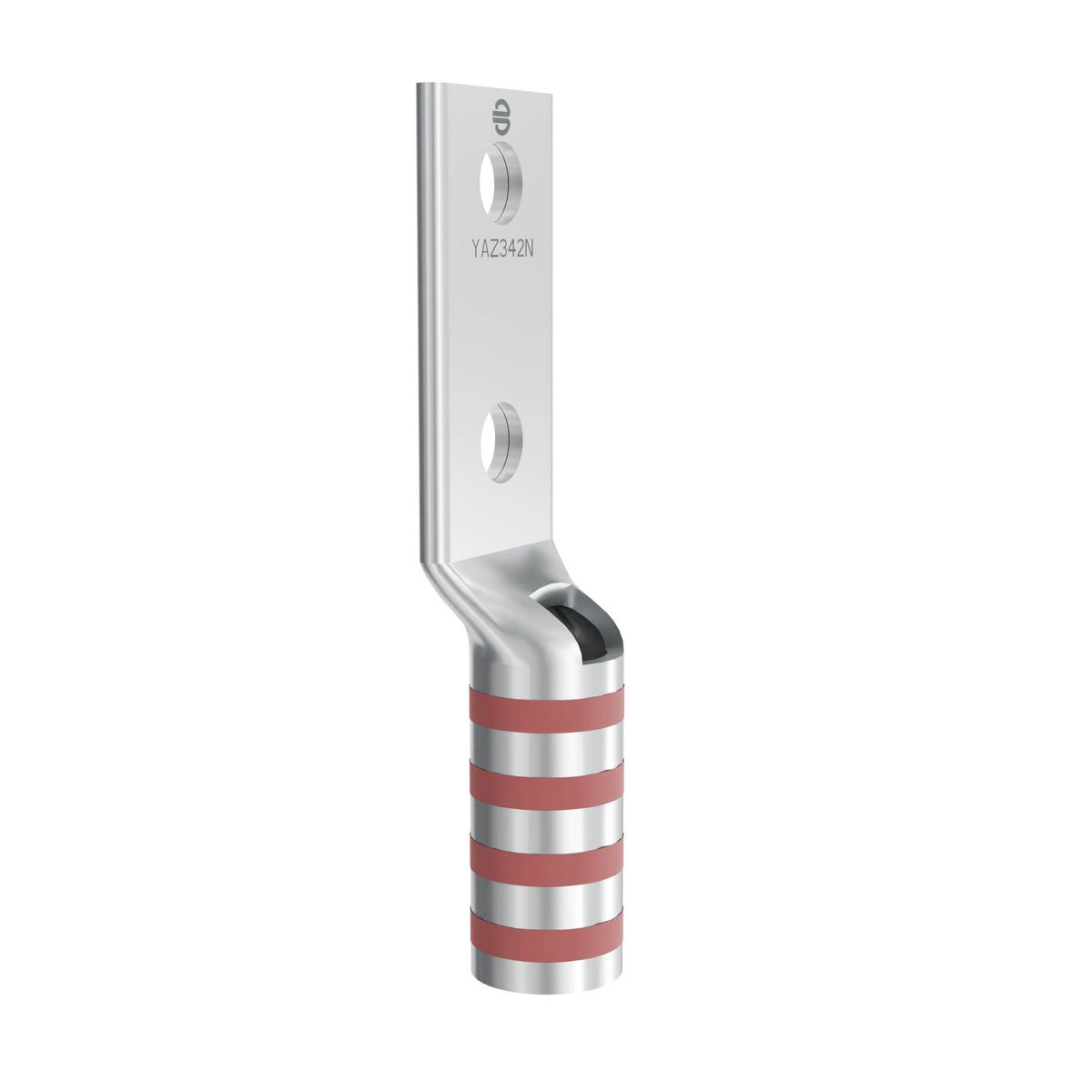

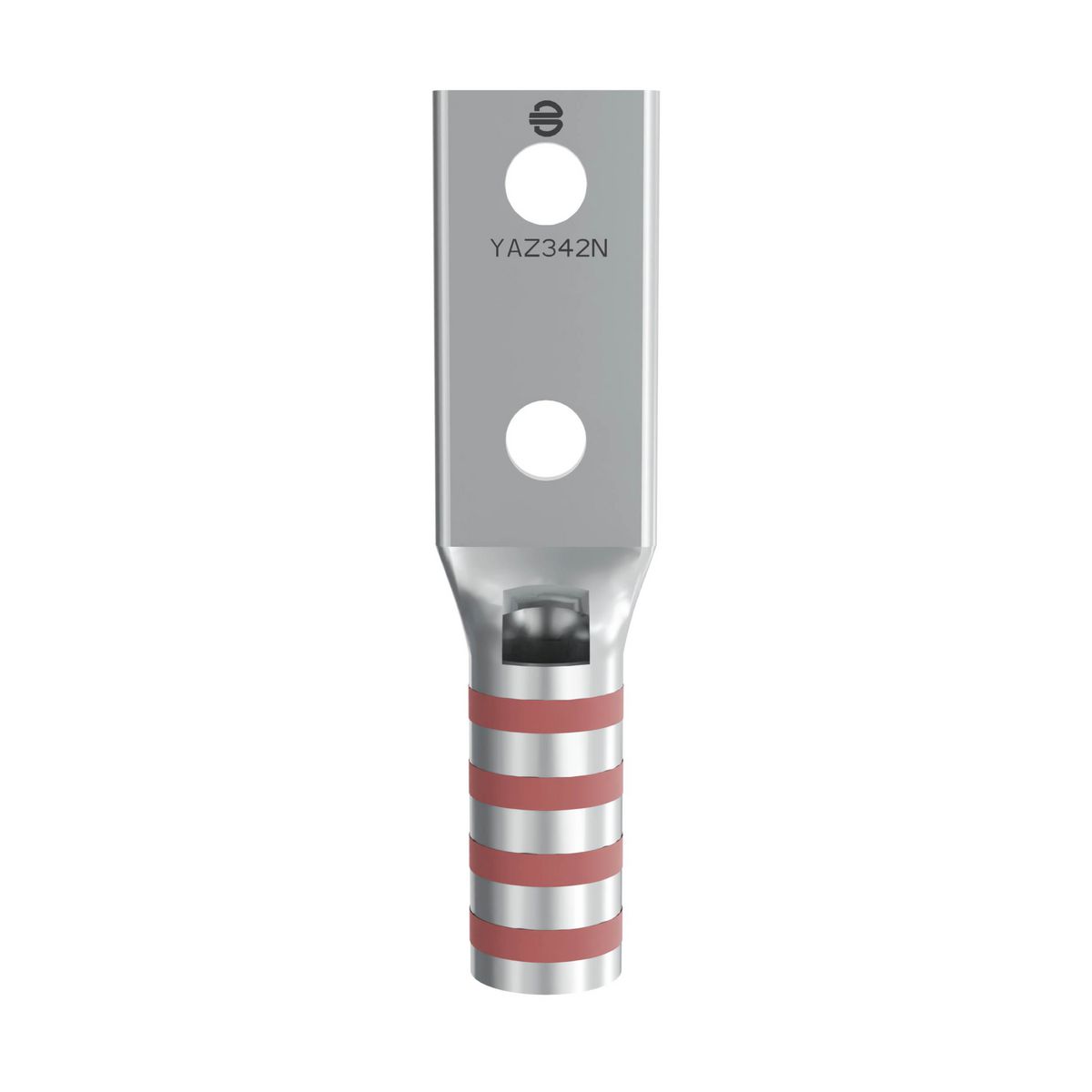

BURN YAZ342N 500 CU-LONG-OPEN-2 NEMA
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YAZ-2N, Copper Conductor, 500 kcmil Conductor, Die Code: 20/299, 600 VAC to 35 kV, 1/2 in Stud, Straight Tongue, 1.55 in W x 0.23 in THK Tongue, 6.04 in Overall Length, Long/Skived Barrel, 2-1/4 in L Barrel, 2-5/16 in L Wire Strip, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Brown
BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YAZ-2N, Copper Conductor, 500 kcmil Conductor, Die Code: 20/299, 600 VAC to 35 kV, 1/2 in Stud, Straight Tongue, 1.55 in W x 0.23 in THK Tongue, 6.04 in Overall Length, Long/Skived Barrel, 2-1/4 in L Barrel, 2-5/16 in L Wire Strip, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Brown
- For code conductor
- BURNDY® HYLUG™ Compression Lug, 2-Hole, Series: YAZ-2N, Copper Conductor, 500 kcmil Conductor, Die Code: 20/299, 600 VAC to 35 kV, 1/2 in Stud, Straight Tongue, 1.55 in W x 0.23 in THK Tongue, 6.04 in Overall Length, Long/Skived Barrel, 2-1/4 in L Barrel, 2-5/16 in L Wire Strip, 1-3/4 in Hole Spacing, 90 deg C, Tin Plated Copper, Brown
- LUG COMPRESSION 500KCMIL COPPER
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|RoHS Compliant|UL468A/468B|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|UL 486A|UL 486B|Buy American Act Compliant
- Brand: BurndyApplication: Wire TerminationCable Size: 500 KCMIL, 240 SQ-MM For Class 2 ConductorCountry of Origin: MXMaterial: CopperMounting: 1-3/4 IN Stud Hole SpacingNumber of Holes: 2Standard: UL 486A-486BStud Size: 0.5 inSub Brand: HYLUGType: Long Barrel, Skive, Tin PlatedVoltage Rating: 35 kV
