GEDI THQL22020
MFG #THQL22020
UPC #78316401296
SKU #1220484
Product description

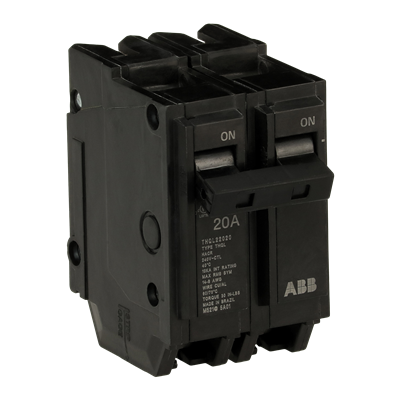

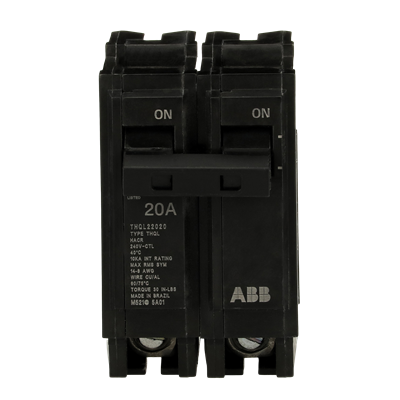

GE THQL22020 20A 2P 240V PLUGIN BRKR 1-INCH * Not Returnable per Mfg *
GE Q-Line® Molded Case Circuit Breaker, Type THQL Compact, 240 VAC, 20 A, 50 to 60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic/LI/Non-Interchangeable Trip, 2 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 2 in W x 2-3/8 in D x 3-9/32 in H Dimensions, Plastic
GE Q-Line® Molded Case Circuit Breaker, Type THQL Compact, 240 VAC, 20 A, 50 to 60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic/LI/Non-Interchangeable Trip, 2 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 2 in W x 2-3/8 in D x 3-9/32 in H Dimensions, Plastic
- Residential, Commercial, Electrical Distribution and Control Applications
- GE Q-Line® Molded Case Circuit Breaker, Type THQL Compact, 240 VAC, 20 A, 50 to 60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic/LI/Non-Interchangeable Trip, 2 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 2 in W x 2-3/8 in D x 3-9/32 in H Dimensions, Plastic
- Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in ON position
VERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
10 kA at 120 VAC, 10 kA at 120/240 VAC, 10 kA at 240 VAC interrupt rating
- BREAKER CKT CASE MLD 240VAC 20A 10KA
- Product Catalog Page(s)
Specification Sheet
- HACR Rated|UL File No. E11592
- Brand: Industrial Conn & Solutions (GE)Amperage Rating: 20 AApplication: Thermal MagneticCountry of Origin: UKNFrame: Q-LineInterrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac / 10kA@240 VacLoad Rating: HACRNumber of Poles: 2Standard: E11592Sub Brand: Q LineTrip Range: Non-InterchangeableTrip Type: LIType: Circuit breakersVoltage Rating: 240 V
