LEV 15378-C
MFG #15378-C
UPC #07847779598
SKU #3887346
Product description

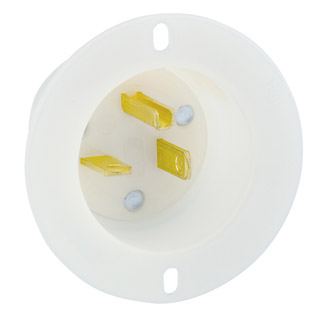

LEV 15378-C #1CD/FLANGED INLET
Leviton®, 15378-C, Inlet Receptacle, Grounding, 125 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions
Leviton®, 15378-C, Inlet Receptacle, Grounding, 125 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions
- Commercial Applications
- Leviton®, 15378-C, Inlet Receptacle, Grounding, 125 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions
- RECEPTACLE INL FLANGED BL STR 125VAC 20A
- Product Catalog Page(s)
MSDS
Specification Sheet
- ANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596 File No. E13393|UL94 V-2 Flammability Rating
- Brand: LevitonAmperage Rating: 20 AMPApplication: CommercialColor: WhiteConnection: Back WiredCountry of Origin: MXDielectric Strength: 2000 (Min.)Environmental Conditions: Flammability (Rated V-2 per UL94)Material: NylonMounting: FlangeNEMA Rating: 5-20PNumber of Poles: 2Number Of Wires: 3Phase: 1 PHSize: 2.50 Dia x 1.78 H INStandard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393);UL Listed 498 (File E13399)Temperature Rating: -40 to +60 DEG CType: Straight Blade;Flanged InletVoltage Rating: 125Wire Size: 18-10
