LEV 16342-W
MFG #16342-W
UPC #07847778826
SKU #2722657
43 in Stock
Stock Item
More available 08/26/2026
$11.19/EA
Product description

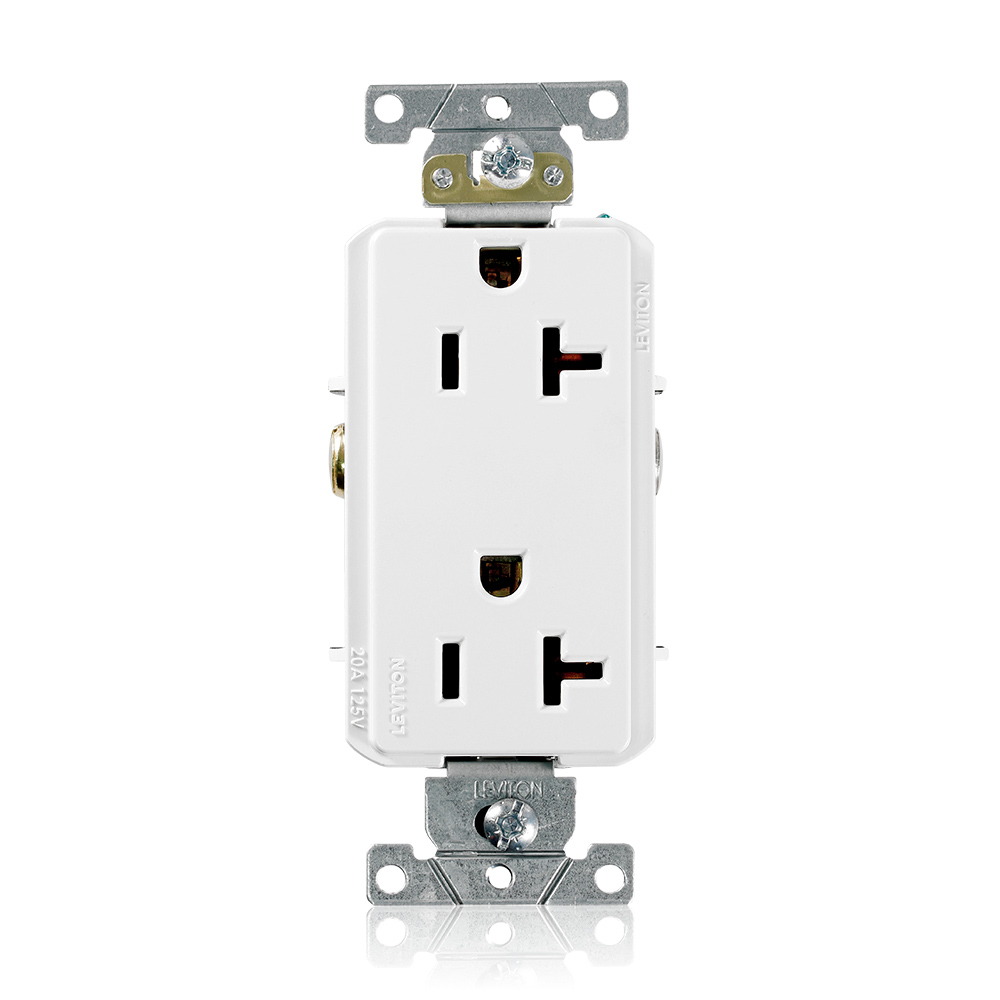

LEV 16342-W 20AMP WHITE 125VAC NEMA5-20R 2POLE 3WIRE SIDE WIRED ONLY DUPLEX DECORA PLUS RECEPTACLE COMMERCIAL/ SPECIFICATION GRADE
Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.52 in W x 1.14 in D Dimensions
Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.52 in W x 1.14 in D Dimensions
- Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.52 in W x 1.14 in D Dimensions
- RECEPTACLE DX BL STR 125VAC 20A 2 3 WHT
- Product Catalog Page(s)
MSDS
Specification Sheet
- CSA C22.2 No. 42 (File LR406)|NOM (057)|UL 498 File No. E13399|UL 94 Flammability Rating
- Brand: LevitonAmperage Rating: 20 AMPApplication: CommercialColor: WhiteConnection: Side WiredCountry of Origin: MXDielectric Strength: 2000 (Min.)Environmental Conditions: Flammability (Rated V-2 per UL94)Material: ThermoplasticMounting: Wall BoxNEMA Rating: 5-20RNumber of Poles: 2Number Of Wires: 3Phase: 1Size: 46 H x 1.52 W x 1.14 D INSpecial Features: Commercial Grade, Self GroundingStandard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399)Sub Brand: Decora PlusTemperature Rating: -40 to +60 DEG CType: Straight Blade;Duplex OutletVoltage Rating: 125Wire Size: 14-10
