LEV 2460
MFG #2460
UPC #07847704546
SKU #3860389
Product description
LEV 2460 IND LKG RECPT

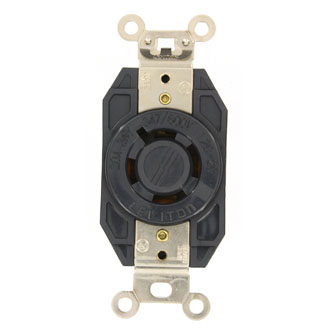

Leviton®, 2460, Locking Receptacle, 3-Phase Y Non-Grounding, 347/600 VAC, 20 A, 4 Pole, 4 Wires, NEMA L20-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Leviton®, 2460, Locking Receptacle, 3-Phase Y Non-Grounding, 347/600 VAC, 20 A, 4 Pole, 4 Wires, NEMA L20-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
- Industrial Applications
- Leviton®, 2460, Locking Receptacle, 3-Phase Y Non-Grounding, 347/600 VAC, 20 A, 4 Pole, 4 Wires, NEMA L20-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
- RECEPTACLE LKG 347/600VAC 20A 4 4 BK
- Product Catalog Page(s)
MSDS
Specification Sheet
- NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
- Brand: LevitonAmperage Rating: 20 AMPApplication: IndustrialColor: BlackConnection: Back Wired;Side WiredCountry of Origin: MXDielectric Strength: 2000 (Min.)Environmental Conditions: Flammability (Rated V-2, Rated V-0 per UL94)Material: PBTMounting: BoxNEMA Rating: L20-20RNumber of Poles: 4Number Of Wires: 4Phase: 3Size: 3.63 H x 1.69 W x 1.31 D INStandard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498Sub Brand: V-0-MaxTemperature Rating: -40 to +60 DEG CType: Flush Mount Locking ReceptacleVoltage Rating: 347;600Wire Size: 14-8
