LEV 5262-SI
MFG #5262-SI
UPC #07847714111
SKU #4036255
Product description
LEV 5262-SI 15AMP IVORY 125VAC NEMA5-15R 2POLE 3WIRE BACK/SIDE WIRED DUPLEX RECEPTACLE HEAVY DUTY SPECIFICATION GRADE

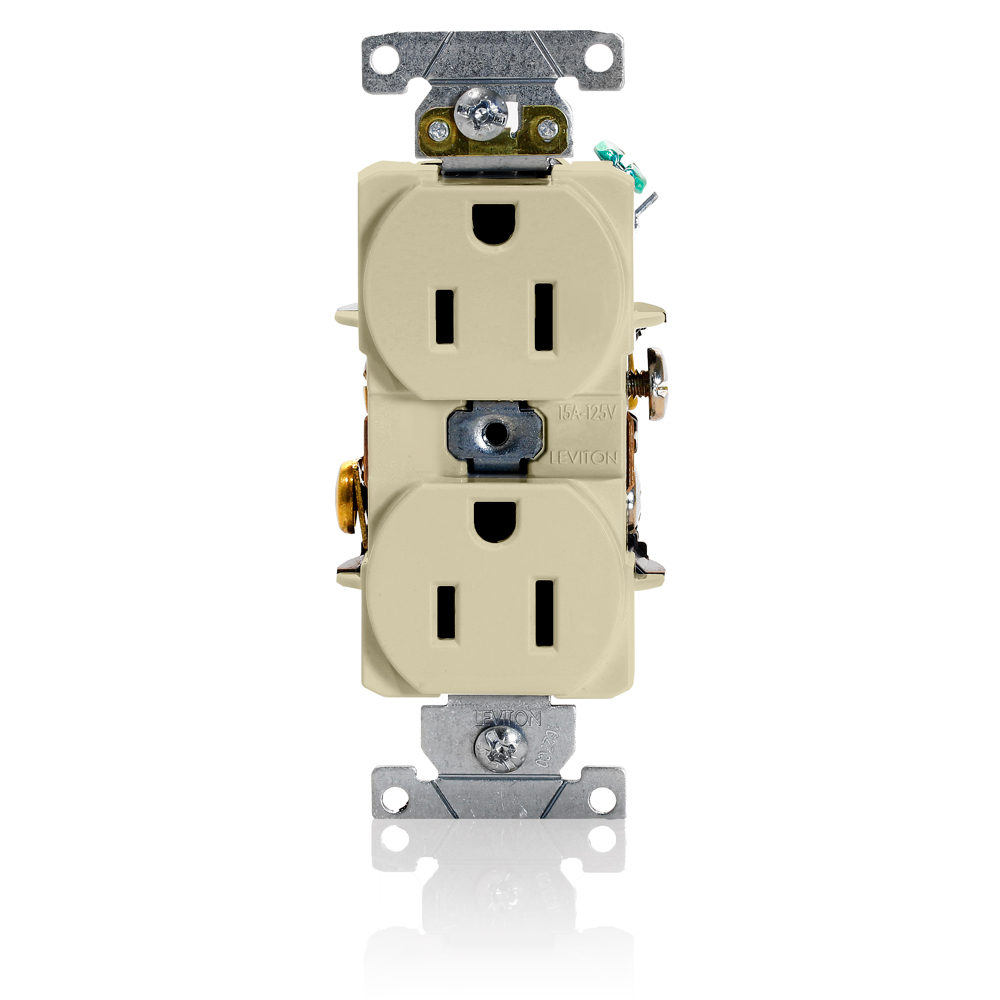

Leviton®, 5262-SI, Straight Blade Duplex Receptacle, Heavy Duty Narrow Body, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 4.06 in H x 1.33 in W x 19 in D Dimensions
Leviton®, 5262-SI, Straight Blade Duplex Receptacle, Heavy Duty Narrow Body, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 4.06 in H x 1.33 in W x 19 in D Dimensions
- Commercial Applications
- Leviton®, 5262-SI, Straight Blade Duplex Receptacle, Heavy Duty Narrow Body, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 4.06 in H x 1.33 in W x 19 in D Dimensions
- RECEPTACLE DX BL STR 125VAC 15A 2 3 INDL
- Product Catalog Page(s)
MSDS
Specification Sheet
- ANSI (C-73)|CSA C22.2 No. 42 File No. 152105|NOM Certified|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL94 Flammability Rating
- Brand: LevitonAmperage Rating: 15 AMPApplication: CommercialColor: IvoryConnection: Back and Side WiredCountry of Origin: MXDielectric Strength: 2000 (Min.)Environmental Conditions: Flammability (Rated V-2 per UL94)Material: ThermoplasticMounting: Wall BoxNEMA Rating: 5-15RNumber of Poles: 2Number Of Wires: 3Phase: 1Size: 46 H x 1.33 W x 19 D INStandard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)Temperature Rating: -40 to +60 DEG CType: Straight Blade;Duplex OutletVoltage Rating: 125Wire Size: 14-10
