LEV 5462
MFG #5462
UPC #07847781936
SKU #4105746
Product description

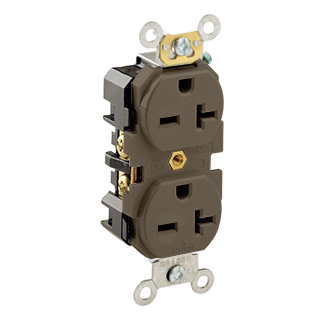

LEV 5462 LEVITON 20A 250V NEMA 6-20R INDUSTRIAL HD SPEC GRADE DUPLEX PECEPTACLE
Leviton®, 5462, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 46 in H x 1.53 in W x 1.11 in D Dimensions
Leviton®, 5462, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 46 in H x 1.53 in W x 1.11 in D Dimensions
- Leviton®, 5462, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 46 in H x 1.53 in W x 1.11 in D Dimensions
- RECEPTACLE BL STR 250VAC 20A 2 3 BR 2HP
- Product Catalog Page(s)
MSDS
Specification Sheet
- NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
- Brand: LevitonAmperage Rating: 20 AMPApplication: CommercialColor: BrownConnection: Back and Side WiredCountry of Origin: MXDielectric Strength: 2000 (Min.)Environmental Conditions: Flammability (Rated V-2 per UL94)Material: ThermoplasticMounting: Wall BoxNEMA Rating: 6-20RNumber of Poles: 2Number Of Wires: 3Phase: 1Size: 46 H x 1.53 W x 1.11 D INStandard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)Temperature Rating: -40 to +60 DEG CType: Straight Blade;Duplex OutletVoltage Rating: 250Wire Size: 14-10
