LEV 7310-B
MFG #7310-B
UPC #07847782161
SKU #3808809
Product description
LEV 7310-B #2CD/LKG RECPT

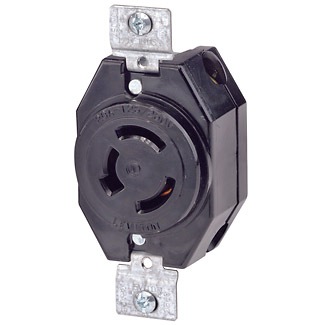

Leviton® Locking Receptacle, Non-Grounding Single, 125/250 VAC, 20 A, 3 Pole, 3 Wires, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Black, 3.62 in H x 1.7 in W x 1.43 in D Dimensions
Leviton® Locking Receptacle, Non-Grounding Single, 125/250 VAC, 20 A, 3 Pole, 3 Wires, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Black, 3.62 in H x 1.7 in W x 1.43 in D Dimensions
- Commercial Applications
- Leviton® Locking Receptacle, Non-Grounding Single, 125/250 VAC, 20 A, 3 Pole, 3 Wires, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Black, 3.62 in H x 1.7 in W x 1.43 in D Dimensions
- Non-NEMA rated
18 to 10 AWG terminal accommodation
Flush mount
- RECEPTACLE LKG 125/250VAC 20A 3 3 BK NYL
- Product Catalog Page(s)
MSDS
Specification Sheet
- UL 498 E13399|CSA C22.2 No. 42 LR-406|NOM 057 Approved|NEMA WD-1|WD-6|UL 94 V-2
- Brand: LevitonAmperage Rating: 20 AMPApplication: CommercialColor: BlackConnection: Back Wired;Side WiredCountry of Origin: MXDielectric Strength: 2000 (Min.)Environmental Conditions: Flammability (Rated V-2 per UL94)Material: NylonMounting: BoxNEMA Rating: Non-NEMANumber of Poles: 3Number Of Wires: 3Size: 3.62 H x 1.70 W x 1.43 D INSpecial Features: #2CD, Non-NEMA, Industrial Grade, Non-GroundingStandard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399)Temperature Rating: -40 to +60 DEG CType: Locking Single ReceptacleVoltage Rating: 125;250Wire Size: 18-10
