LEV 7582
MFG #7582
UPC #07847782156
SKU #3975880
Product description
LEV 7582 #2CD/LOCKING RECEPT

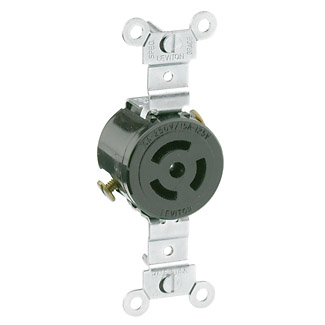

Leviton® Locking Receptacle, Single Non-Grounding, 125/250 VAC, 10/15 A, 3 Pole, 3 Wires, Commercial Grade, -40 to 60 deg C, Nylon, Black, 46 in H Dimensions
Leviton® Locking Receptacle, Single Non-Grounding, 125/250 VAC, 10/15 A, 3 Pole, 3 Wires, Commercial Grade, -40 to 60 deg C, Nylon, Black, 46 in H Dimensions
- Commercial Applications
- Leviton Locking Receptacle, Extra Heavy Duty Non-Grounding Single, 125/250 VAC, 10/15 A, 3 Pole, 3 Wires, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon, Black, 46 in H Dimensions
- RECEPTACLE LKG 125/250VAC 10/15A 3 3 BK
- Product Catalog Page(s)
MSDS
Specification Sheet
- NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42/LR406|UL 498 File No. E13399|UL94 V-2 Flammability Rating
- Brand: LevitonAmperage Rating: 15;10 AMPApplication: CommercialColor: BlackConnection: Side WiredCountry of Origin: MXDielectric Strength: 2000 (Min.)Environmental Conditions: Flammability (Rated V-2 per UL94)Material: NylonMounting: BoxNEMA Rating: Non-NEMANumber of Poles: 3Number Of Wires: 3Size: 46 H INStandard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399)Temperature Rating: -40 to +60 DEG CType: Locking Single ReceptacleVoltage Rating: 125;250Wire Size: 14-8
