MERSEN A4BT601
MFG #A4BT601
UPC #78200193999
SKU #3786287
Product description

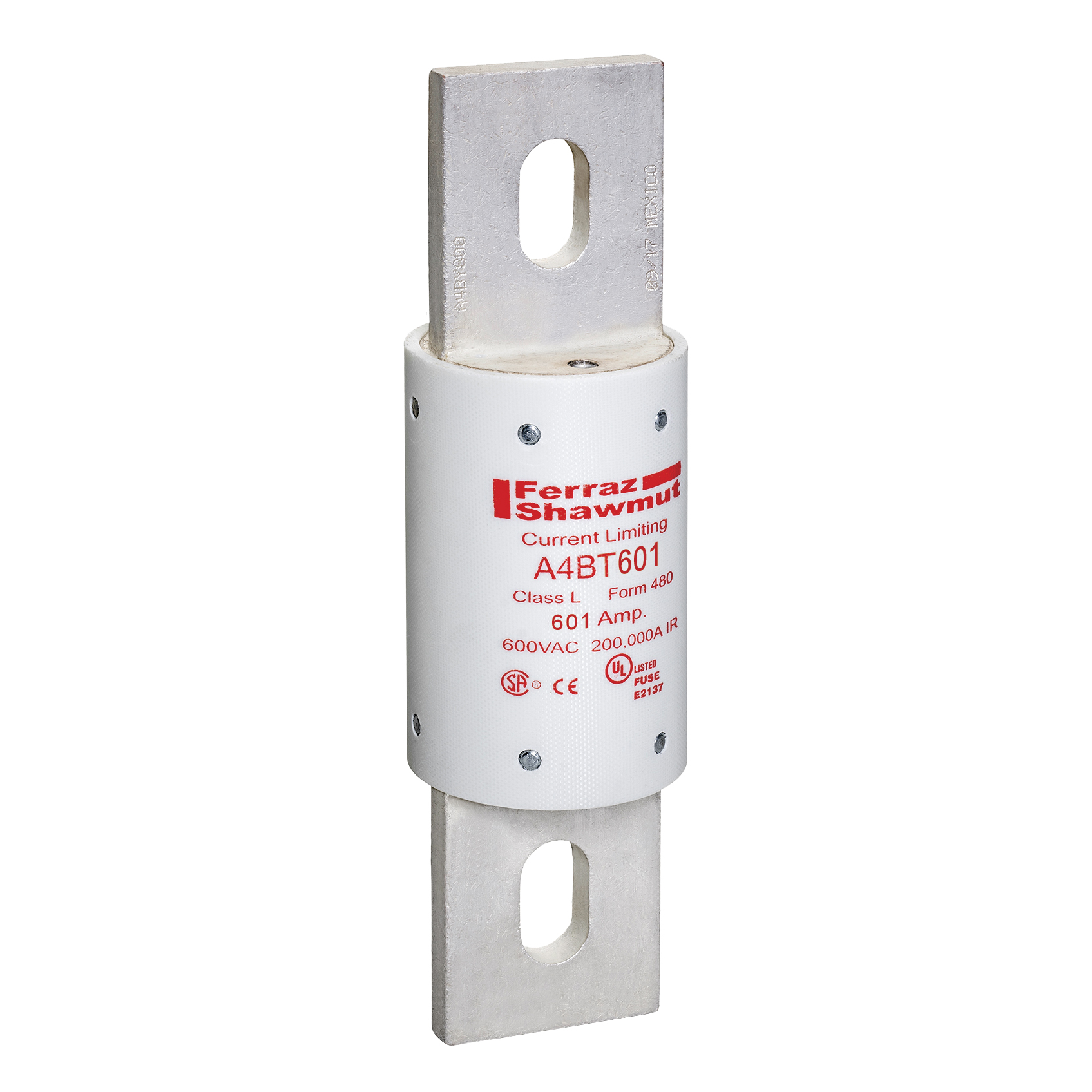

MERSEN A4BT601 600V 601A L TD FUSE
Mersen AMP-TRAP® Power Fuse, Low Voltage North American Style Time Delay, Series: A4BT, Rejection, 601 A, 600 VAC/500 VDC, 100/200 kA Interrupt, Class: L, Blade Terminal, Bolted-On Mounting, Cylindrical Body, GMG, 2.38 in Dia x 8.63 in L Body
Mersen AMP-TRAP® Power Fuse, Low Voltage North American Style Time Delay, Series: A4BT, Rejection, 601 A, 600 VAC/500 VDC, 100/200 kA Interrupt, Class: L, Blade Terminal, Bolted-On Mounting, Cylindrical Body, GMG, 2.38 in Dia x 8.63 in L Body
- Motors, Motor Controllers, Transformers, Mains and Feeders
- Mersen AMP-TRAP® Power Fuse, Low Voltage North American Style Time Delay, Series: A4BT, Rejection, 601 A, 600 VAC/500 VDC, 100/200 kA Interrupt, Class: L, Blade Terminal, Bolted-On Mounting, Cylindrical Body, GMG, 2.38 in Dia x 8.63 in L Body
- FUSE PWR 601A 600 VAC/500 VDC 100/200KA
- Product Catalog Page(s)
Specification Sheet
- RoHS Compliant|UL 248-10 Guide JDDZ File No. E2137|CSA C22.2 File No. 248.10|Class 1422-02 File No. 012636_0_000
- Brand: Mersen Ferraz Shawmut Chase FusesAmperage Rating: 601 AApplication: Motors Motor controllers Transformers Mains FeedersClass: Class LConnection: BladeCountry of Origin: MXInterrupt Rating: 200 kAMaterial: GMGMounting: BoltedResponse Time: Time-DelaySize: 8.63 x 3 inSpecial Features: Unique dimensions prevent replacement by other fuse classes. Blade-stamped catalog numbers for permanent identification Glass melamine body and plated terminals provide superior reliability in harsh environmentsStandard: UL Listed to Standard 248-10, File E2137 CSA Certified to Standard C22.2, No. 248.68 Self-certified for DC per UL248 (601-2000)Sub Brand: Amp-Trap®Type: Class LVoltage Rating: 600 VAC
