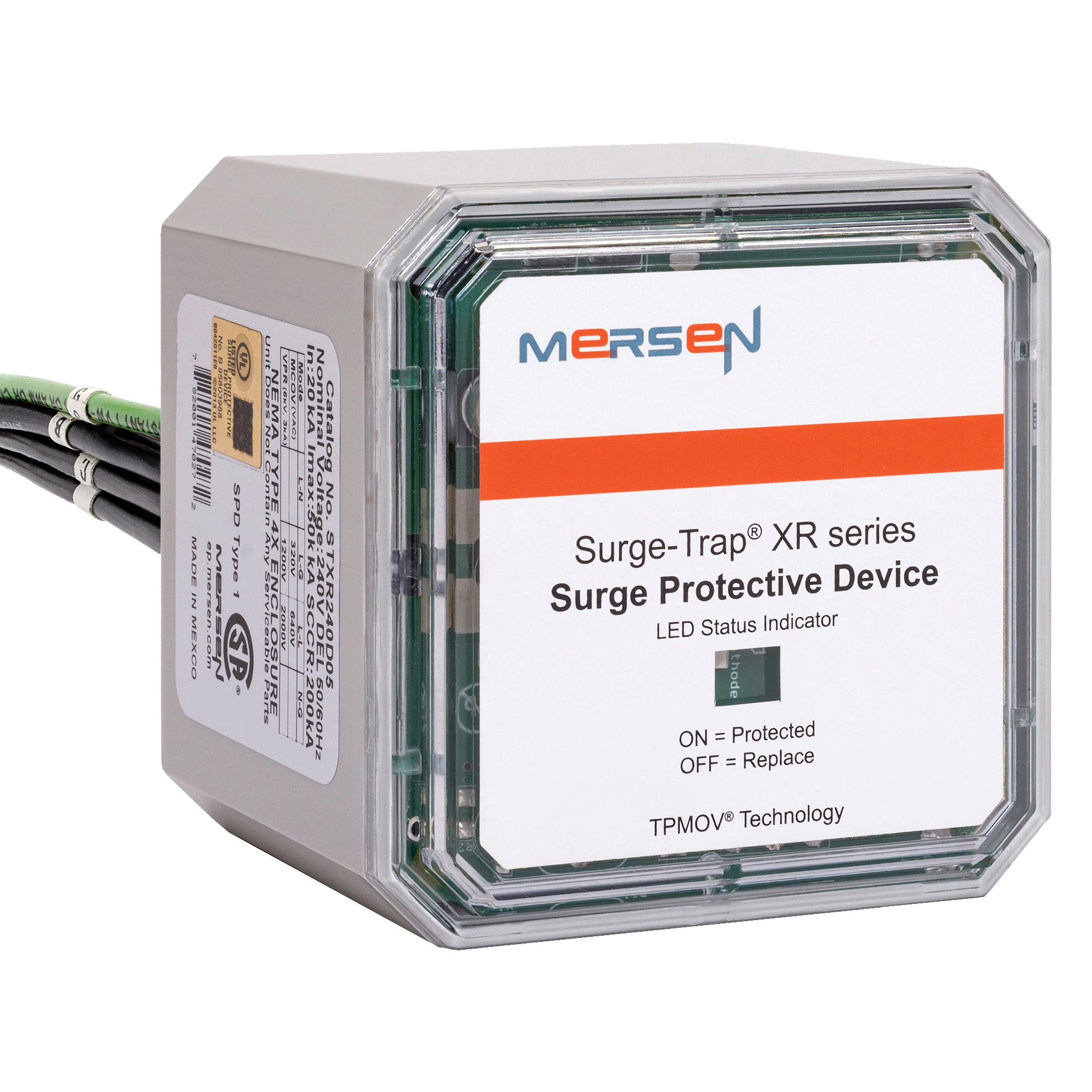

MERSEN STXR240D05
MFG #STXR240D05
UPC #78200146990
SKU #4303776
Product description

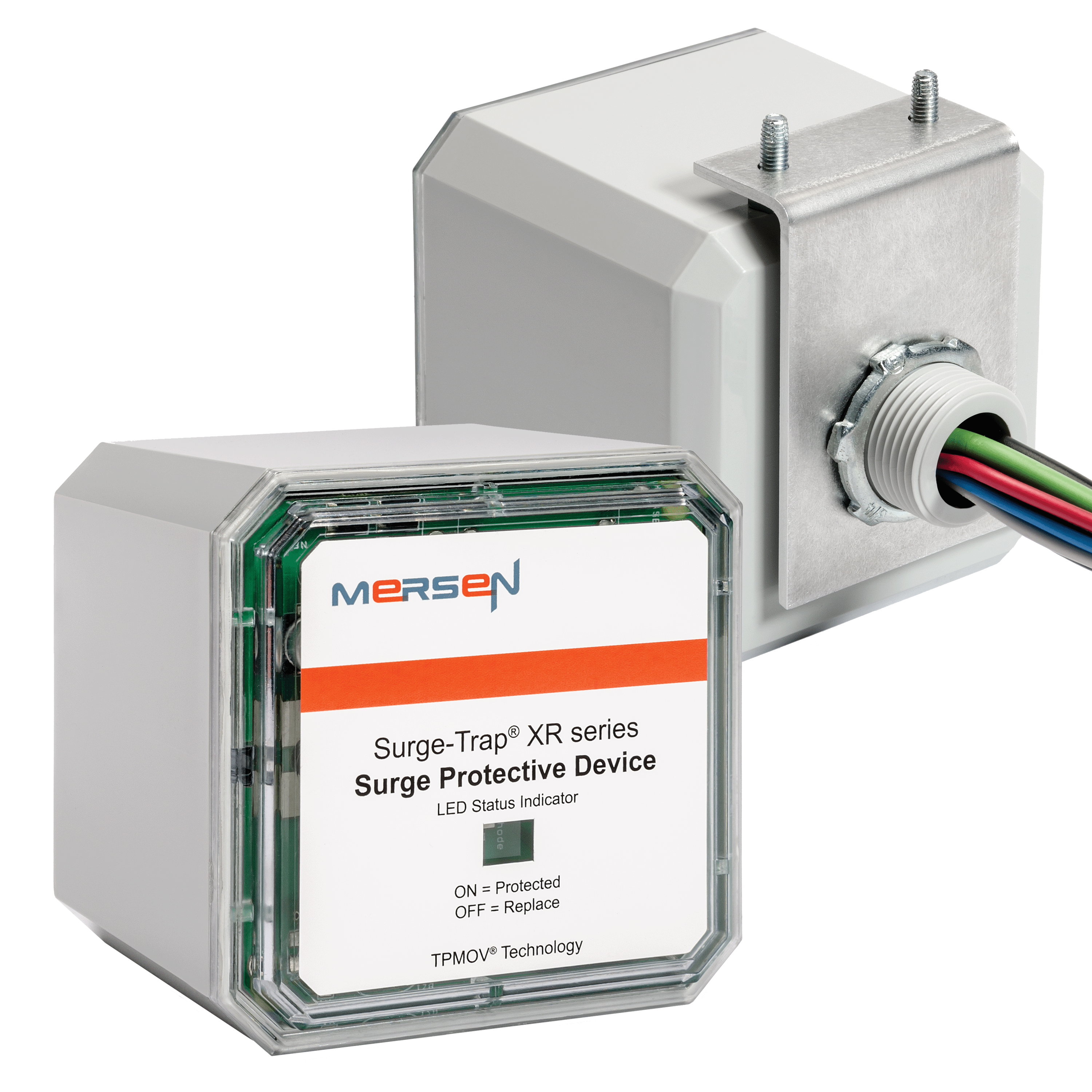

MERSEN STXR240D05 XR T1 50KA 240V DELTA FACTORY NON-STOCK, NON-RETURNABLE
Mersen Surge-Trap® Surge Protective Device, Series: STXR, 240 Delta VAC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L, LED/Remote Audible Alarm Indicator, 3 ph, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, NEMA 4X Enclosure, Panel Mounting, Pre-Wire Terminal, Aluminum/Polycarbonate, 3.35 in W x 3.35 in D Dimensions
Mersen Surge-Trap® Surge Protective Device, Series: STXR, 240 Delta VAC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L, LED/Remote Audible Alarm Indicator, 3 ph, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, NEMA 4X Enclosure, Panel Mounting, Pre-Wire Terminal, Aluminum/Polycarbonate, 3.35 in W x 3.35 in D Dimensions
- For indoor/outdoor and type 1 or 2 SPD applications
- Mersen Surge-Trap® Surge Protective Device, Series: STXR, 240 Delta VAC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L, LED/Remote Audible Alarm Indicator, 3 ph, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, NEMA 4X Enclosure, Panel Mounting, Pre-Wire Terminal, Aluminum/Polycarbonate, 3.35 in W x 3.35 in D Dimensions
- DEVICE PROT SRG 240 DELTA VAC 50/60HZ 3
- Specification Sheet
- RoHS Compliant|ANSI/UL 1449 File No. E210793|CSA C22.2 Class 9091-02 File No. 162842|ANSI/IEEE C62.41.1, C62.41.2, C62.45|UL96A|UL94-5VA Flammability Rating
- Brand: Mersen Ferraz Shawmut Chase FusesApplication: Branch panel and/or individual equipment protection Commercial and Industrial Distribution Panels Control PanelsConnection: Pre-wiredCountry of Origin: MXFrequency Rating: 50/60 HzInsulation: PolycarbonateMaterial: PolycarbonateMounting: Panel MountPhase: 3-Phase DeltaShort Circuit Rating: 200 kAStandard: ANSI/UL 1449 5th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD UL96A Lightning Protection RoHS CompliantSub Brand: Surge-Trap®Type: NEMA UL CSA TYPE 1Type Of Indicators: LEDVoltage Rating: 240 V
