OZ X-50
MFG #X-50
SKU #4359146
$28.09 per EA (1) / EA
1 in Stock. More available 08/16/2024
Special Order Item. Minimum purchase may be required.
Product description
OZ X-50 1/2 IN IRON COND BODY TYPE X FACTORY NON-STOCK, NON-RETURNABLE

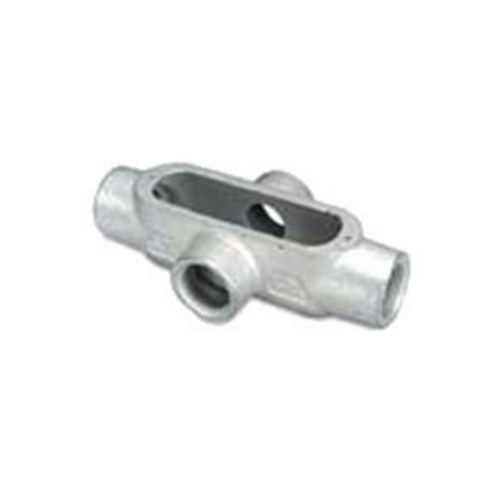

O-Z/Gedney Spec 5 Conduit Outlet Body, Type X, 1/2 in Hub, 4 Hubs, 6 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Zinc Electroplated/Aluminum Enamel Finish, 5-3/8 in L x 2-3/4 in W x 1-3/8 in H Dimensions
O-Z/Gedney Spec 5 Conduit Outlet Body, Type X, 1/2 in Hub, 4 Hubs, 6 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Zinc Electroplated/Aluminum Enamel Finish, 5-3/8 in L x 2-3/4 in W x 1-3/8 in H Dimensions
- Rigid/IMC Conduit Applications
- O-Z/Gedney Spec 5 Conduit Outlet Body, Type X, 1/2 in Hub, 4 Hubs, 6 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Zinc Electroplated/Aluminum Enamel Finish, 5-3/8 in L x 2-3/4 in W x 1-3/8 in H Dimensions
- BODY OUT CONDUIT 1/2IN 4 6CU-IN SURF MI
- Product Catalog Page(s)
Specification Sheet
- UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)
- Brand: OZ GedneyApplication: For Rigid Conduit And IMCConnection: Tapered FNPTCountry of Origin: MXFinish: AluminumHeight: 1.375 inHub Size: 0.5 inLength: 5-3/8 inMaterial: Malleable IronStandard: Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10Sub Brand: Spec 5Type: Type X Conduit BodyWidth: 2.75 in
