PS 2087-LA
MFG #2087-LA
UPC #78500703638
SKU #4116680
Product description

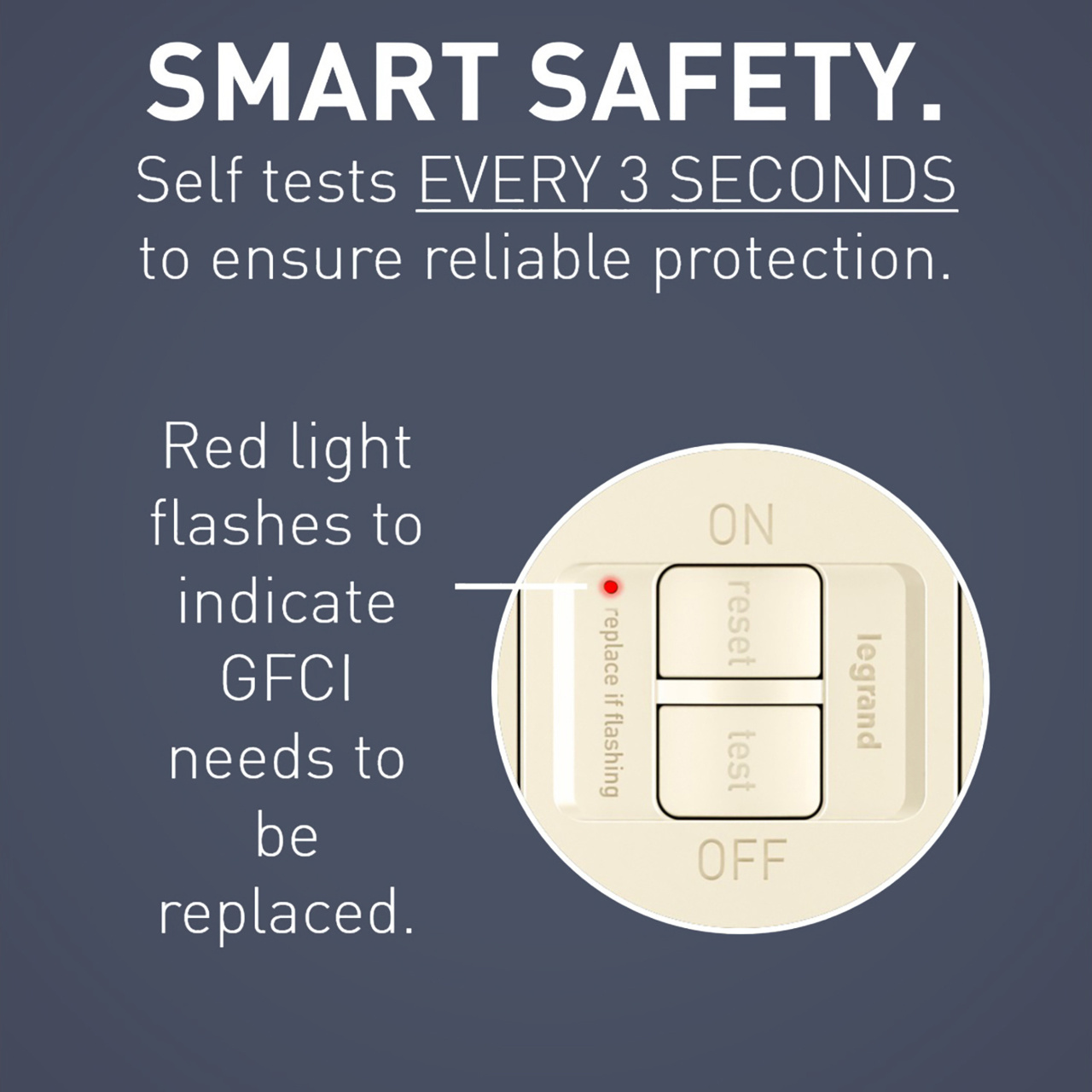

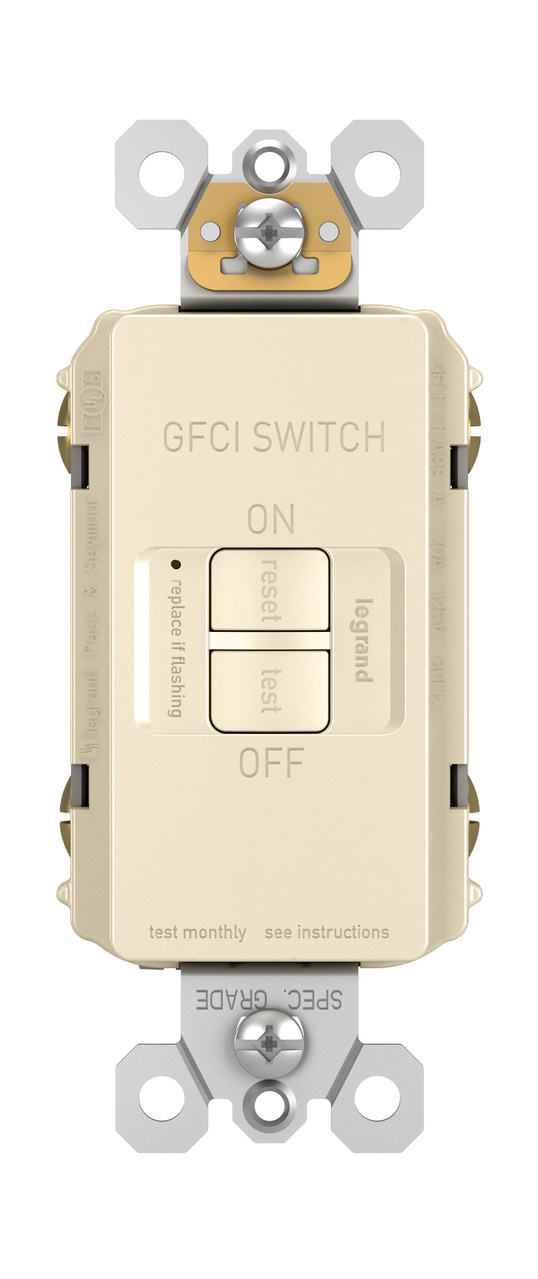

PS 2087-LA SELF-TEST GFCI DEAD FRONT 20A 125V LA
Pass & Seymour® Radiant® GFCI Receptacle, Dead Front Self-Test, Series: 2087, 125 VAC, 20 A, 1-1/2 hp, 60 Hz Frequency, 2 Pole, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
Pass & Seymour® Radiant® GFCI Receptacle, Dead Front Self-Test, Series: 2087, 125 VAC, 20 A, 1-1/2 hp, 60 Hz Frequency, 2 Pole, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling, Commercial and Residential Applications
- Pass & Seymour Radiant GFCI Receptacle, Dead Front Self-Test, Series: 2087, 125 VAC, 20 A, 1-1/2 hp, 60 Hz Frequency, 2 Pole, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Light Almond, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- RECEPTACLE GFCI 125VAC 20A 2 LT ALMOND
- Product Catalog Page(s)
Specification Sheet
- CSA C22.2 No. 42/144|cULus Listed|FULs Listed|UL 943/498|UL 94 V-2 Flammability Rated
- Brand: Pass & Seymour LegrandActuator: Control CircuitAmperage Rating: 20Application: Commercial/ResidentialConnection: Back and Side WireCountry of Origin: CNEnvironmental Conditions: 95% Humidity, UL 94 V2Frequency Rating: 60 HzHeight: 4.2Interrupt Rating: 4 to 6 mALength: 1.03Material: ThermoplaticNumber of Poles: 2Operating Temperature: -35°C to +66°CStandard: CSA C22.2 No. 42/144|cULus Listed|FULs Listed|UL 943/498|UL 94 V-2 Flammability Rated, CULUS, UL, cULus, UL Listed, FSUL, cULus, UL Listed, FSULSub Brand: Pass & Seymour, radiantTrip Range: 4 to 6 mATrip Type: .025 Second NominalType: Outlet, Specification Grade Dead-Front 20A Self-Test GFCI ReceptacleVoltage Rating: 125Width: 1.73
